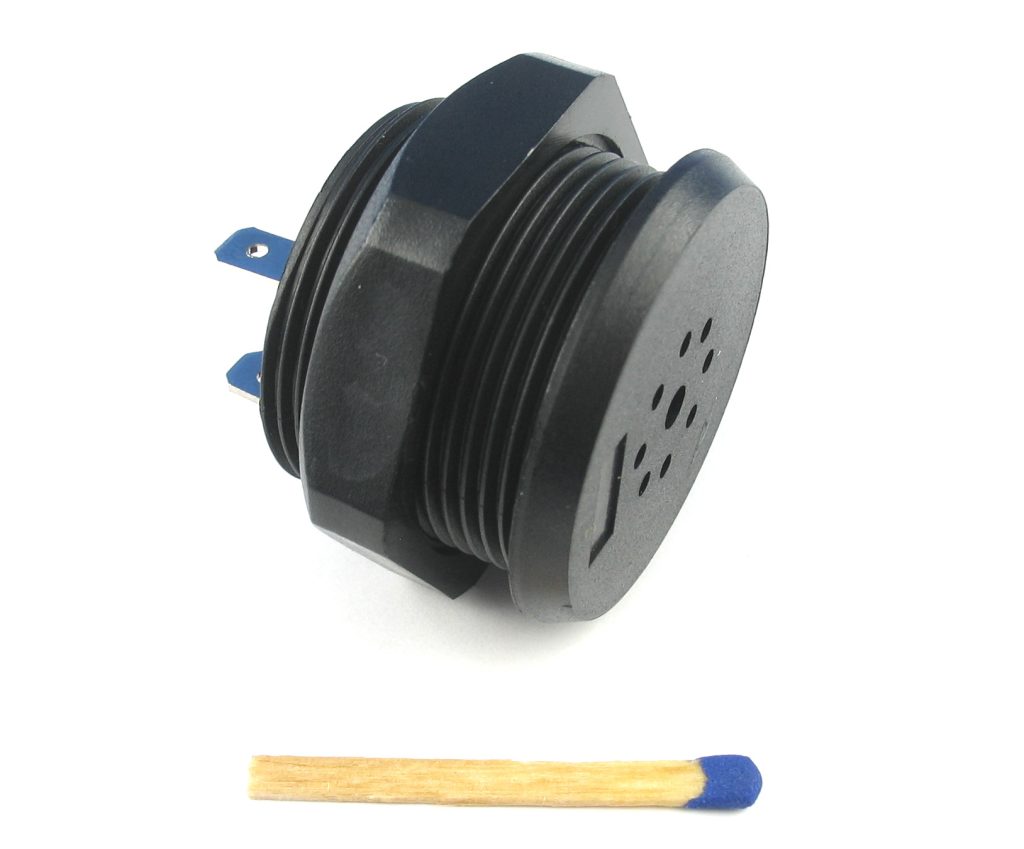

B/C228 BLACK

Dimension
Ø36.3 x 26 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
≥85 dB(A) at 1 m
Tone
Continuous Tone
IP Rating
IP65
Oscillator Frequency
3000 ±500 Hz
Operating Temperature
-35 to +75 °C

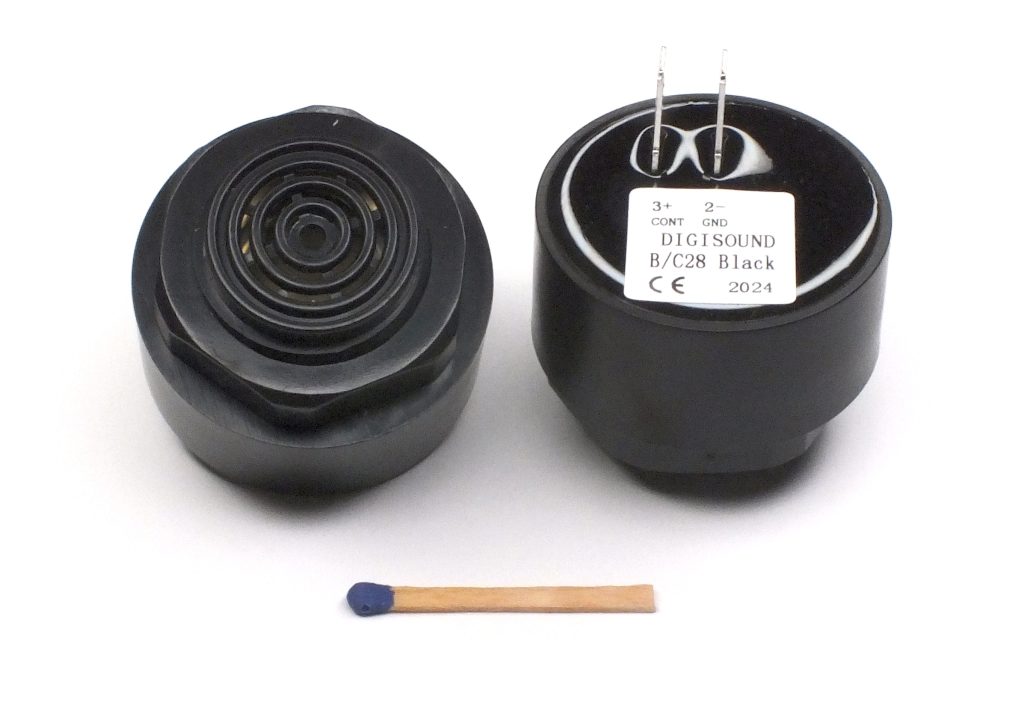

B/C28 BLACK

Dimension
Ø43 x 34 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Continuous Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

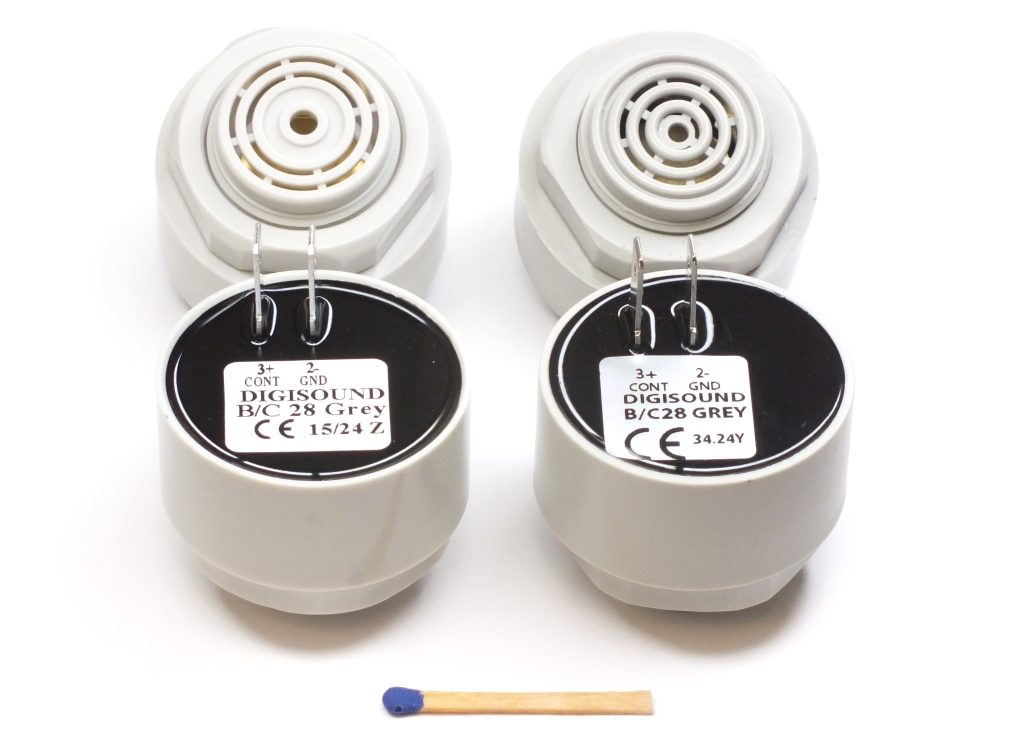

B/C28 GREY

Dimension
Ø43 x 33 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Continuous Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

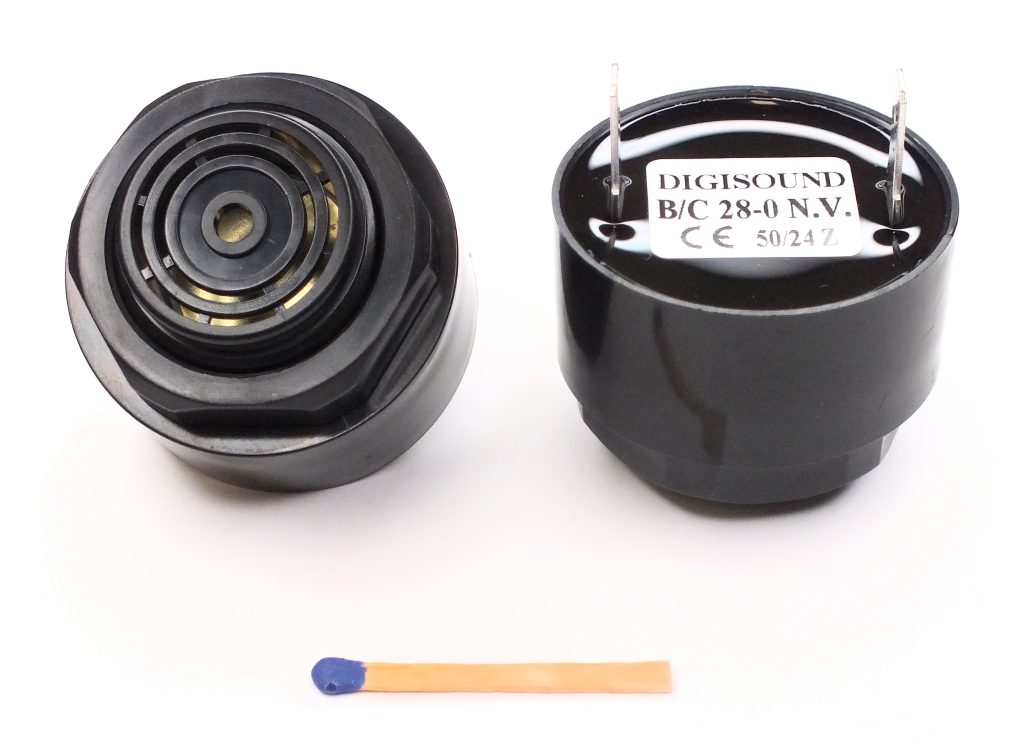

B/C28-0 N.V.Black

Dimension
Ø43 x 33 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Continuous Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-30 to +75 °C

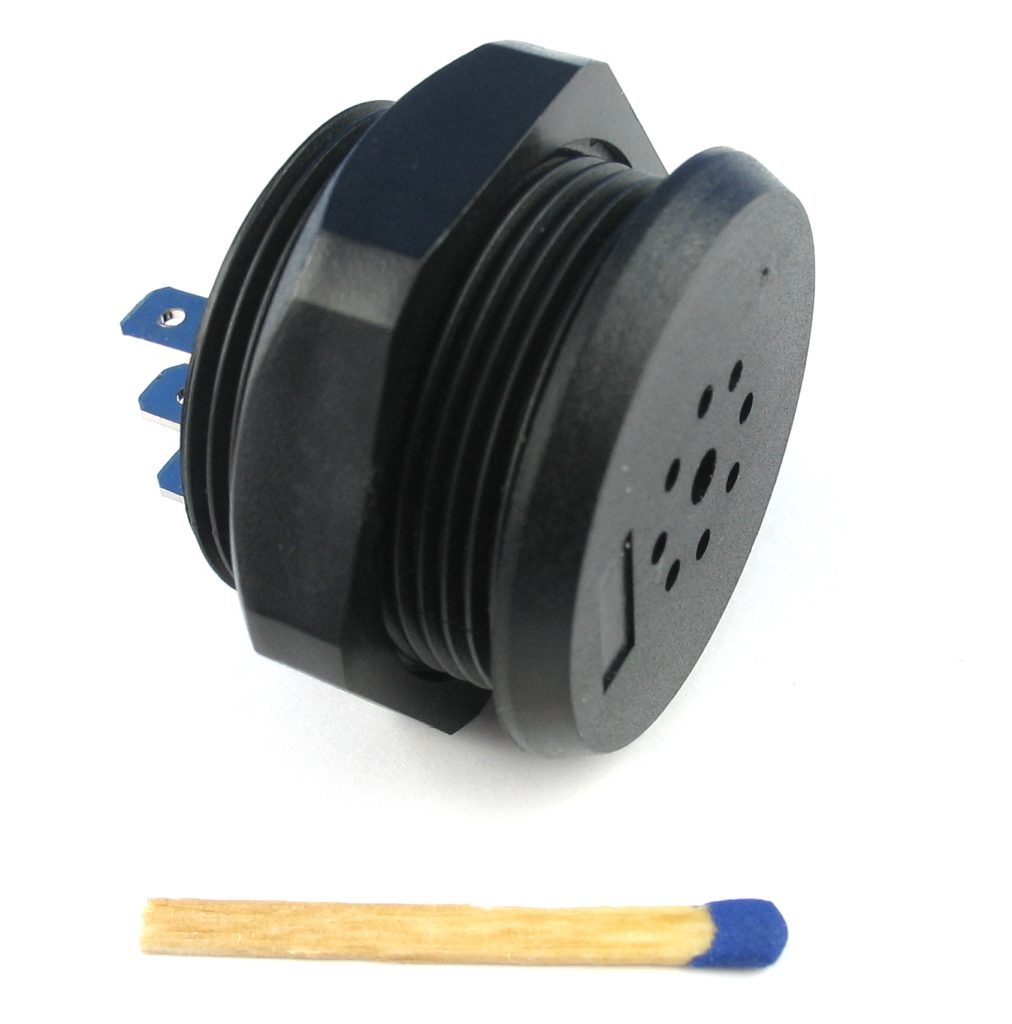

B/CP228 BLACK

Dimension
Ø36.3 x 26 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
≥85 dB(A) at 1 m
Tone
Continuous Tone and
IP Rating
IP65
Oscillator Frequency
3000 ±500 Hz
Operating Temperature
-35 to +75 °C

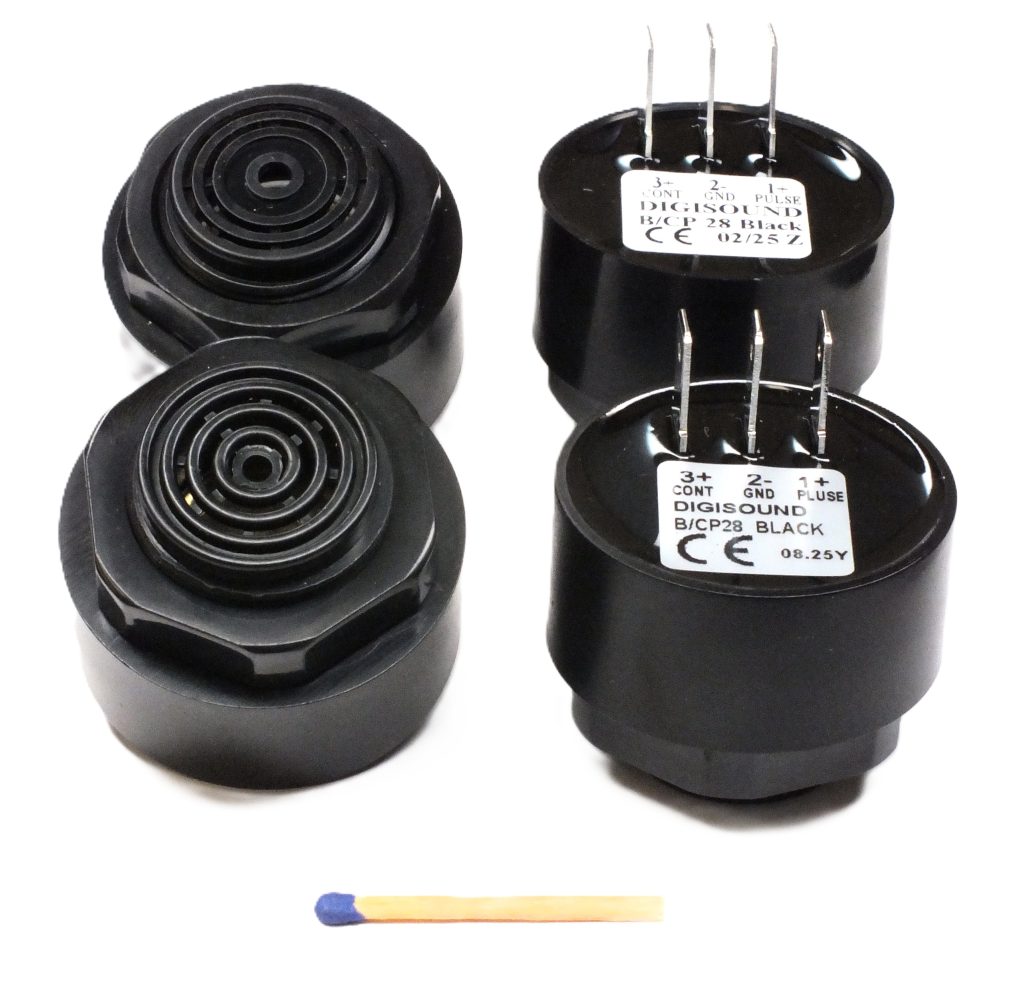

B/CP28 BLACK

Dimension
Ø43 x 33 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Continuous + Pulse Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

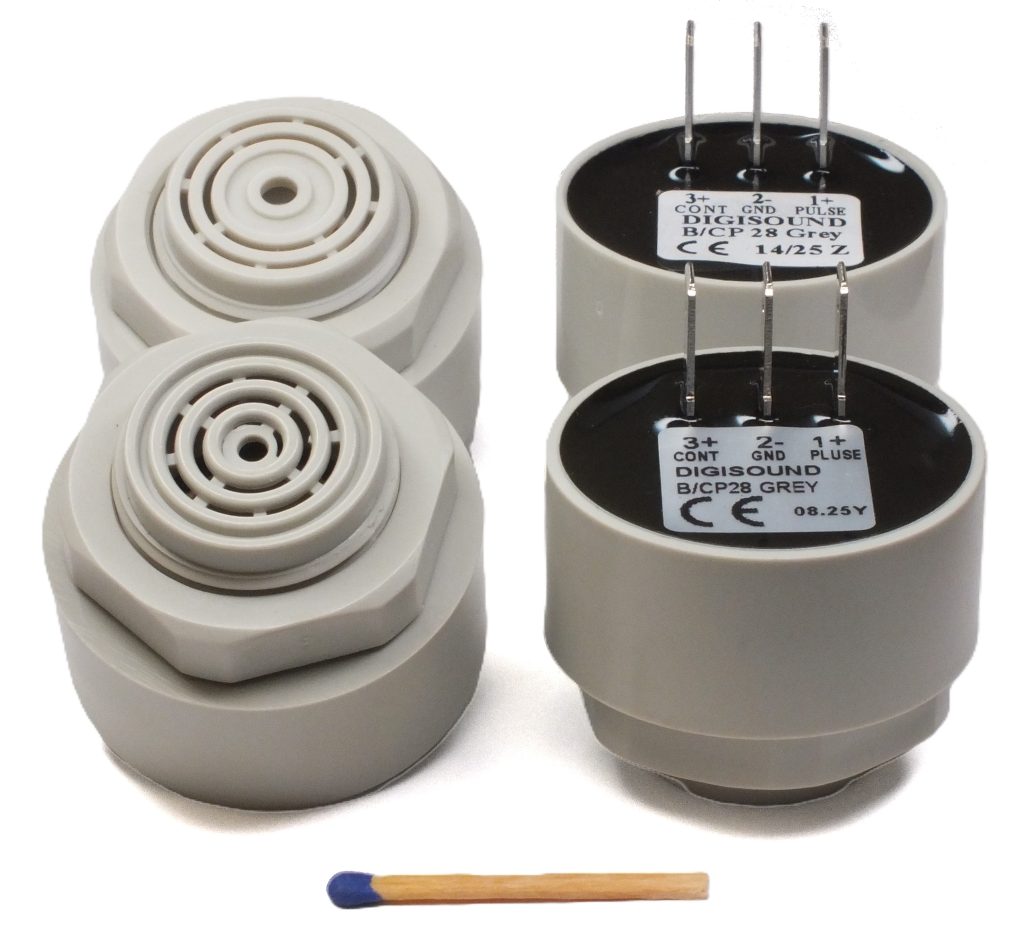

B/CP28 GREY

Dimension
Ø43 x 33 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Continuous + Pulse Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

B/CP28-01 BLACK

Dimension
Ø43 x 33 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Continuous + Pulse Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

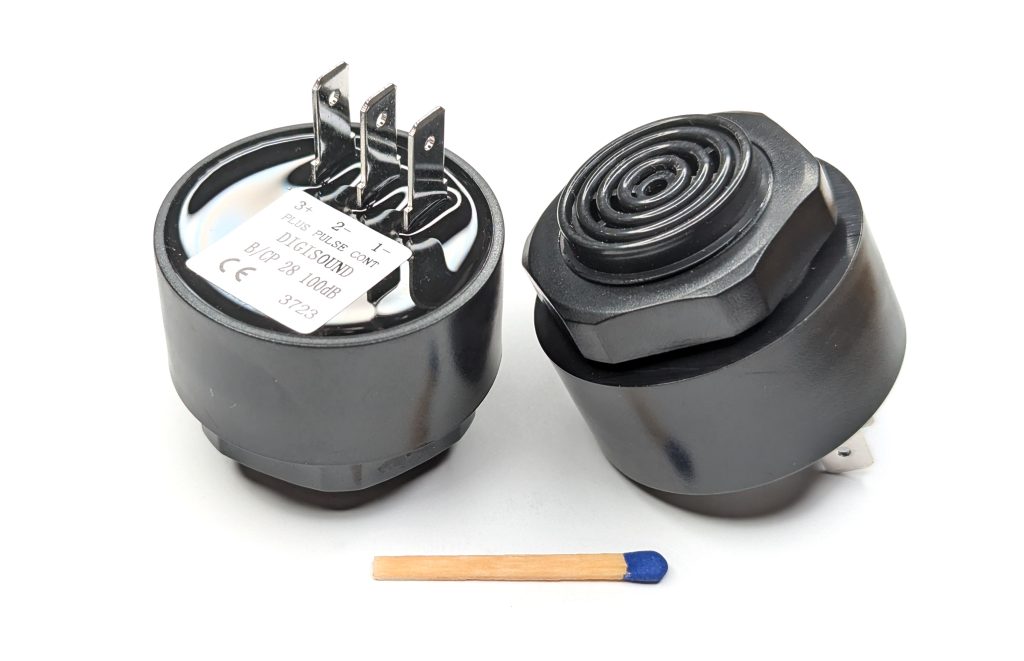

B/CP28/100DB/BLACK

Dimension
Ø43 x 34 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
95 ±3 dB(A) at 1 m
Tone
Continuous + Pulse Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

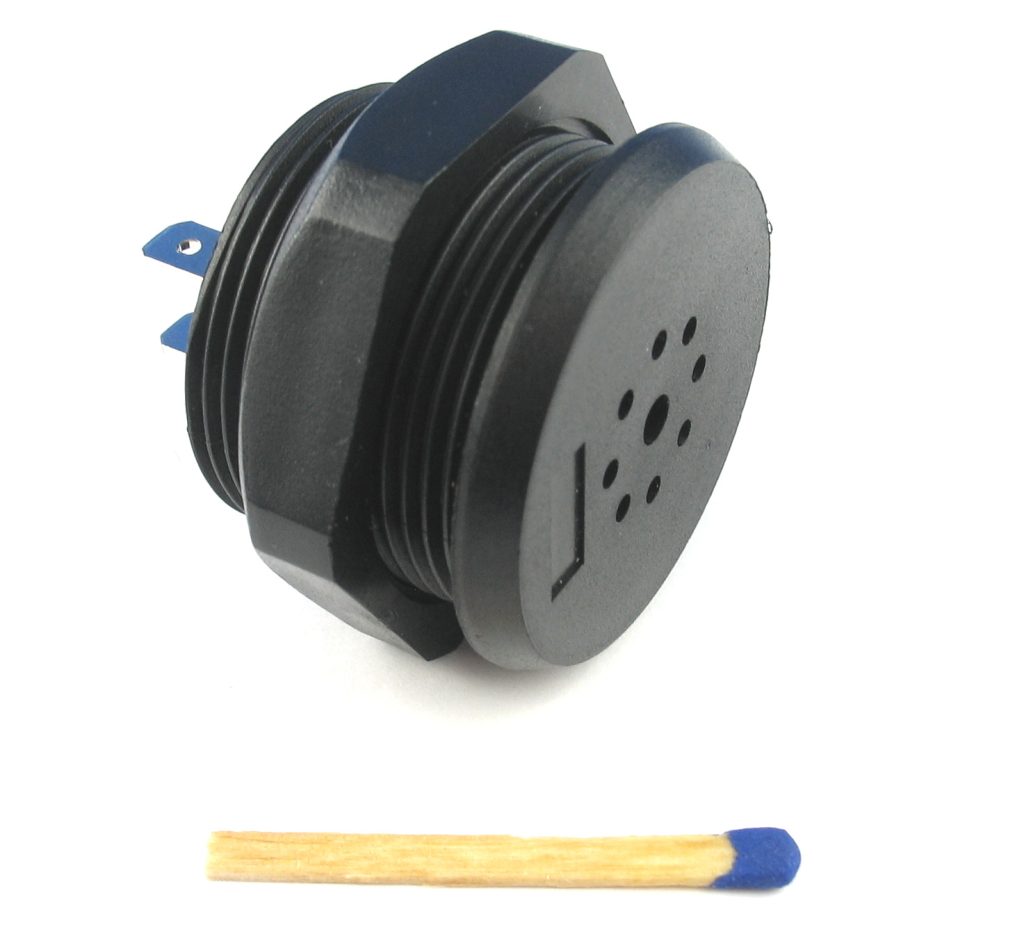

B/P228

Dimension
Ø36.3 x 26 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 VDC
Sound Pressure Level
≥85 dB(A) at 1 m
Tone
Pulse 120 ±20 c/m
IP Rating
IP65
Oscillator Frequency
3000 ±500 Hz
Operating Temperature
-35 to +75 °C

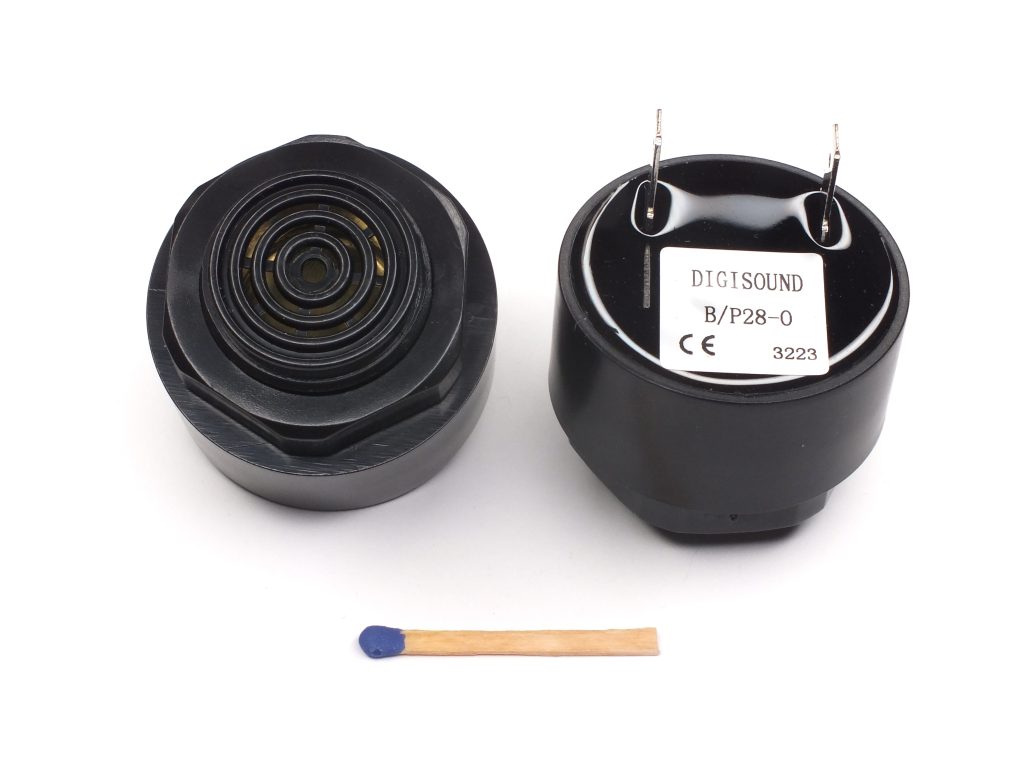

B/P28-0

Dimension
Ø43 x 34 mm
Rated Voltage
12 VDC
Operating Voltage
5 - 28 V AC/DC
Sound Pressure Level
85 ±3 dB(A) at 1 m
Tone
Pulse Tone
IP Rating
IP65
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +75 °C

B/SE 128 Series

Dimension
Ø110 x 100 mm
Rated Voltage
12/24 VDC
Operating Voltage
10 - 28 VDC
Sound Pressure Level
≥88/95 dB(A) at 1 m 90°
Tone
28 Tone
IP Rating
IP54, IP55 and IP 65 depending on version
Operating Temperature
-10 to +55 °C

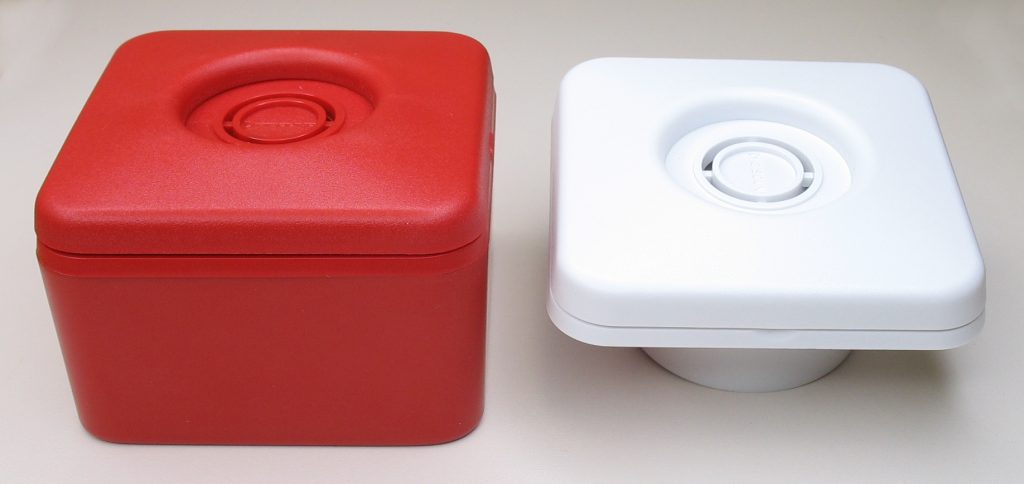

B/SM-28 Series

Dimension
86 x 86 x 44 / 56.4 mm
Rated Voltage
12 / 24 VDC
Operating Voltage
10 - 28 VDC
Sound Pressure Level
≥88 / ≥94 dB(A) at 1 m / Tone 26
Operating Temperature
-40 to +80 °C

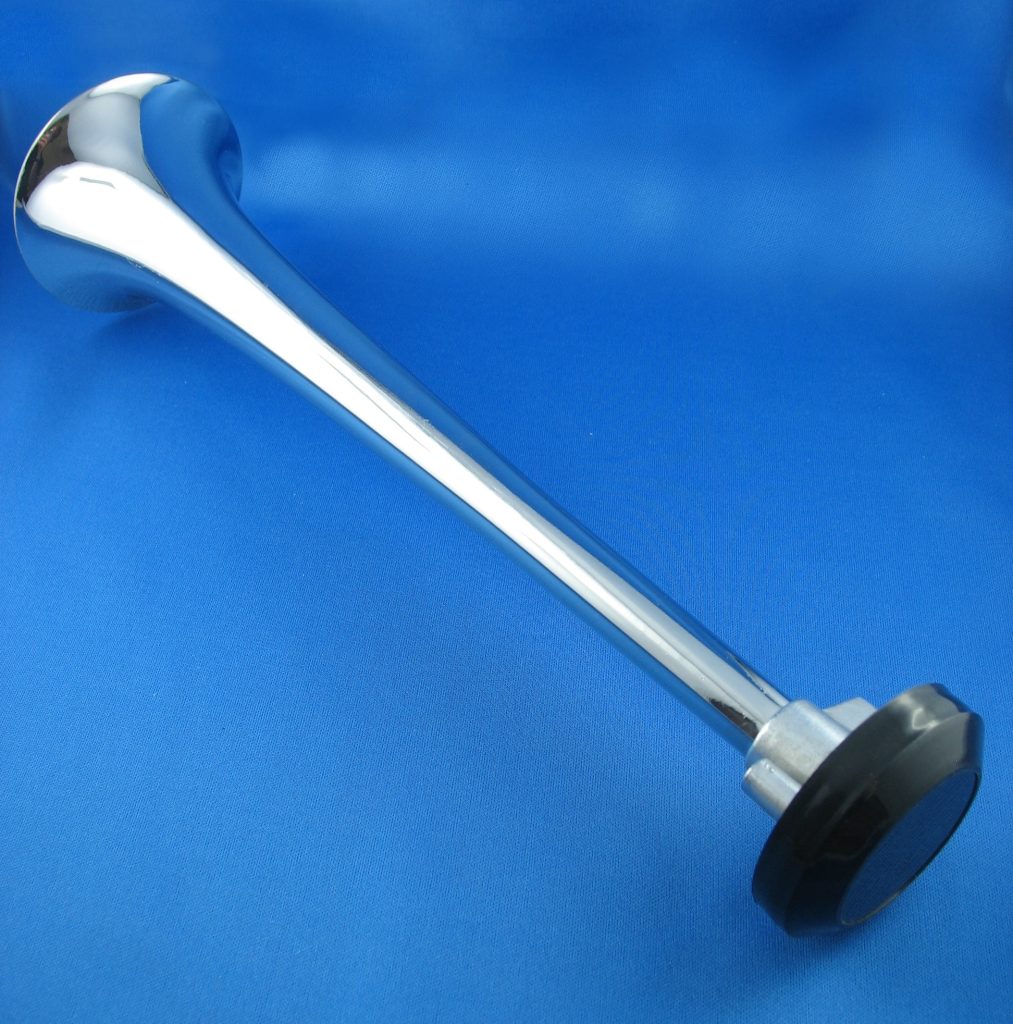

F-AH5831

Dimension
Ø83 x ca. 310 mm
Operating Temperature
-40 to +85 °C

F-AVS18-28V-IP54-W4K

Dimension
123 x 73 x 45 mm
Rated Voltage
24 VDC
Operating Voltage
18 - 28 VDC
Sound Pressure Level
100 ±3 dB(A) at 1 m
Tone
Siren Tone
Operating Temperature
-15 to +65 °C

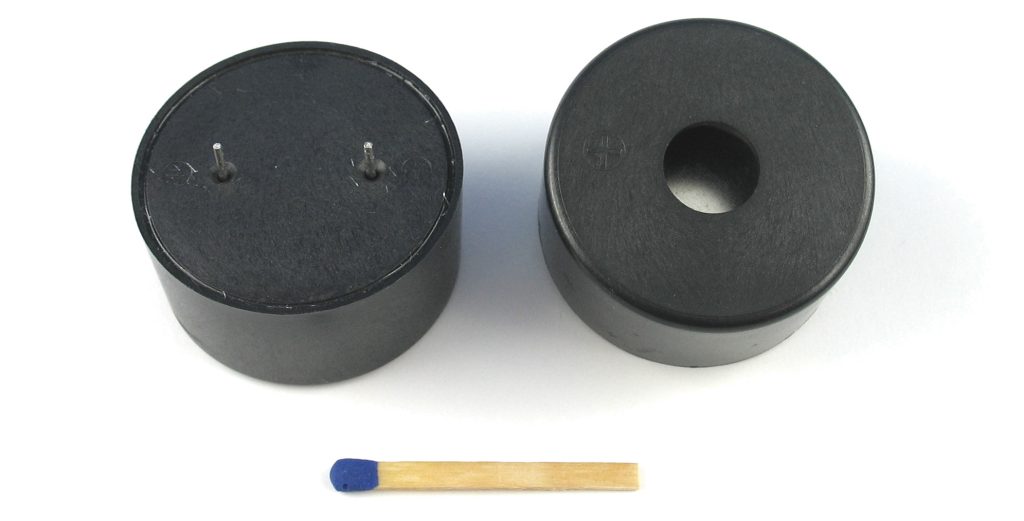

F-B-C40-105

Dimension
Ø40 x 20 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥105 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3200 ±500 Hz
Operating Temperature
-20 to +70 °C

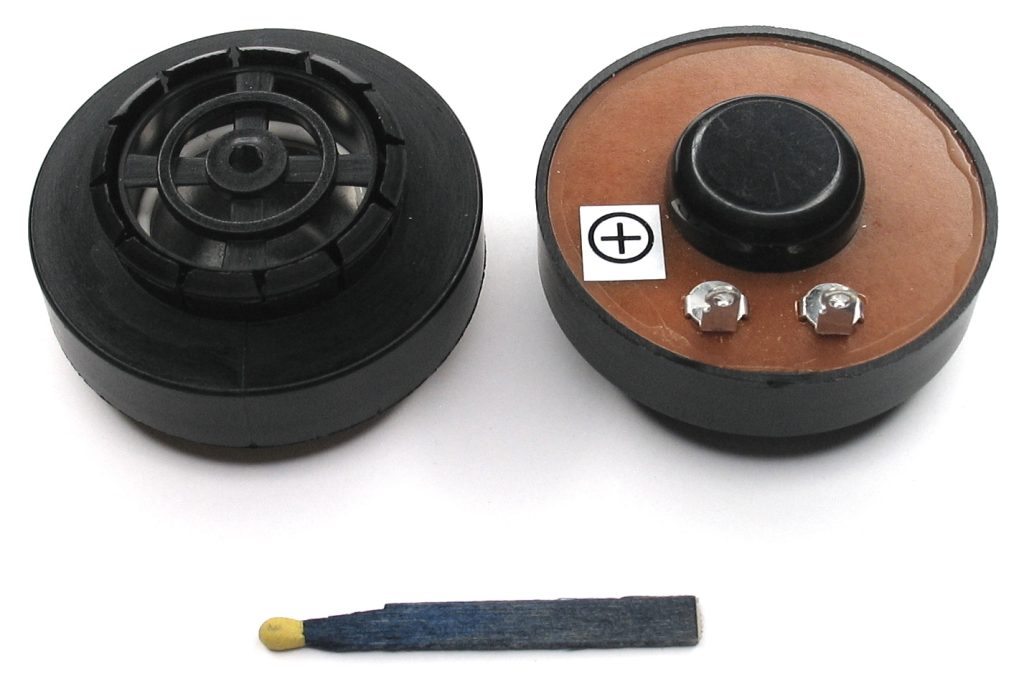

F-B-C42-75

Dimension
Ø42 x 20.5 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 15 VDC
Sound Pressure Level
≥75 dB(A) at 25 cm
Tone
Continuous Tone
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +60 °C

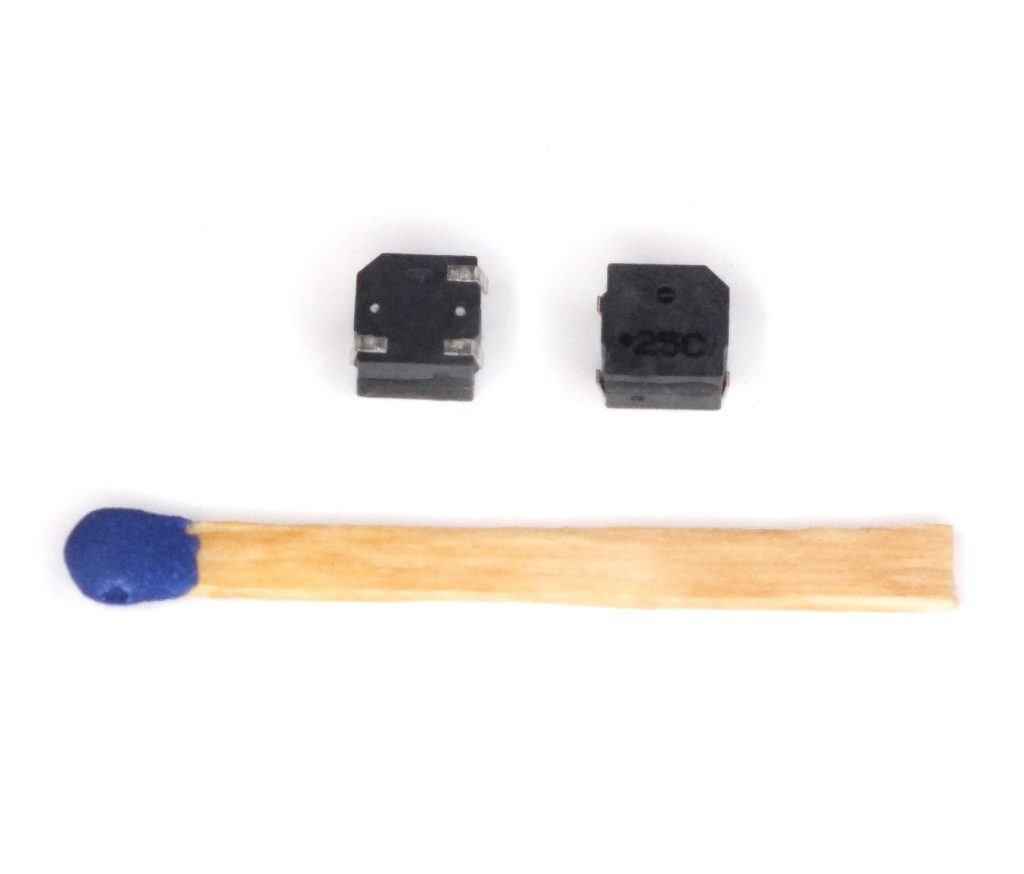

F-B-M0503ESB

Dimension
5 x 5 x 3 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 4 Vo-p
Sound Pressure Level
≥78 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-30 to +70 °C
Resistance
12 ±3 Ω

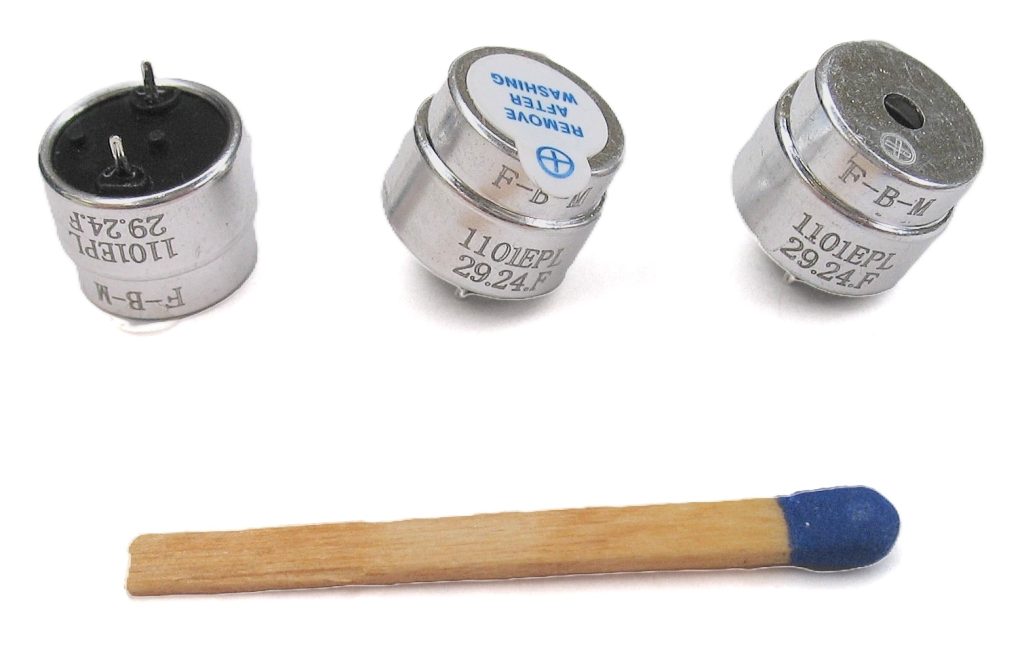

F-B-M1101EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1-2 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
16 ±4 Ω

F-B-M1106EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
5-7 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
42 ±4 Ω

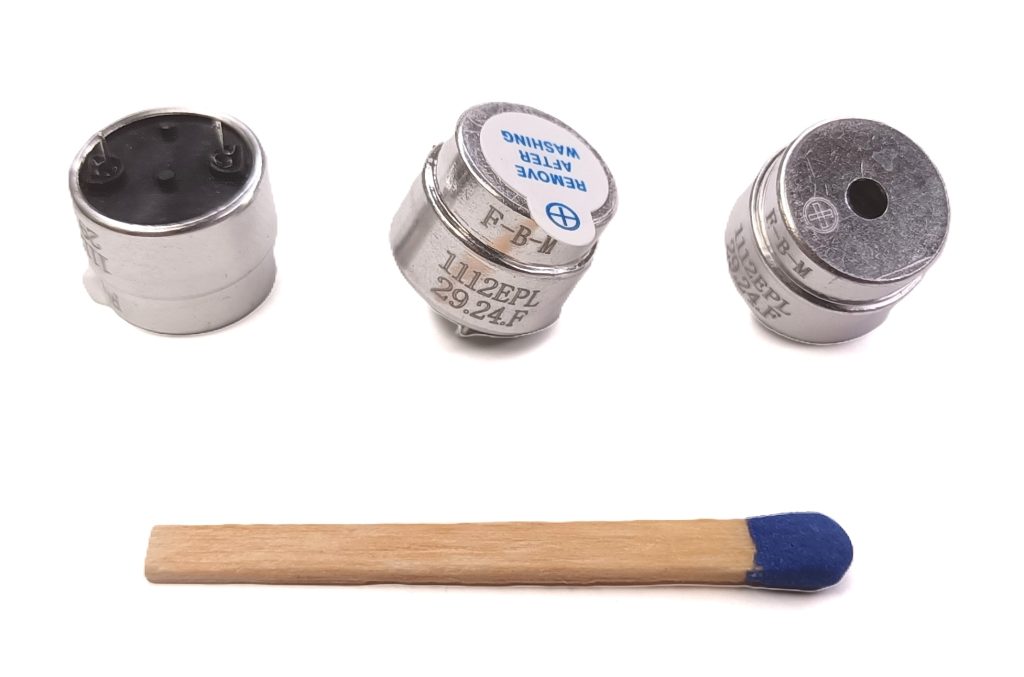

F-B-M1112EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 15 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±14 Ω

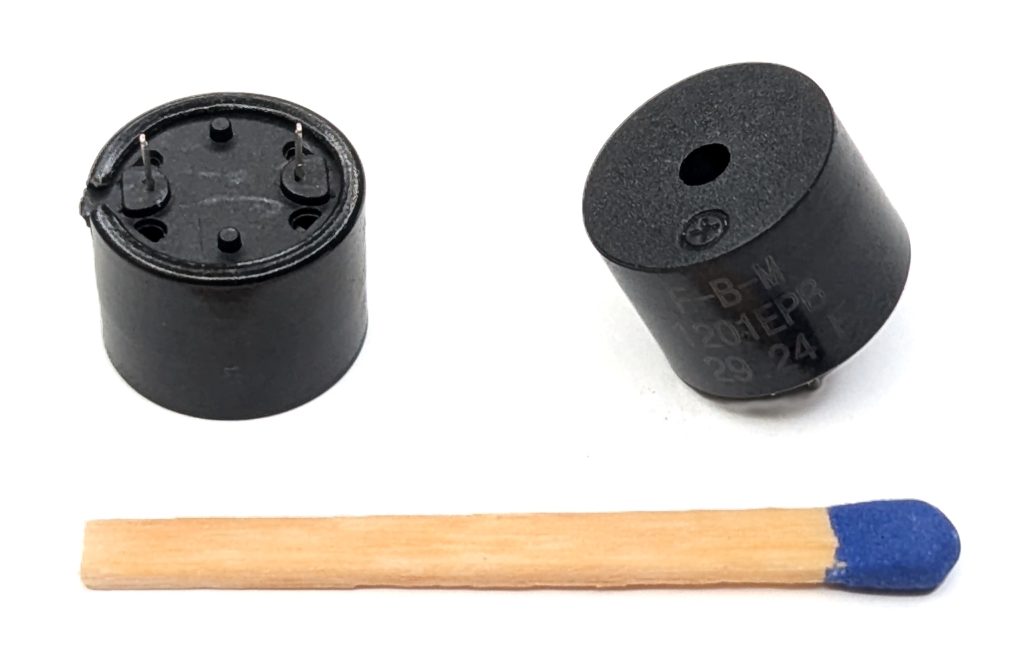

F-B-M1201EPB

Dimension
Ø12 x 9 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1-2 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
16 ±4 Ω

F-B-M1206EPB

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
5-7 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
42 ±4 Ω

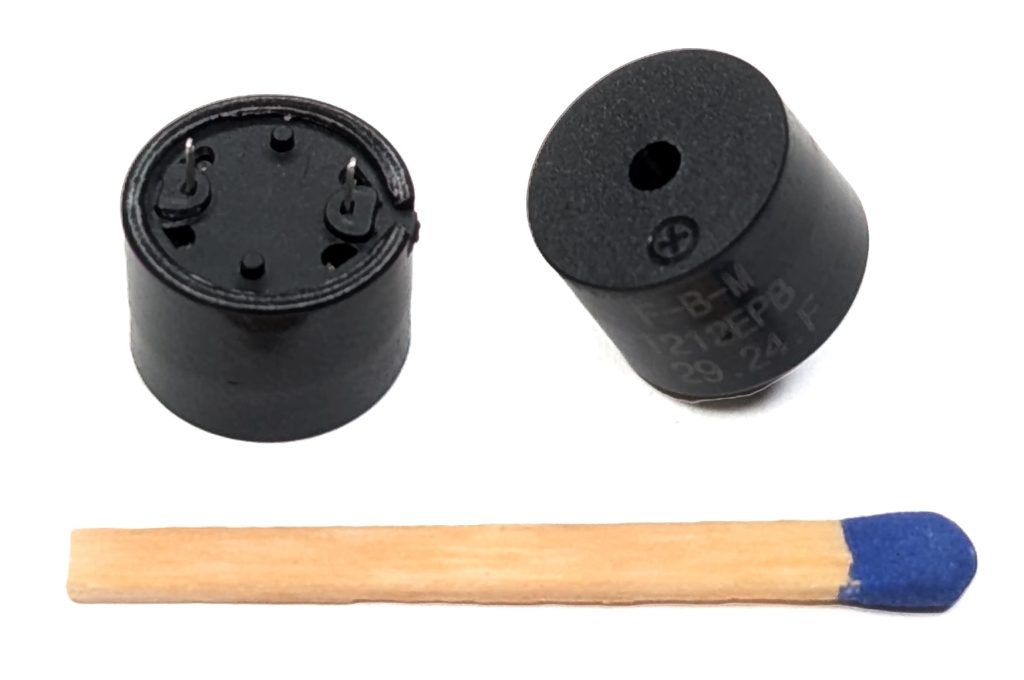

F-B-M1212EPB

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 15 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±14 Ω

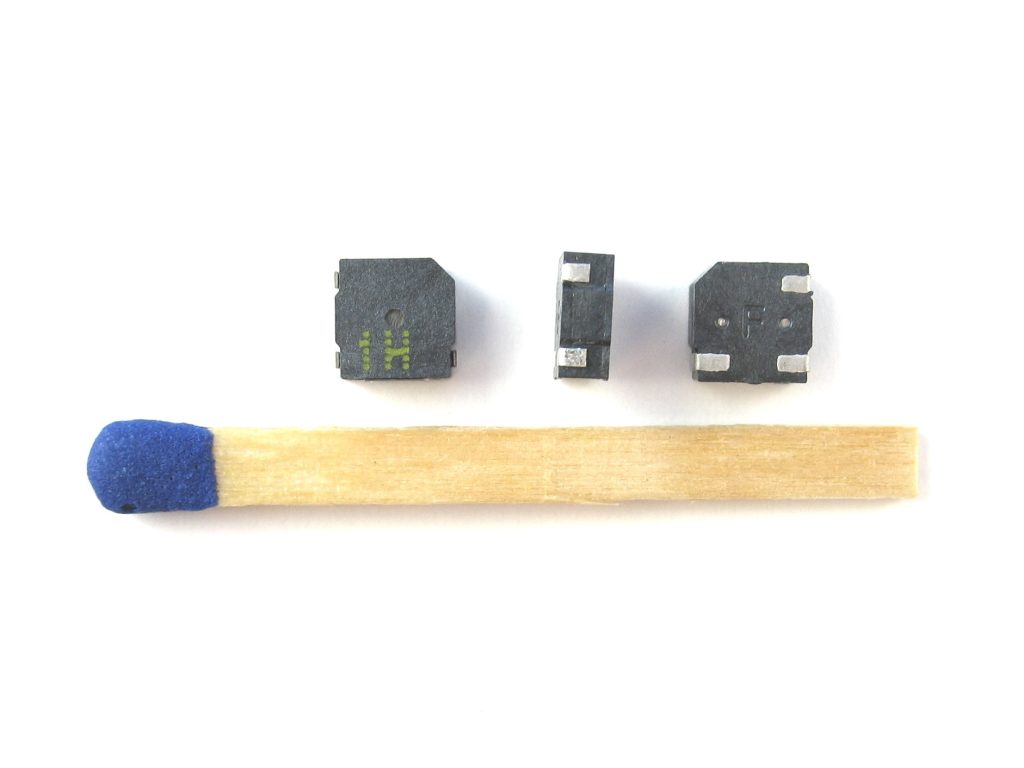

F-B-M503ESB

Dimension
5.5 x 5 x 2 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-40 to +105 °C
Resistance
12 ±2 Ω

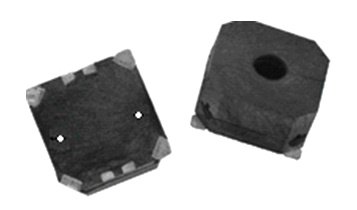

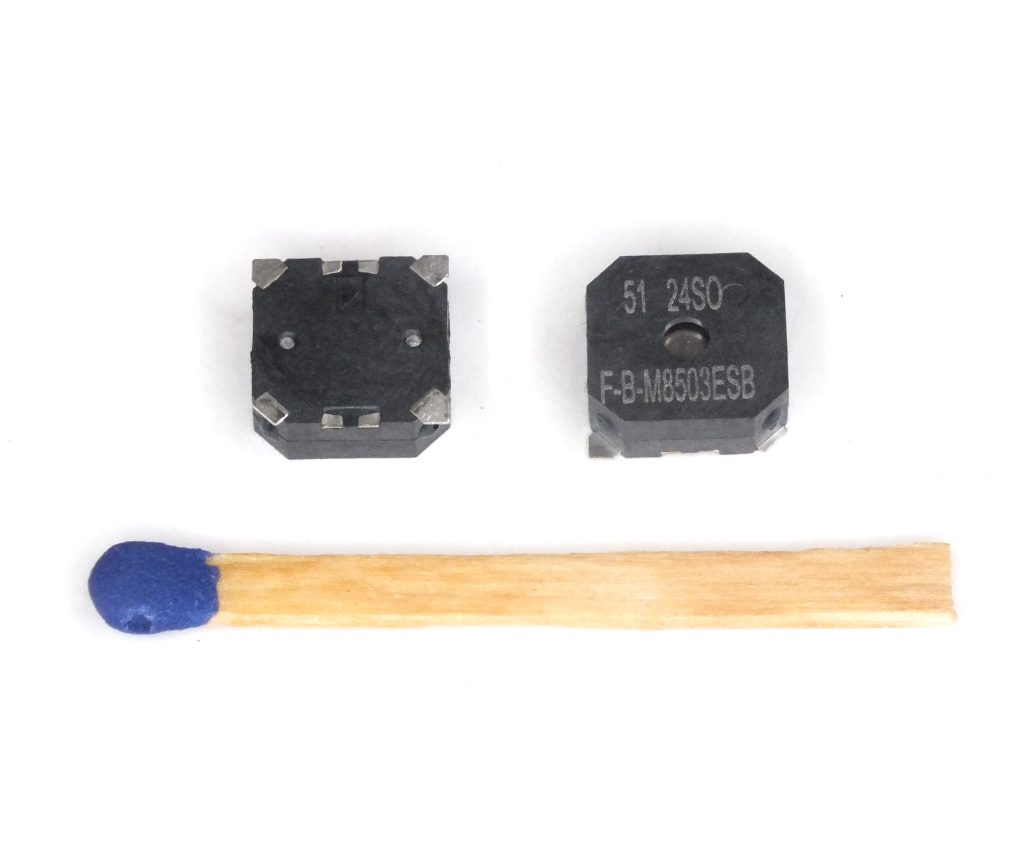

F-B-M8503ESB

Dimension
8.5 x 8.5 x 3 mm
Rated Voltage
3 Vo-p
Operating Voltage
1.5 - 4.5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2670 Hz
Operating Temperature
-30 to +70 °C
Resistance
20 ±3 Ω

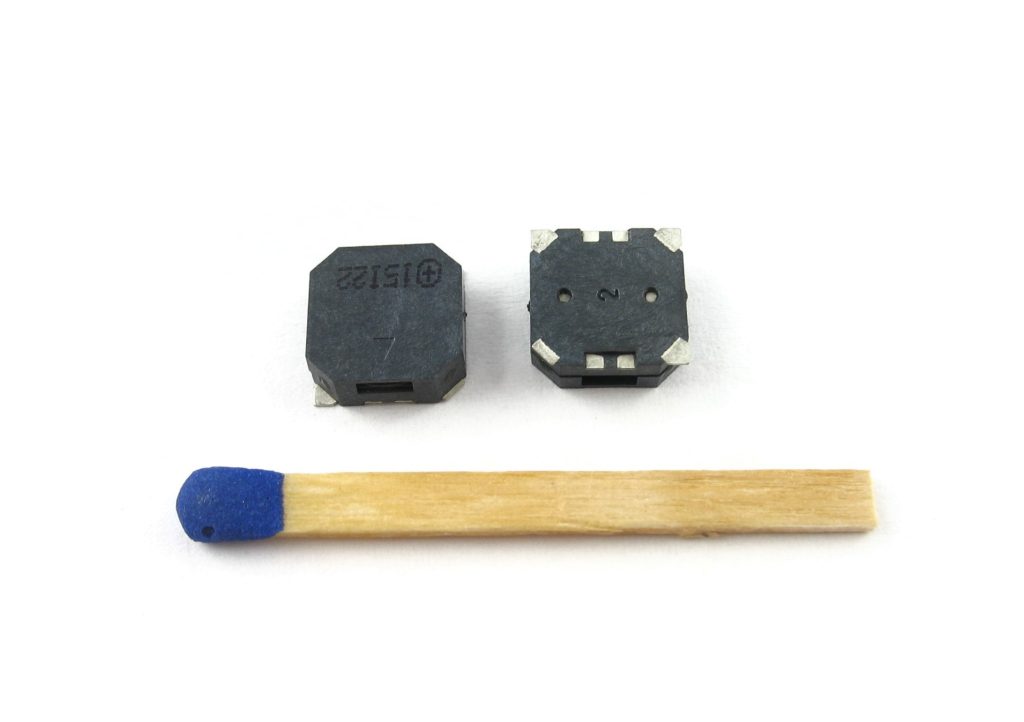

F-B-M8505ESB

Dimension
8.5 x 8.5 x 3 mm
Rated Voltage
5 V
Operating Voltage
3 - 7 V
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-20 to +70 °C
Resistance
32 ±5 Ω

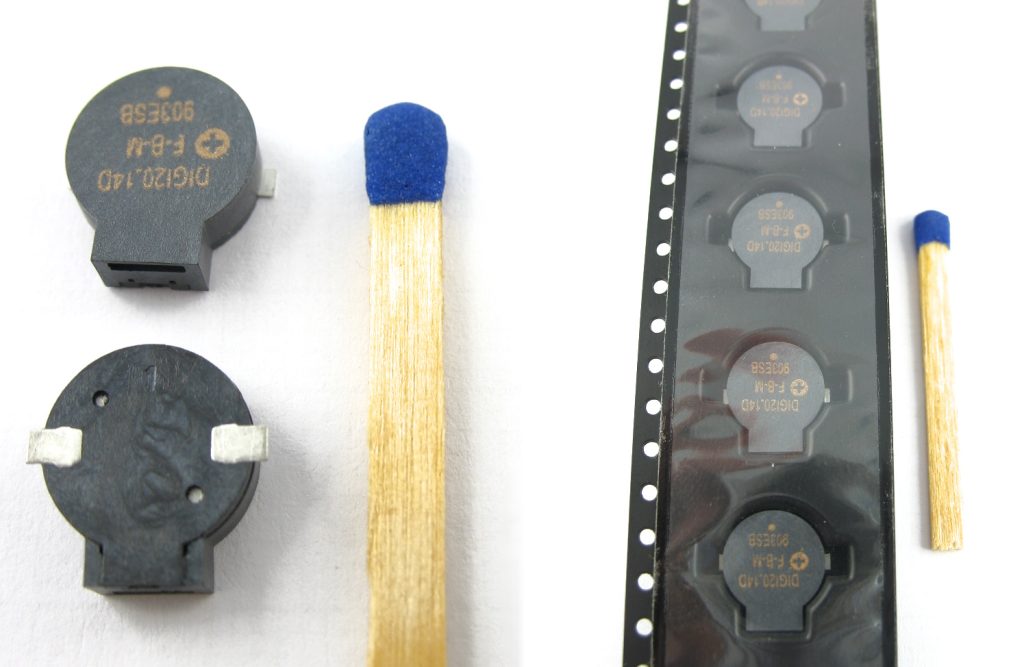

F-B-M903ESB

Dimension
Ø9.2 x 10.5 x 10.6 x 3.2 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥92 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-40 to +105 °C
Resistance
16 ±3 Ω

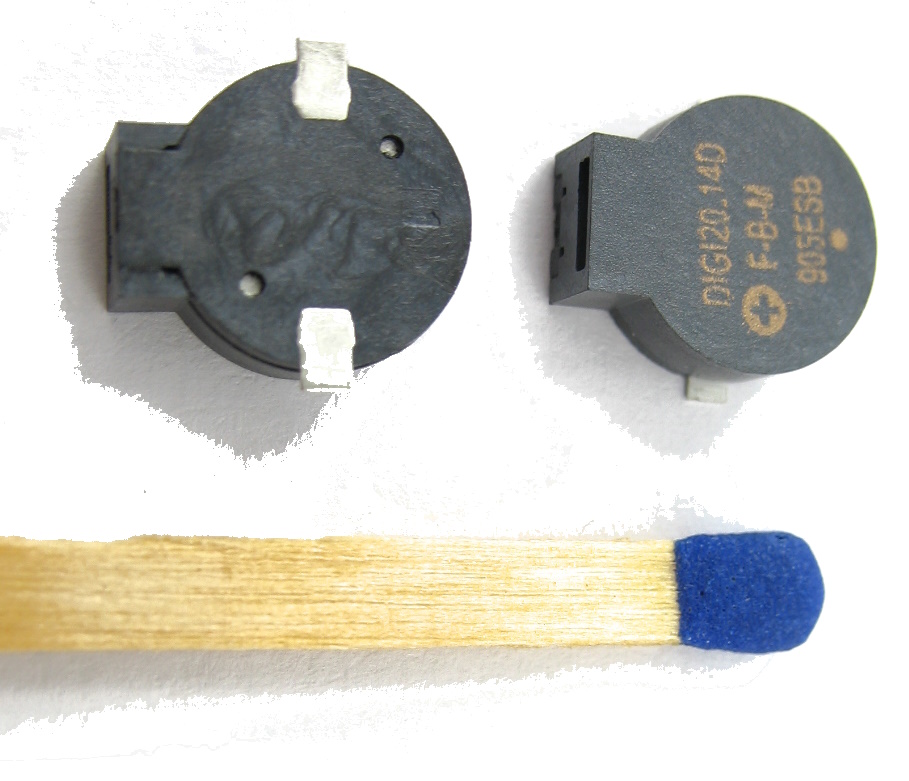

F-B-M905ESB

Dimension
Ø9.2 x 10.5 x 10.6 x 3.2 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥92 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-40 to +105 °C
Resistance
32 ±5 Ω

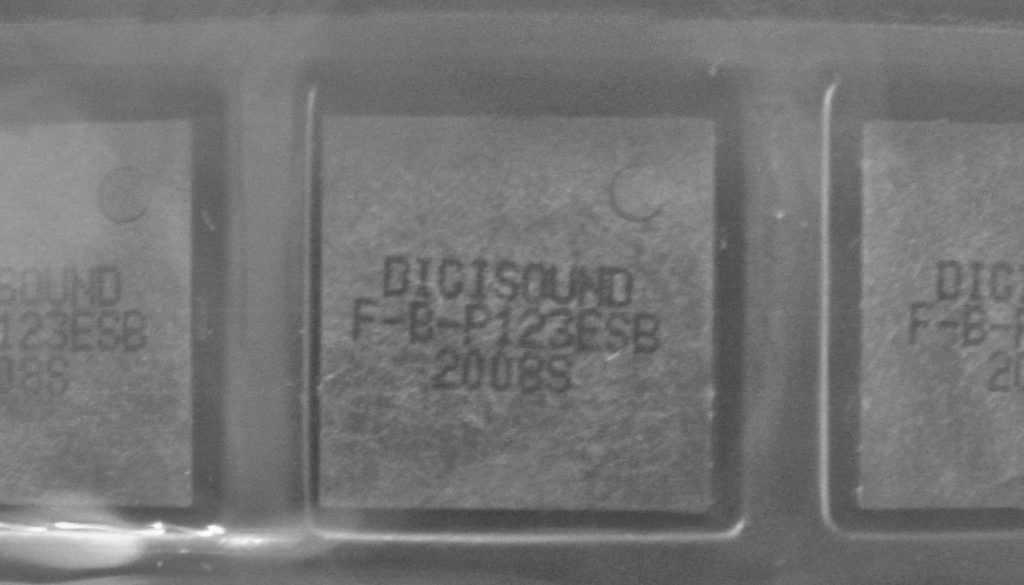

F-B-P123ESB

Dimension
12 x 12 x 3 mm
Rated Voltage
3 Vpp
Operating Voltage
≤25 Vpp
Sound Pressure Level
≥75 dB(A) at 10 cm
Resonance Frequency (F0)
4,000 ±500 Hz
Operating Temperature
-30 to +85 °C

F-B-P1303EPB-02

Dimension
Ø12.8 x 6.3 mm
Rated Voltage
3 Vpp
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-20 to +105 °C
Max. Input Voltage
30 Vpp

F-B-P1405ISB

Dimension
14.3 x 14.3 x 7.4 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 14 VDC
Sound Pressure Level
≥80 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
4000 ±500 Hz
Operating Temperature
-40 to 85 °C

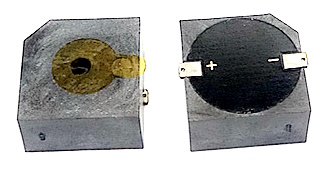

F-B-P1405ISL-KT

Dimension
14.3 x 14.3 x 7.4 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 14 VDC
Sound Pressure Level
≥80 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
4000 ±500 Hz
Operating Temperature
-40 to 85 °C

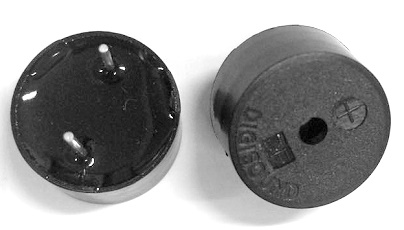

F-B-P1412IPL

Dimension
Ø13.8 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 16 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
4000 ±500 Hz
Operating Temperature
-40 to +85 °C

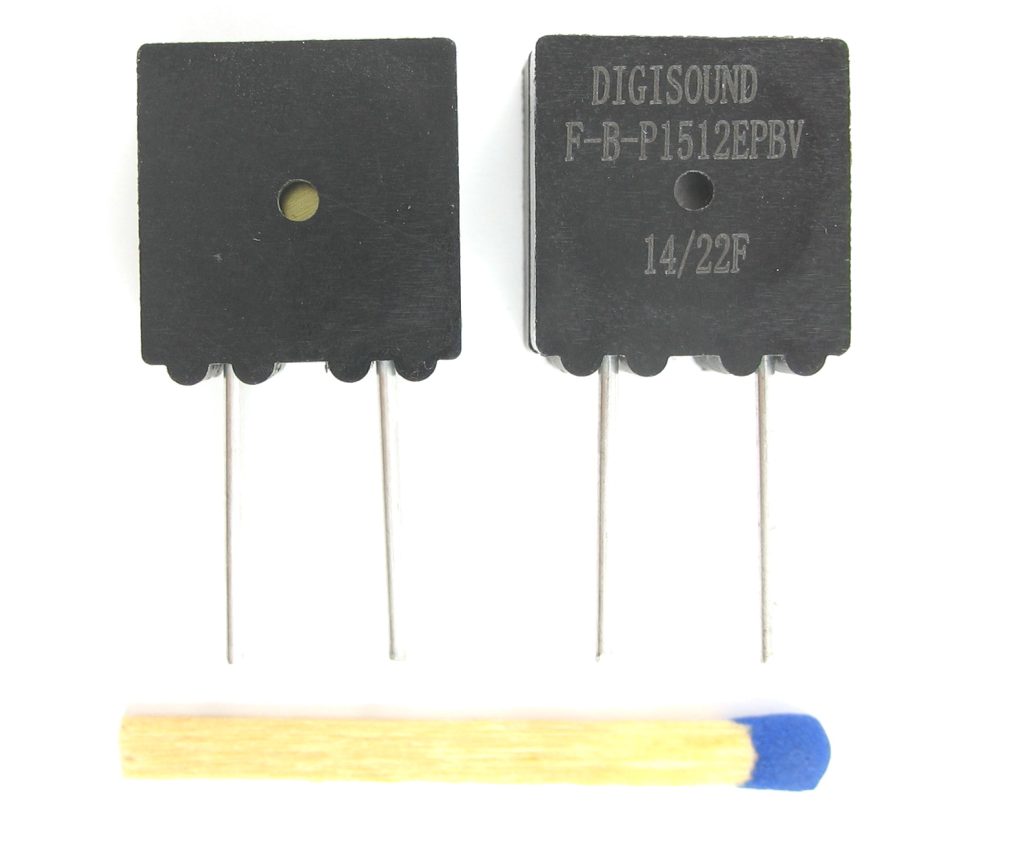

F-B-P1512EPBV

Dimension
15 x 15 x 8.5 mm
Rated Voltage
12 Vpp
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
400 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
25 Vpp

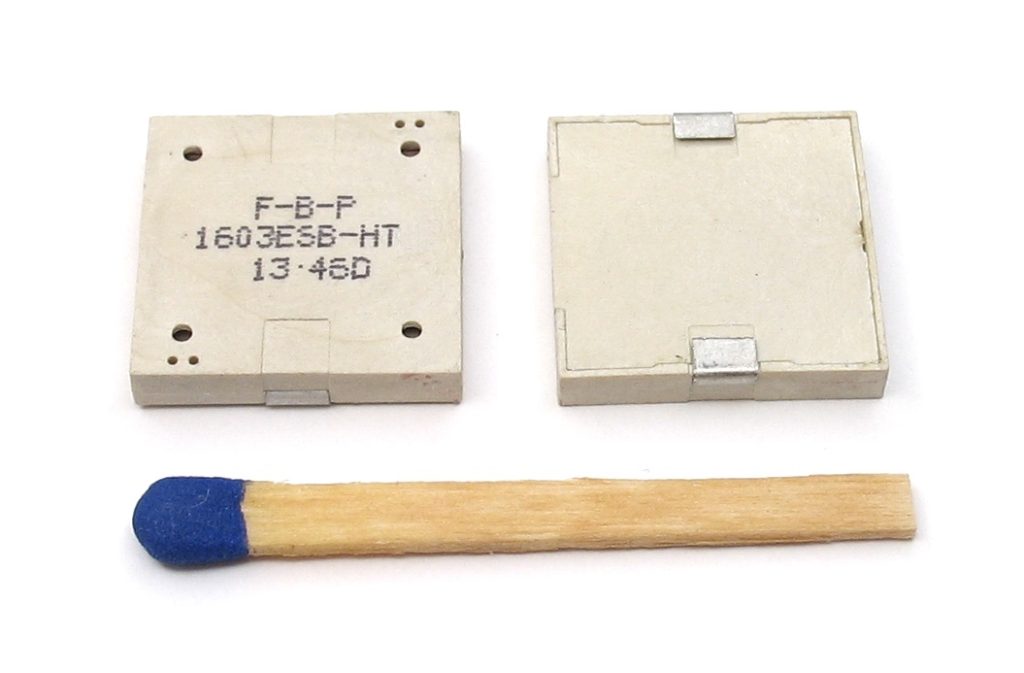

F-B-P1603ESB-HT

Dimension
16.5 x 16 x 2.5 mm
Rated Voltage
3 Vpp
Sound Pressure Level
≥75 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-40 to +120 °C

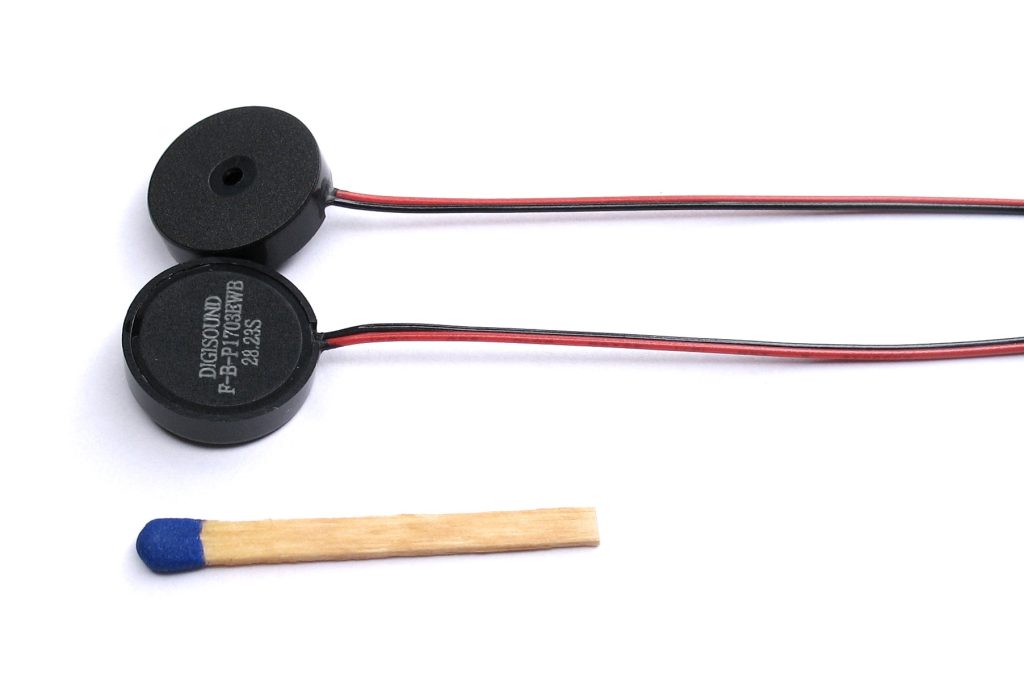

F-B-P1703EWB-100

Dimension
Ø16,5 x 4 mm
Rated Voltage
3 Vpp
Sound Pressure Level
≥78 dB(A) at 10 cm, 3 Vpp
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
30 Vpp

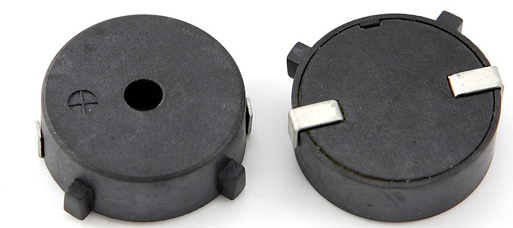

F-B-P1705ESB

Dimension
Ø17 x 6 mm
Rated Voltage
5 Vpp
Operating Voltage
1 to 30 Vpp
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
4,000 ±500 Hz
Operating Temperature
-30 to +85 °C

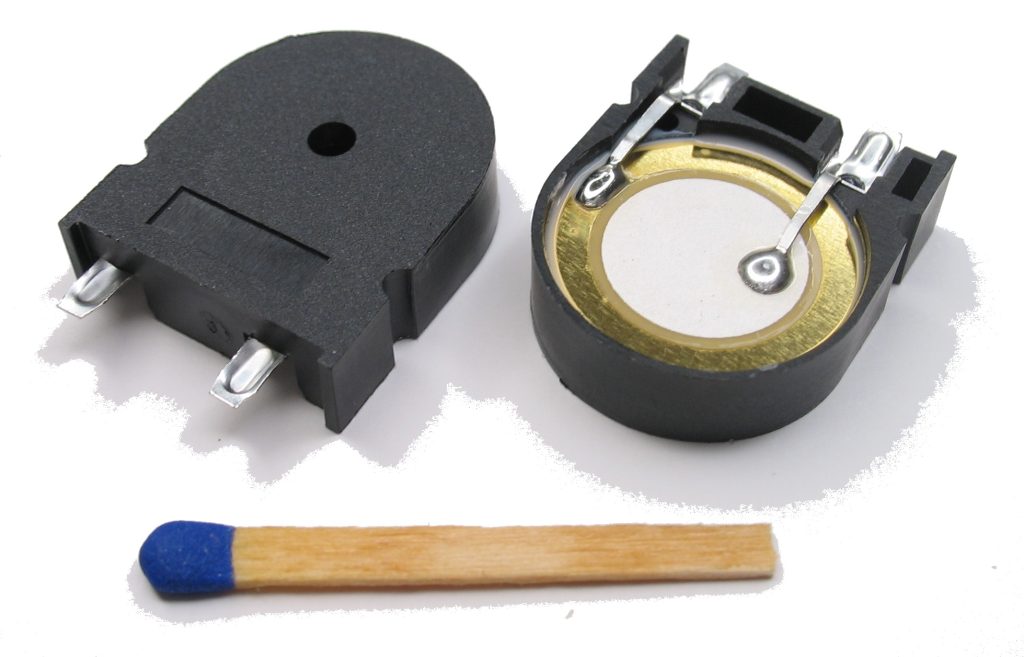

F-B-P2209EPB

Dimension
22 x 7 x 26.5 mm
Rated Voltage
9 Vpp
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2000 Hz
Operating Temperature
-30 to +85 °C
Max. Input Voltage
30 Vpp

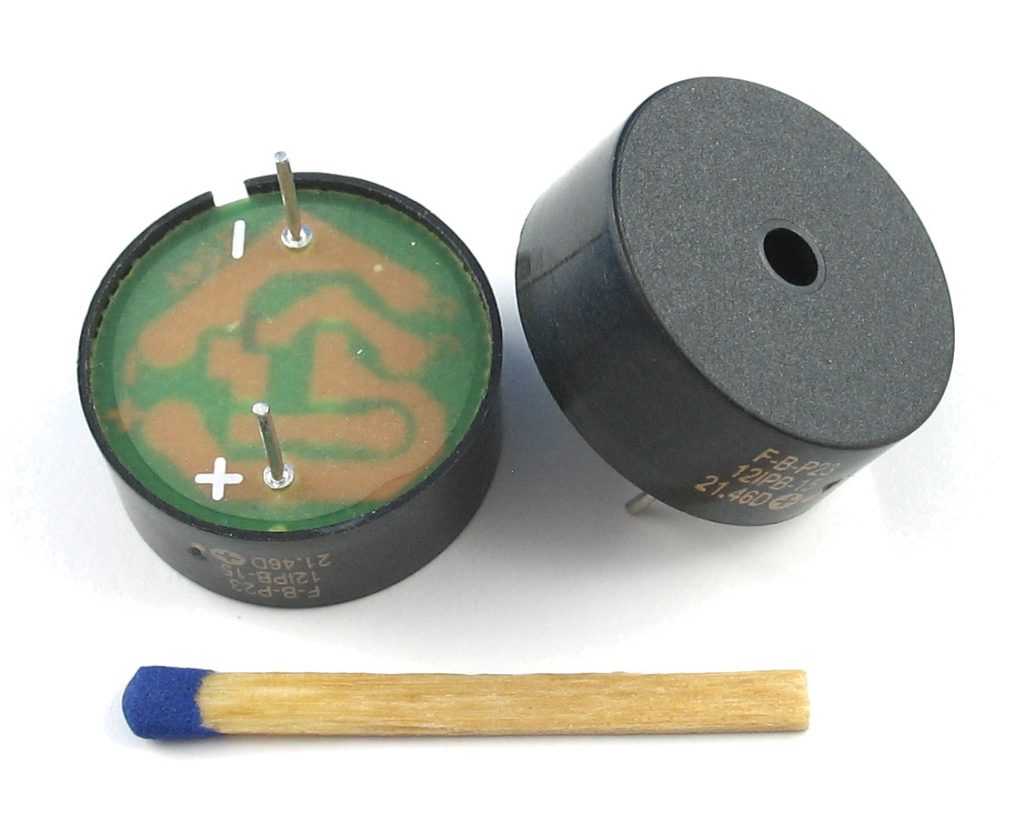

F-B-P2312IPB-15

Dimension
Ø23.2 x 9.2 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3400 ±500 Hz
Operating Temperature
-30 to +70 °C

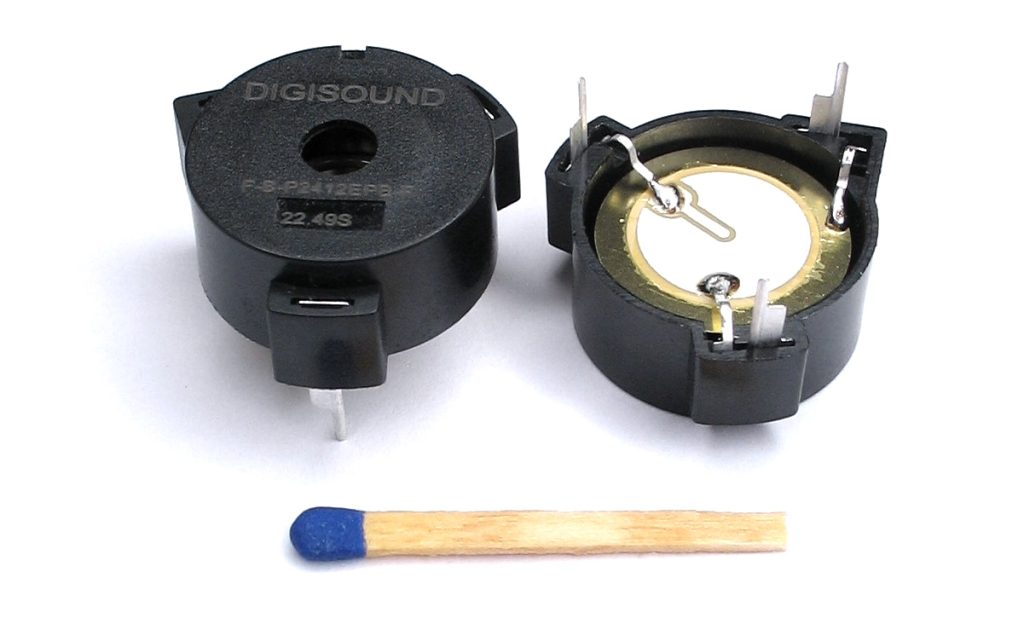

F-B-P2412EPB-F

Dimension
Ø28.4 x 11 mm
Rated Voltage
12 VDC
Sound Pressure Level
≥90 dB(A) at 30 cm
Resonance Frequency (F0)
3800 ±500 Hz
Operating Temperature
-40 to +85 °C

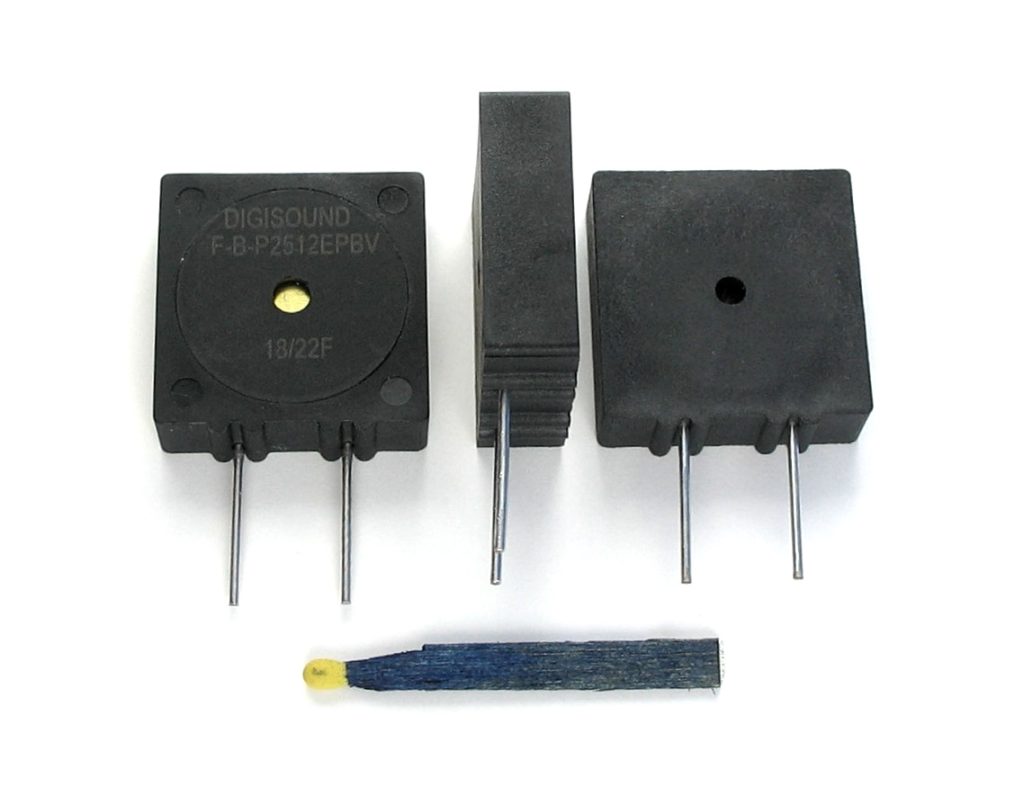

F-B-P2512EPBV

Dimension
25 x 25 x 8 mm
Rated Voltage
12 Vpp
Sound Pressure Level
≥79 dB(A) at 10 cm
Resonance Frequency (F0)
400 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
25 Vpp

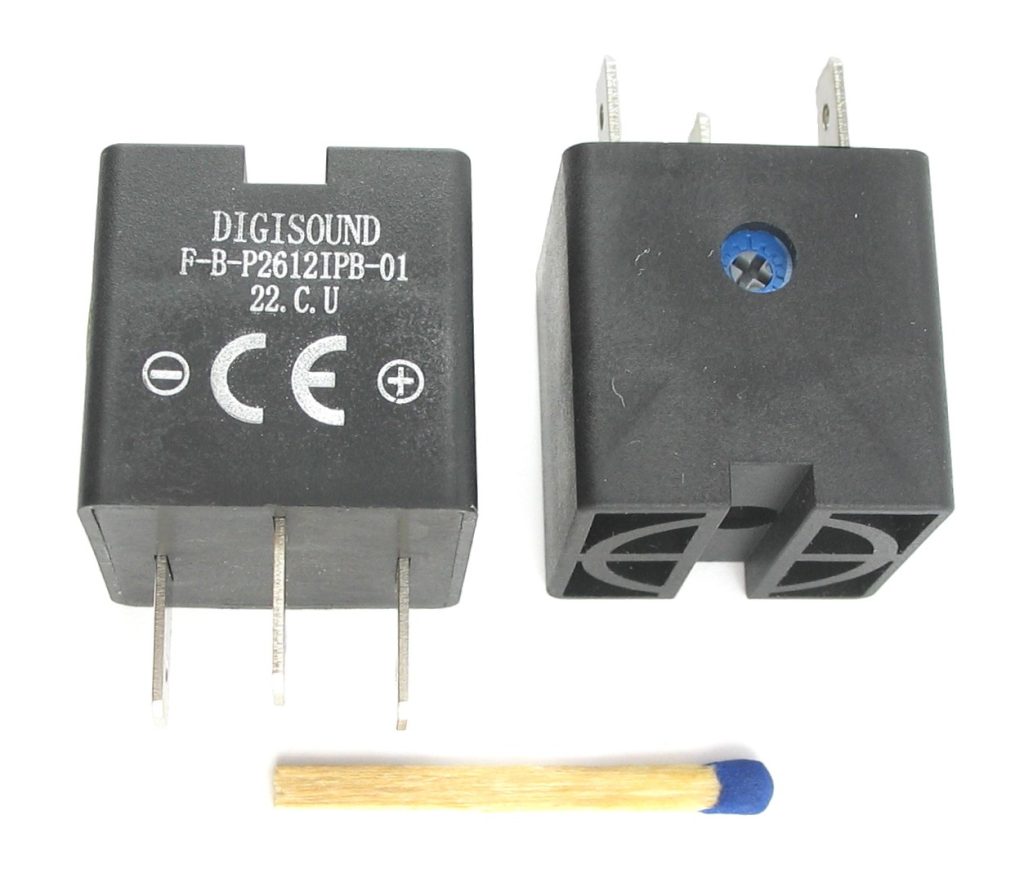

F-B-P2612IPB-01

Dimension
25.9 x 25.9 x 25.9 mm
Rated Voltage
12 VDC
Operating Voltage
4 - 16 VDC
Sound Pressure Level
≥92 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3300 ±500 Hz
Operating Temperature
-20 to +70 °C

F-B-P2612IPB-03

Dimension
25.9 x 25.9 x 25.9 mm
Rated Voltage
12 VDC
Operating Voltage
4 - 16 VDC
Sound Pressure Level
≥92 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3300 ±500 Hz
Operating Temperature
-20 to +70 °C

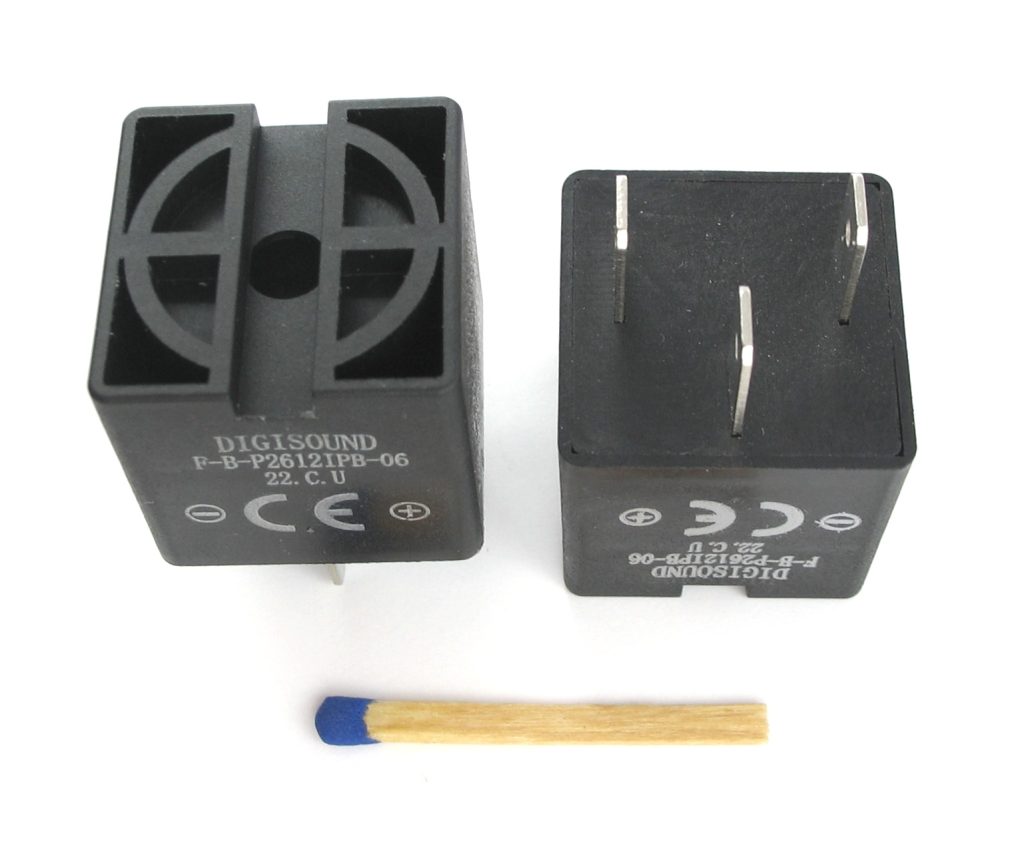

F-B-P2612IPB-06

Dimension
25.9 x 25.9 x 25.9 mm
Rated Voltage
24 VDC
Operating Voltage
9 - 30 VDC
Sound Pressure Level
≥103 dB(A) at 30 cm
Tone
Pulse Tone
Oscillator Frequency
3300 ±500 Hz
Operating Temperature
-20 to +70 °C

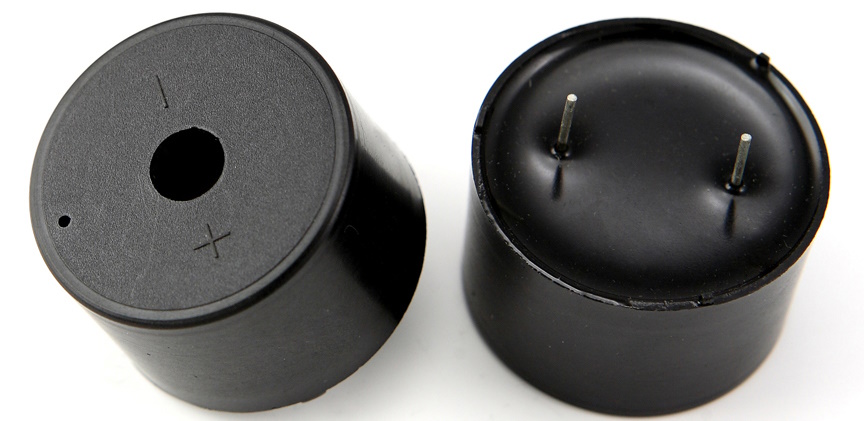

F-B-P3012IPB

Dimension
Ø30.2 x 20.2 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥95 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-20 to +70 °C

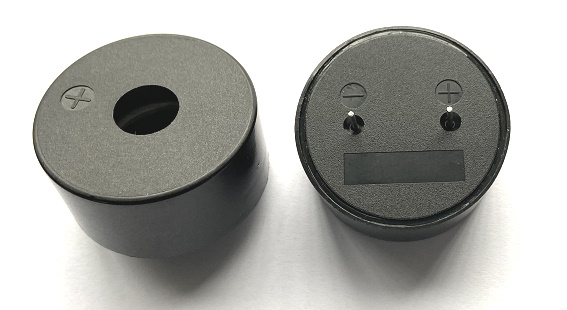

F-B-P4009IPB

Dimension
Ø40 x 20 mm
Rated Voltage
9 VDC
Operating Voltage
4.5 - 20 VDC
Sound Pressure Level
≥100 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
2800 ±500 Hz
Operating Temperature
-40 to +85 °C

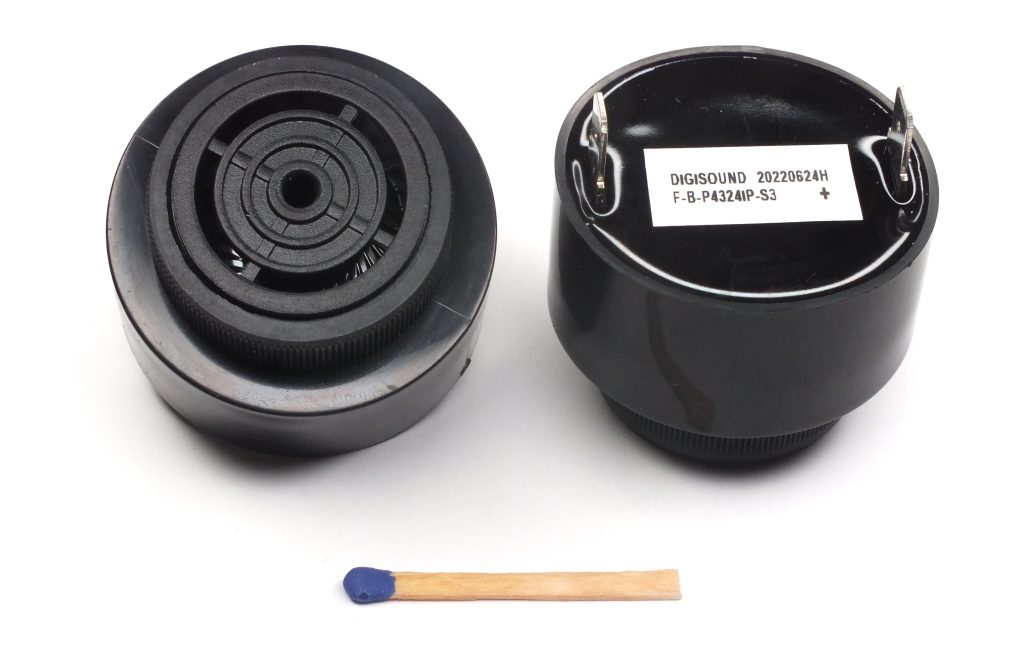

F-B-P4324IP-S3

Dimension
Ø43 x 32.3 mm
Rated Voltage
24 VDC
Operating Voltage
8 - 25 VDC
Sound Pressure Level
≥80 dB(A) at 0.3 m
Tone
FORK LIFT SOUND (Sound 3)
Operating Temperature
-20 to +70 °C

F-H105-101-24VDC-350

Dimension
Ø100 x 120 x 55 mm
Rated Voltage
24 VDC
Operating Voltage
22 - 30 VDC
Sound Pressure Level
105 - 118 dB(A) at 1 m distance
IP Rating
IP65
Oscillator Frequency
350 ±30 Hz
Operating Temperature
-40 to +85 °C

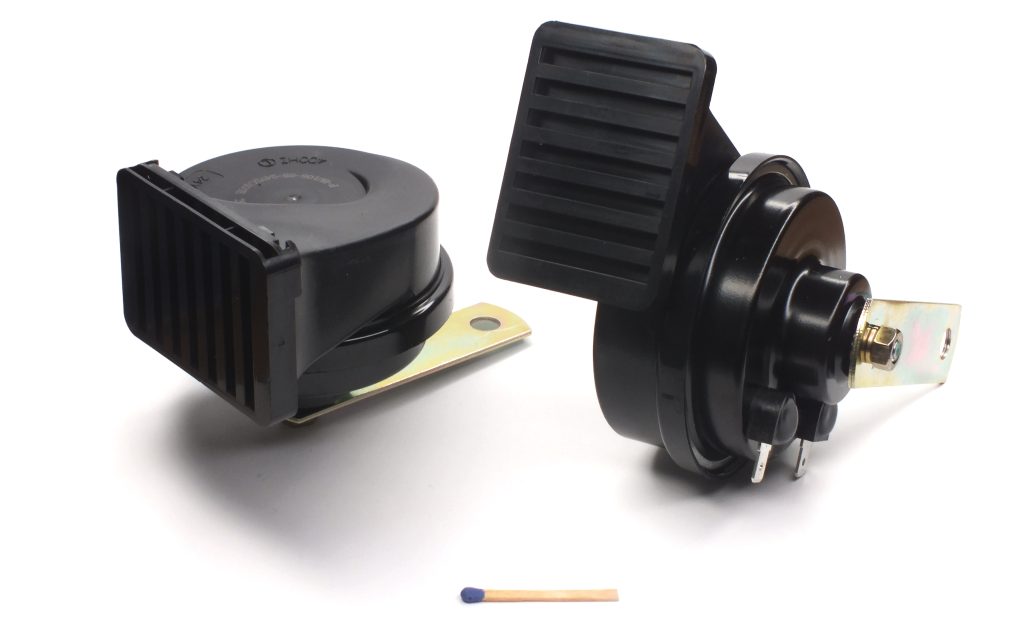

F-HU105-88-24VDC400E

Dimension
128 x 101 x 88 mm
Rated Voltage
24 VDC
Operating Voltage
18 - 32 VDC
Sound Pressure Level
105 - 118 dB(A) at 1 m distance
IP Rating
IP67
Oscillator Frequency
400 ±20 Hz
Operating Temperature
-40 to +85 °C

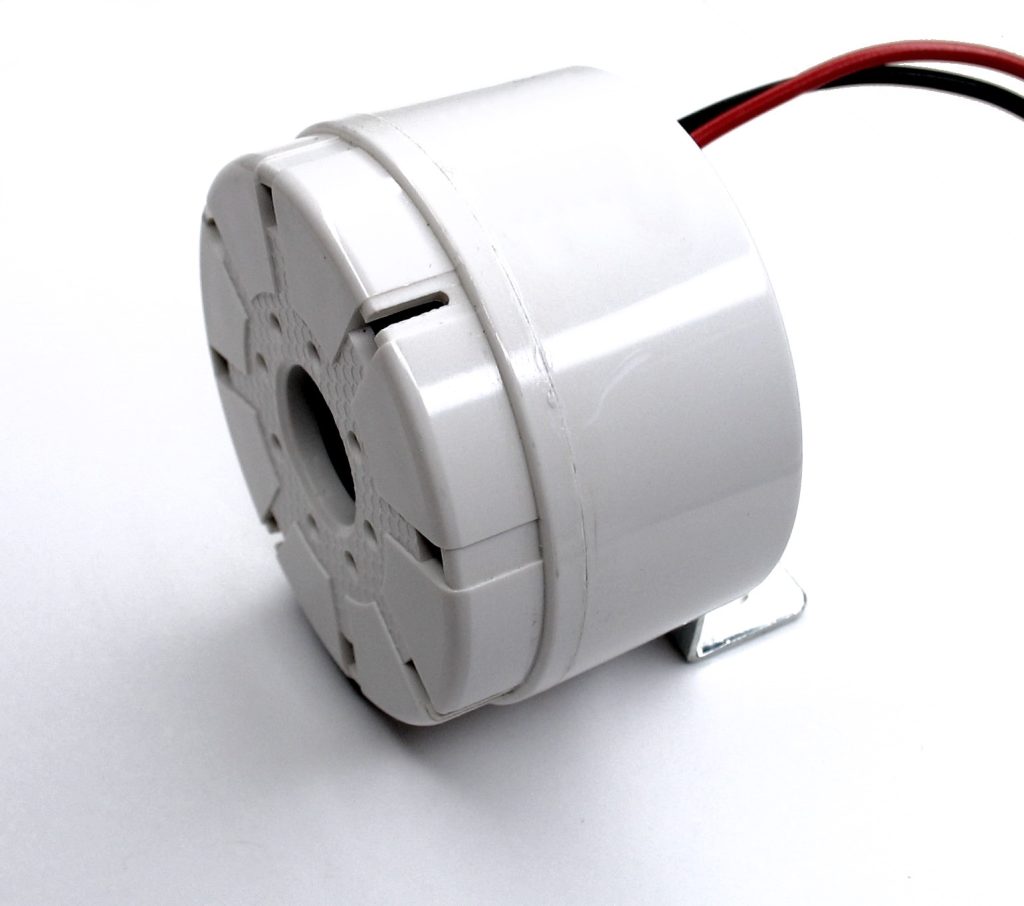

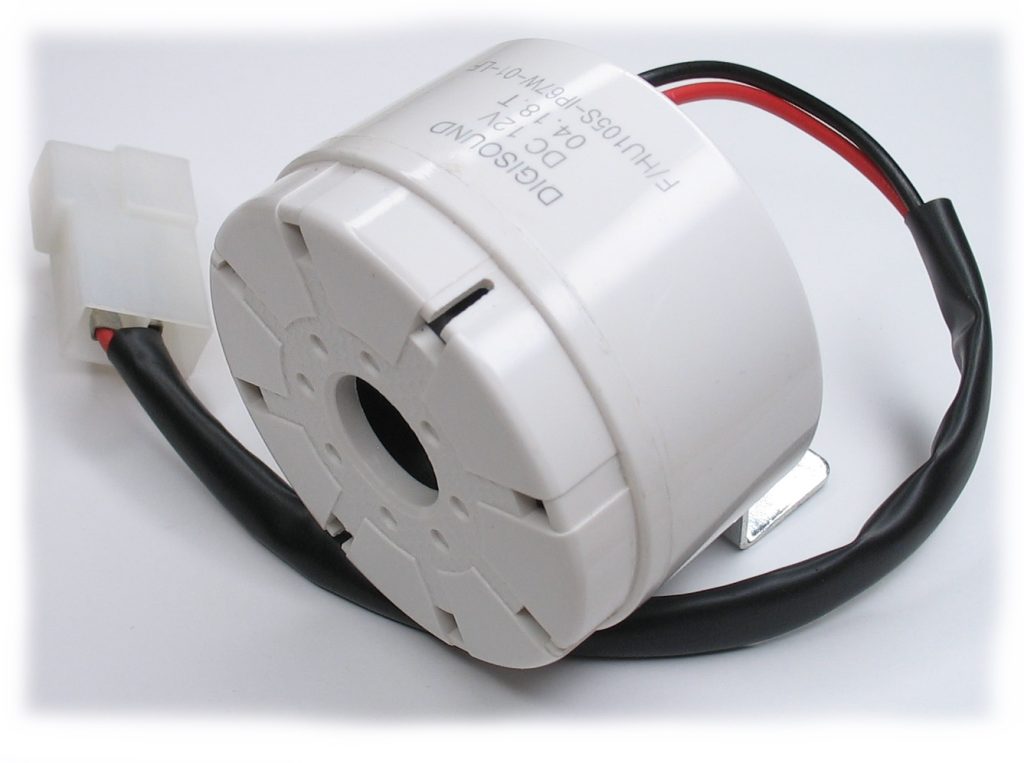

F-HU105S12VIP67W-02

Dimension
Ø60 x 38 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 15 VDC
Sound Pressure Level
105 dB(A) +3/-2 dB at 1 m
Tone
Siren Tone
IP Rating
IP67
Operating Temperature
-20 to +80 °C

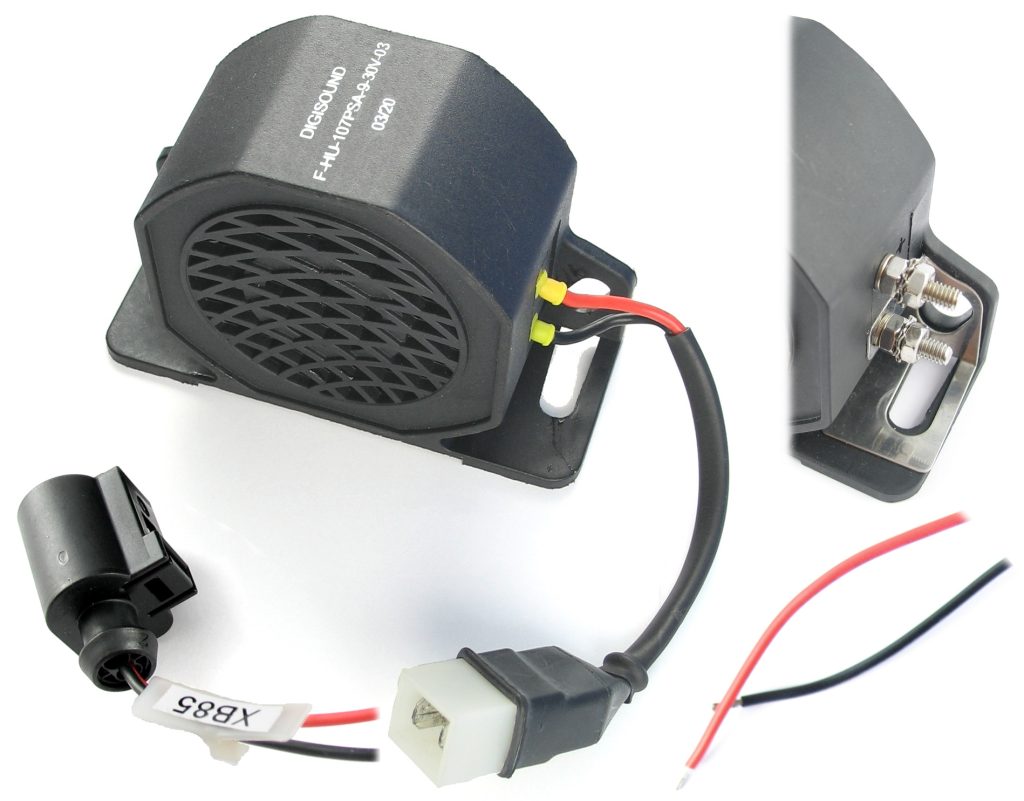

F-HU107PSA9-30V Series

Dimension
34 x 100.9 x 68.4 mm
Rated Voltage
12/24 VDC
Operating Voltage
9 - 30 VDC
Sound Pressure Level
87 - 107 dB(A) ±3 at 1.2 m)
Resonance Frequency (F0)
1250 ±300 Hz
Tone
Pulse
IP Rating
IP66
Operating Temperature
-40 to +60 °C

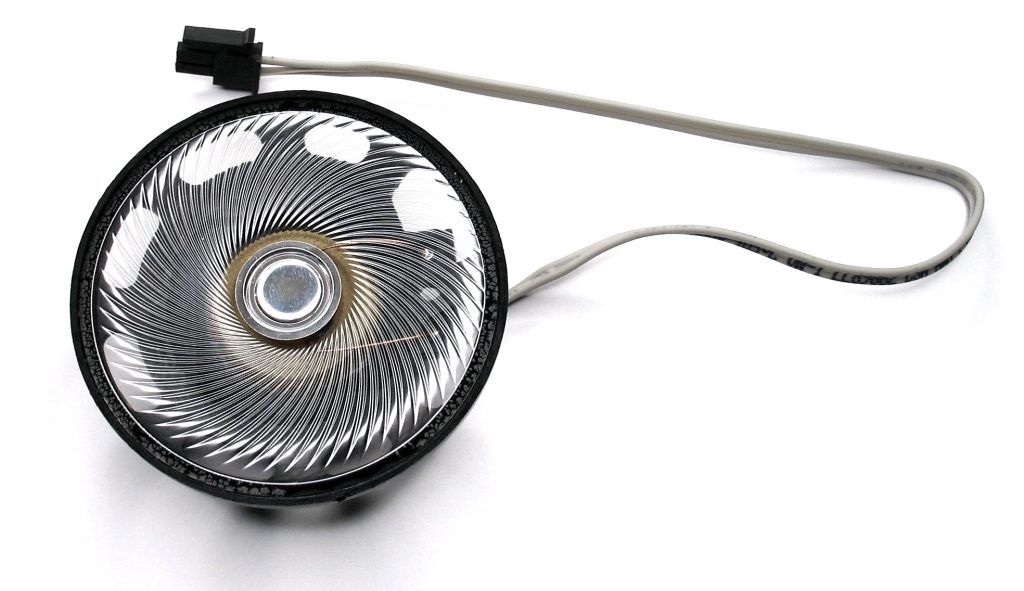

F-L-FE6408M-2W-W23

Dimension
Ø64 x 9.7 mm
Sound Pressure Level
86 ±2 dB(A) at 1 m/1 W/1 kHz
Resonance Frequency (F0)
F0: 300 ±50 Hz
Operating Temperature
-25 to +70 °C
Nominal Input Power
2 W
Max. Input Power
3 W
Impedance
8 ±15% Ohm at 20 °C
Frequency Range
F0 - 15 kHz

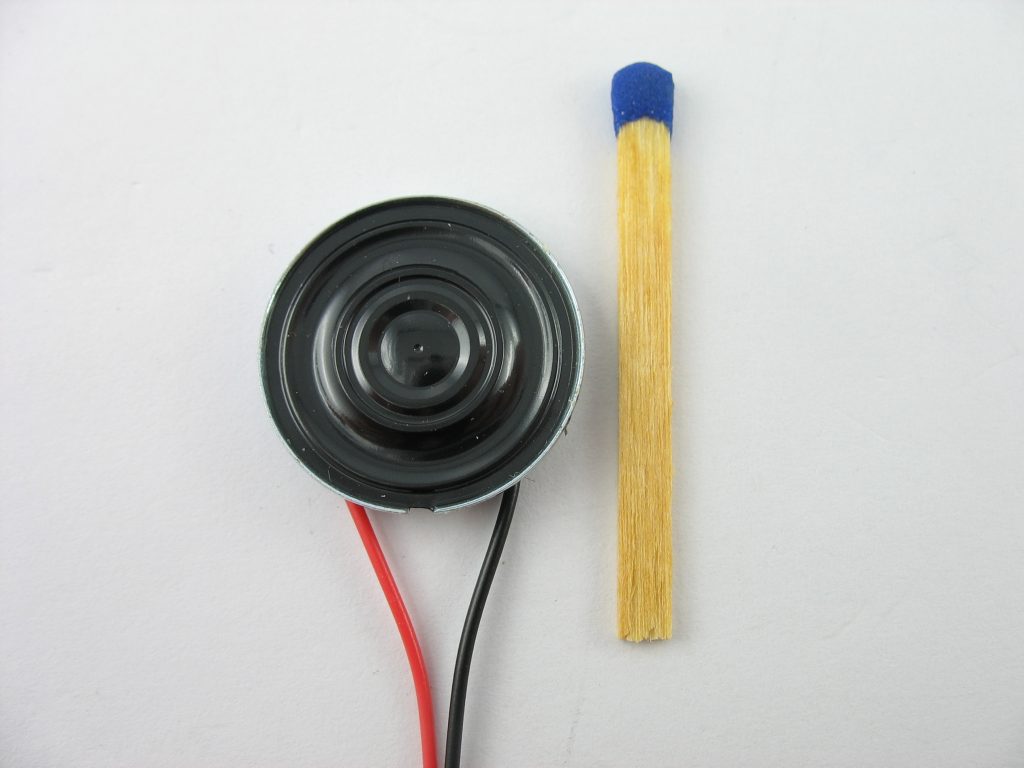

F-L-ND2008M-W100

Dimension
Ø20 x 3 mm
Sound Pressure Level
91 ±3 dB(A) at 0.1 W / 0.1 m
Resonance Frequency (F0)
900 ±20% Hz
Operating Temperature
-20 to +60 °C
Nominal Input Power
0.2 W
Max. Input Power
0.5 W
Impedance
8 ±15% Ω at 2 kHz
Frequency Range
F0 Hz - 10 kHz

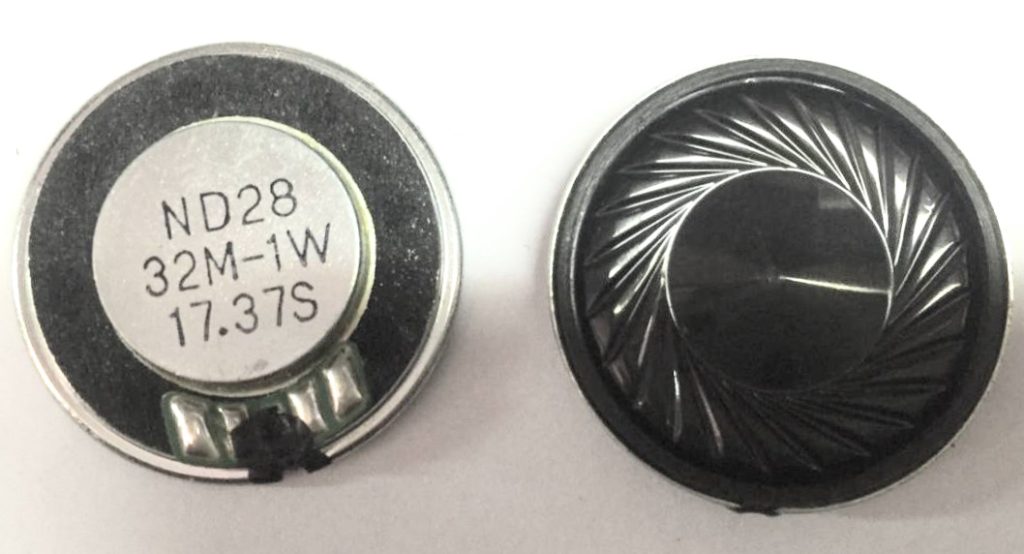

F-L-ND2832M-1W

Dimension
Ø28 x 5.1 mm
Sound Pressure Level
98 ±3 dB(A) at 1 W/ 10 cm
Resonance Frequency (F0)
500 ±20% Hz
Operating Temperature
-20 to +60 °C
Nominal Input Power
1 W
Max. Input Power
2 W
Impedance
32 ±15% Ω at 1.0 kHz
Frequency Range
F0 to 20 kHz

F-L-ND3408M-0.5WS

Dimension
Ø34 mm
Sound Pressure Level
72 ±3 dB(A) at 0.1W/1m/1kHz
Resonance Frequency (F0)
400 Hz ±20%
Operating Temperature
-40 to +105 °C
Nominal Input Power
0.5 W
Max. Input Power
0.8 W
Impedance
8 ±15% Ω at 2 kHz, 1 Vrms
Frequency Range
F0 - 20 kHz

F-L-ND3808S-4WW200NX

Dimension
42 x 32 x 13 mm
Sound Pressure Level
≥80 dB(A) at 0.1 W/ 0.1 m/ 1 kHz
Resonance Frequency (F0)
144 - 216 Hz Without baffle
Operating Temperature
-25 to +80 °C
Nominal Input Power
4 W
Max. Input Power
5 W (1 min on, 2 min off) cycling for 10 times
Impedance
8 ±15% Ω at 1 kHz
Frequency Range
F0 - 8 kHz

F-L-ND4206S-3W-ES

Dimension
71 x 47 x 13 mm
Sound Pressure Level
77 ±3 dB(A) at 0.1 m / 0.77 V / 1 kHz
Resonance Frequency (F0)
180 Hz ±20% at 1 V
Operating Temperature
-10 to +55 °C
Nominal Input Power
3 W
Max. Input Power
5 W
Impedance
6 Ω ±15% at 500 Hz
Frequency Range
F0 - 16 kHz

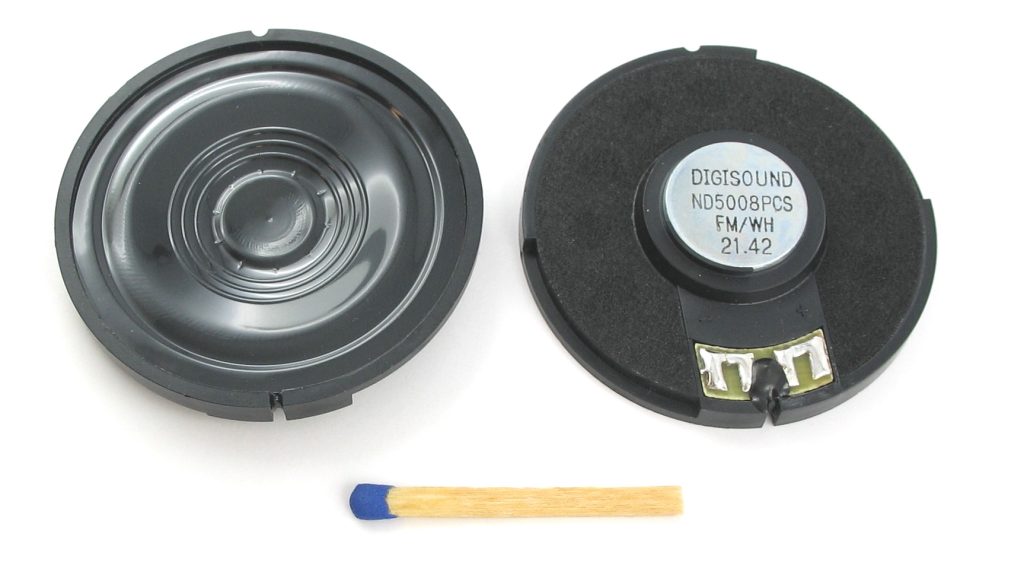

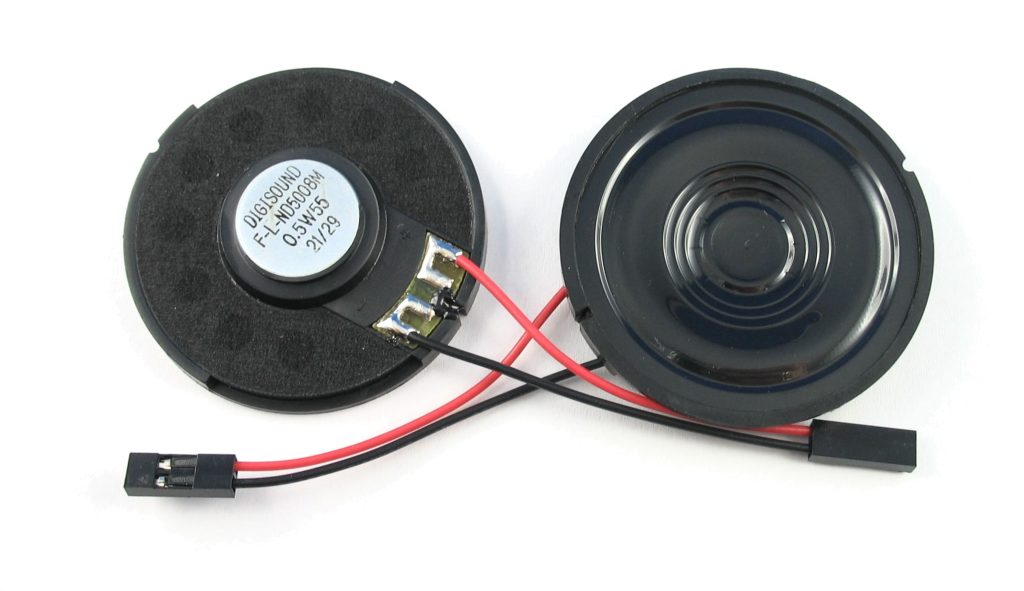

F-L-ND5008M0.5W55

Dimension
Ø50 x 8.1 mm
Sound Pressure Level
85 ±3 dB at 0.5 m/ 0.5 W
Resonance Frequency (F0)
≤410 Hz
Operating Temperature
-25 to +60 °C
Nominal Input Power
0.5 W
Max. Input Power
1.0 W
Impedance
8 Ω ±15% at 20 °C, 1 kHz
Frequency Range
F0 - 10 kHz

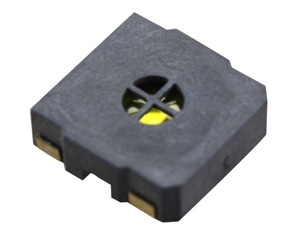

F-L-SC1308-0.7W

Dimension
13 x 13 x 4 mm
Sound Pressure Level
88 ±3 dB(A) at 0.7 W / 0.1 m
Resonance Frequency (F0)
1100 ±20% Hz at 1.0 V
Operating Temperature
-40 to +85 °C
Nominal Input Power
0.7 W
Max. Input Power
1 W
Impedance
8 ±15% Ω at 2.0 kHz
Frequency Range
F0 to 10 kHz (Output SPL -10 dB)

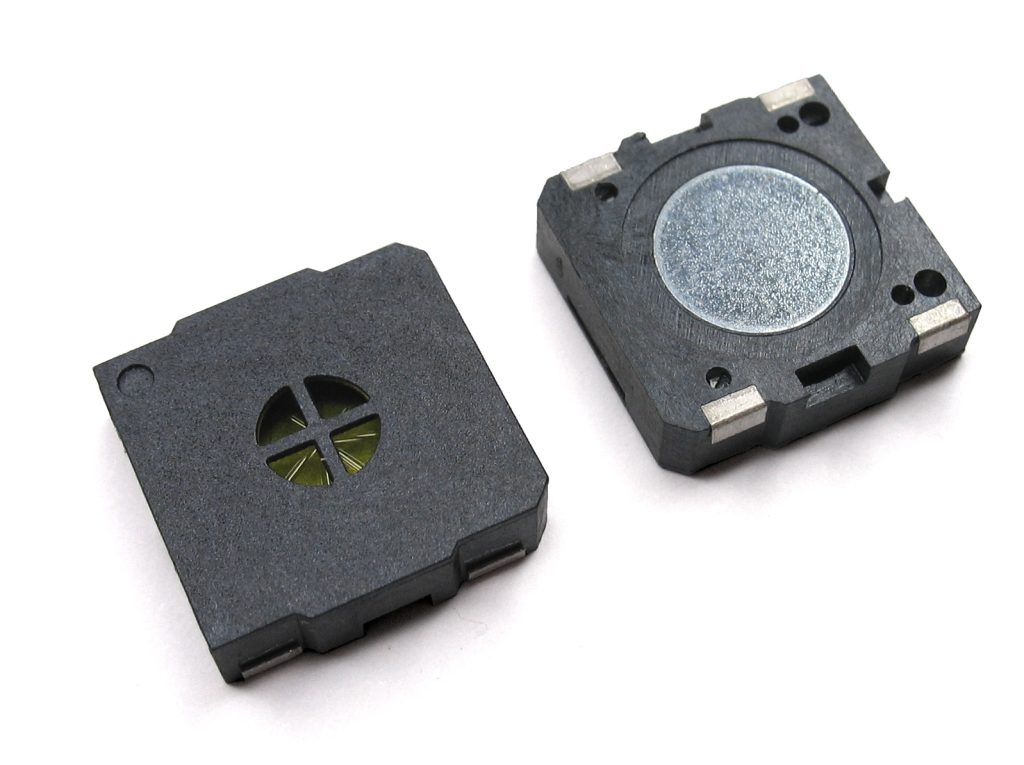

F-L-SC1508-0.3W

Dimension
15 x 15 x 4 mm
Sound Pressure Level
89 ±3 dB(A) at 0.5 W / 0.1 m
Resonance Frequency (F0)
900 ±20% Hz
Operating Temperature
-30 to +85 °C
Nominal Input Power
0.3 W
Max. Input Power
0.5 W
Impedance
8 ±15% Ω at 2.0 kHz
Frequency Range
F0 to 20 kHz

F-LR-ND302008PEN1W100

Dimension
30 x 20 x 5.1 mm
Sound Pressure Level
91 ±3 dB(A) at 0.1 m/ 0.1 W
Resonance Frequency (F0)
650 ±20% Hz at 1 V
Operating Temperature
-30 to +70 °C
Nominal Input Power
1 W
Max. Input Power
1.5 W
Impedance
8 ±15% Ω at 2.0 kHz
Frequency Range
F0 - 8 kHz

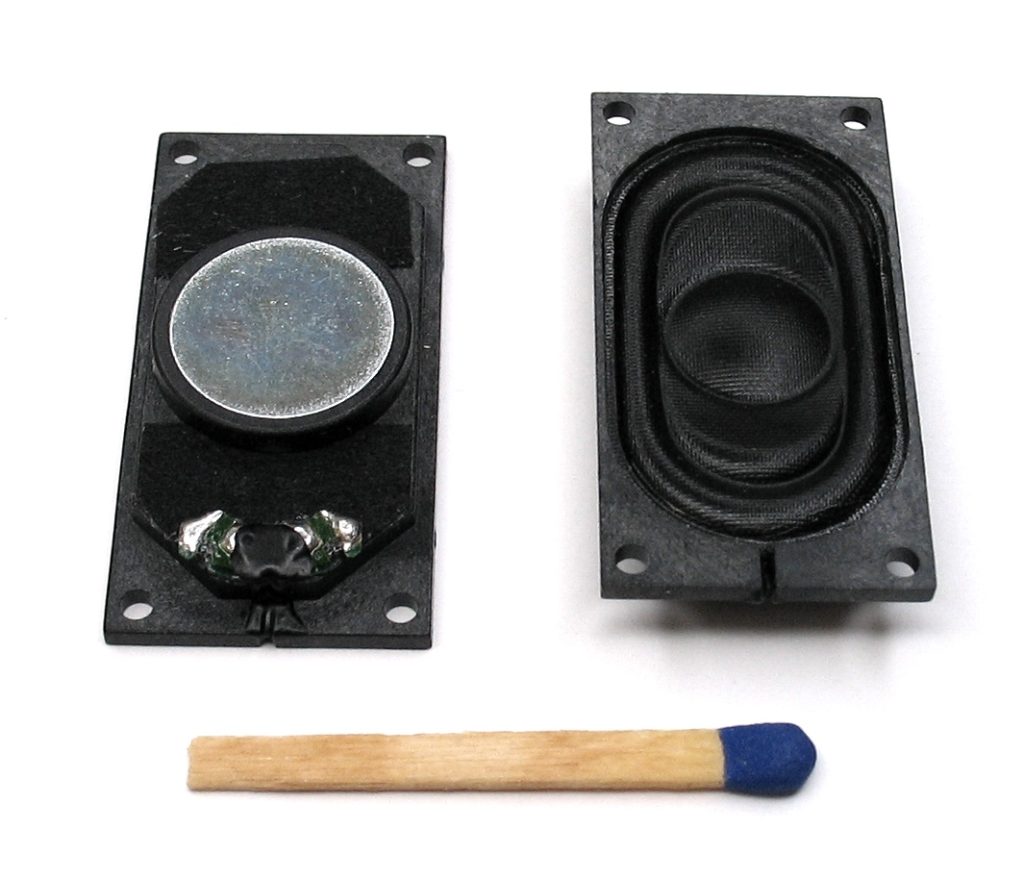

F-LR-ND402008SC2W

Dimension
40 x 20 x 5.8 mm
Sound Pressure Level
90 ±3 dB(A) at 0.1 W / 0.1 m
Resonance Frequency (F0)
650 ±20% Hz at 1 V
Operating Temperature
-30 to +70 °C
Nominal Input Power
2.0 W
Max. Input Power
2.5 W (white noise / 1 min.)
Impedance
8 ±15% Ω at 1 kHz / 1 V
Frequency Range
200 Hz - 20 kHz

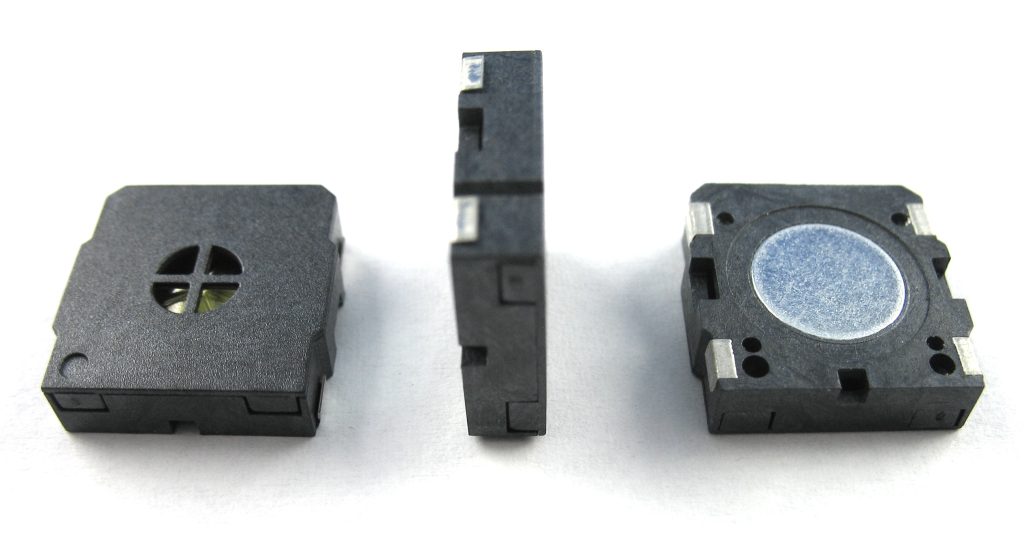

F-LS-SC1508-0.5W

Dimension
15 x 15 x 4 mm
Sound Pressure Level
87 ±3 dB(A) at 0.5 W / 0.1 m
Resonance Frequency (F0)
850 ±20% Hz at 1.0 V
Operating Temperature
-40 to +85 °C
Nominal Input Power
0.5 W
Max. Input Power
0.8 W
Impedance
8 ±15% Ω at 2.0 kHz
Frequency Range
F0 to 20 kHz (Output SPL -10 dB)

F-M-O6.0-46B2C-W70C

Dimension
Ø6 x 5 mm
Rated Voltage
2 V
Operating Temperature
-20 to +60 °C
Impedance
Low Impedance
Directivity
Omni-Directional
Sensitivity
-46 ±3 dB

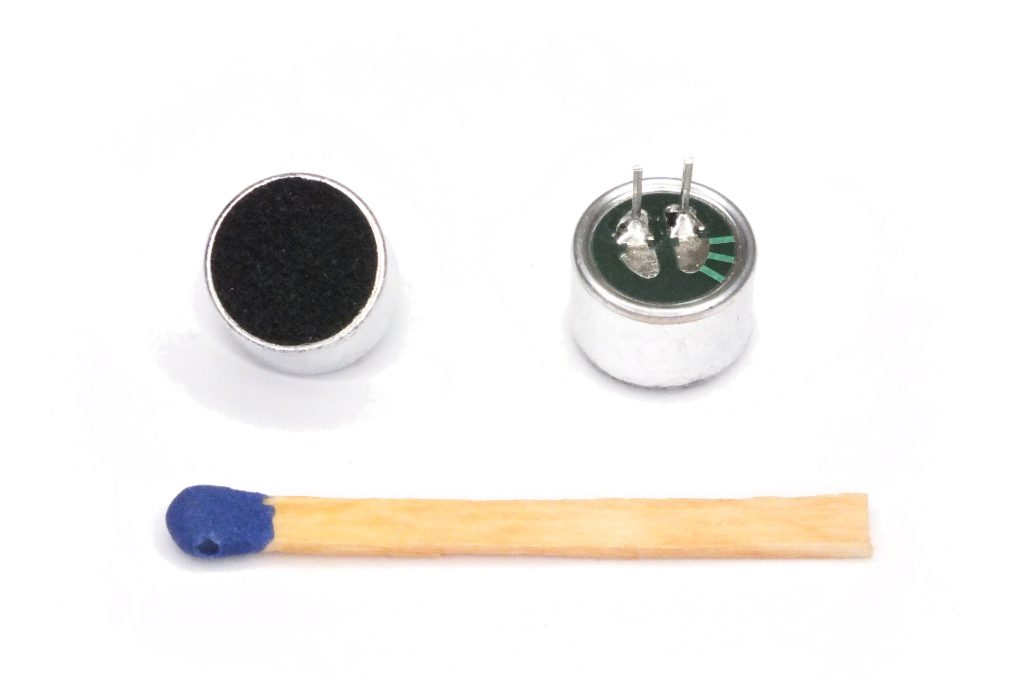

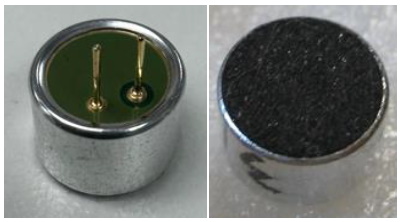

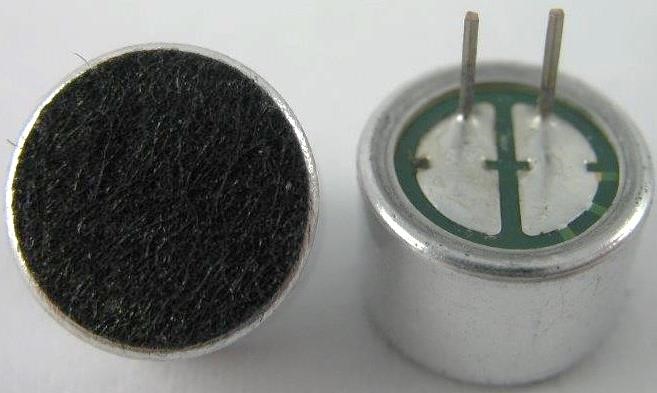

F-M-O9.7-39.5PC-TIN

Dimension
Ø9.7 x 6.5 mm
Operating Voltage
1.5 V
Operating Temperature
-20 to +60 °C
Max. Input Voltage
10 V
Resistance
Loading Resistance (RL) 1 kΩ
Impedance
Low Impedance
Frequency Range
50 - 16,000 Hz
Directivity
Omni-Directional
Sensitivity
-39.5 ±2 dB

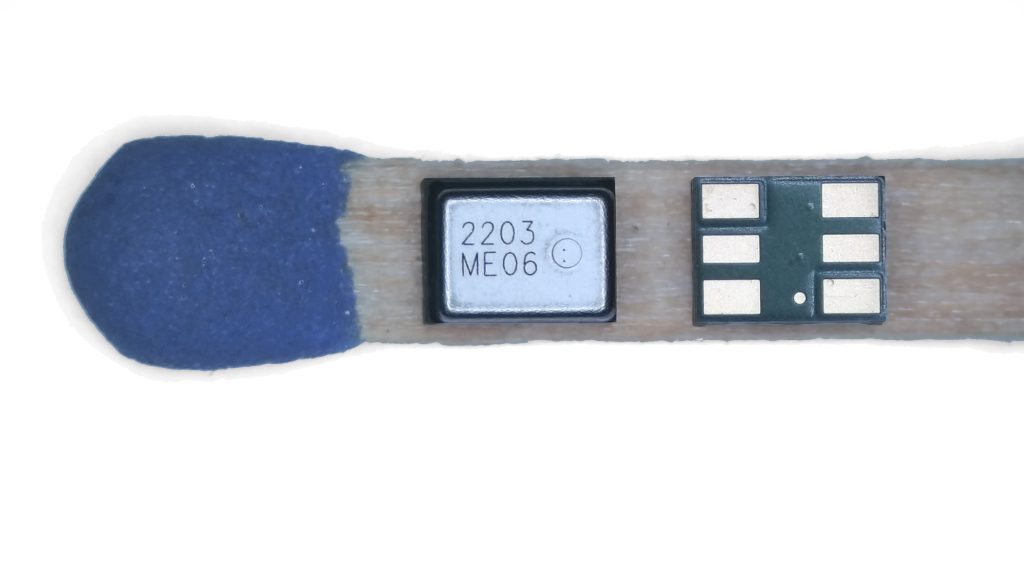

F-MEA-S3.5Z2973

Dimension
3.5 x 2.65 x 1.55 mm
Rated Voltage
2 V
Operating Voltage
1.5 - 3.6 V
Operating Temperature
-30 to +70 °C
Directivity
Z-Direction
Sensitivity
-29 dB

F-MED-O3.5B2665

Dimension
3.5 x 2.65 x 0.98 mm
Rated Voltage
1.8 V
Operating Voltage
1.62 - 3.6 V
Operating Temperature
-40 to +85 °C
Frequency Range
20 - 20,000 Hz
Directivity
Omni-Directional
Sensitivity
-26 ±1 dBFS

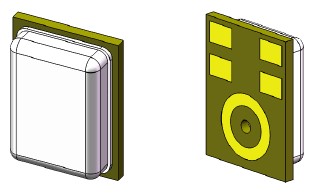

F-MED-O3.5B3767

Dimension
3.5 x 2.65 x 1 mm
Rated Voltage
1.8 V
Operating Voltage
1.6 - 3.3 V
Operating Temperature
-40 to +85 °C
Frequency Range
20 - 20,000 Hz
Directivity
Omni-Directional
Sensitivity
-37 ±1 dBFS

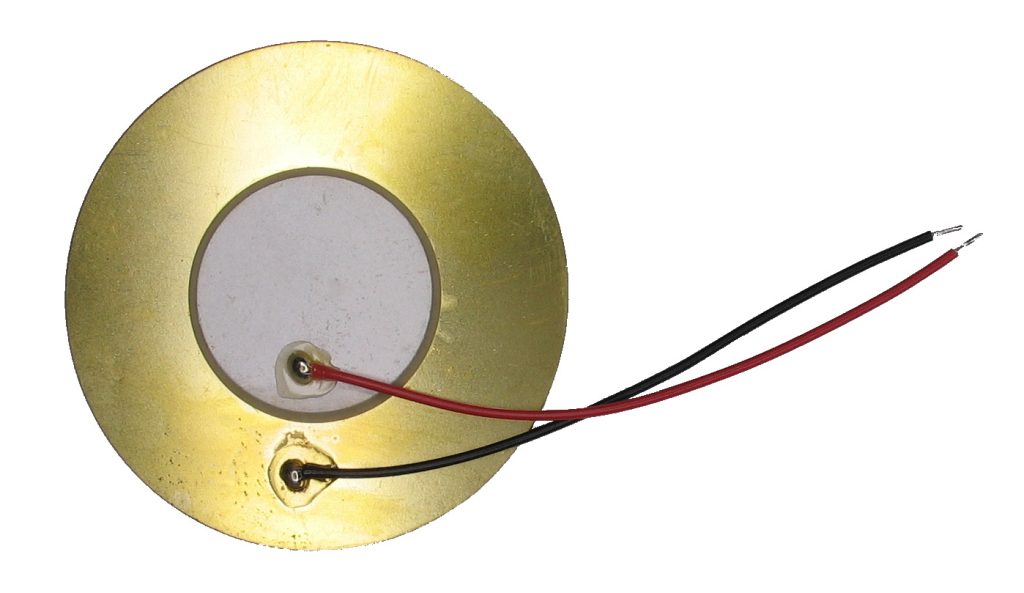

F-PD-503.1-W70

Dimension
Ø50 x 0.47 mm
Resonance Frequency (F0)
3.1 ±0.5 kHz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
30 Vpp

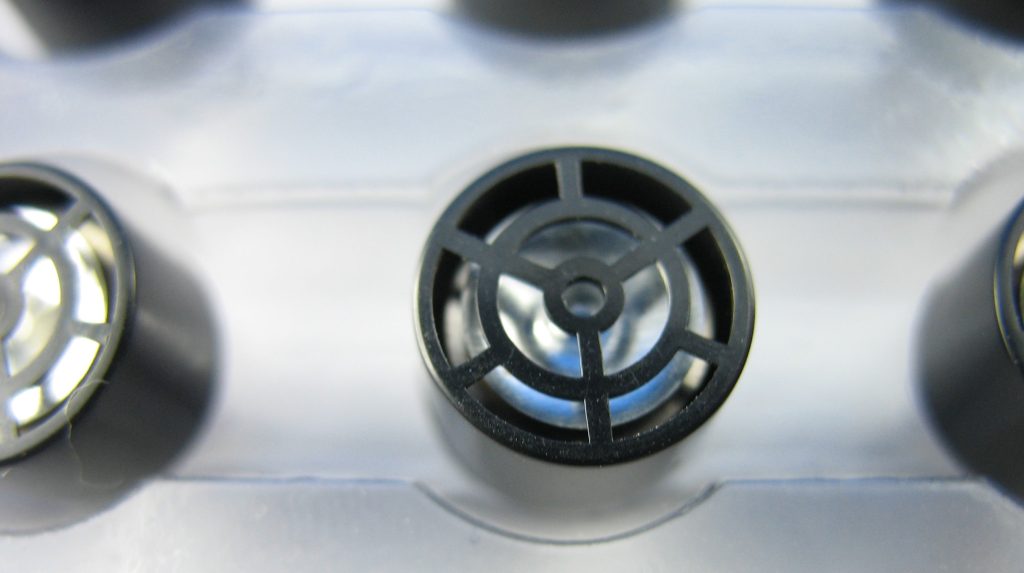

F-S-D1040OPB

Dimension
Ø10 x 7 mm
Sound Pressure Level
≥110 dB
Operating Temperature
-40 to +85 °C
Max. Input Voltage
30 Vrms at 40 kHz

F-V-C1020W

Dimension
Ø10 x 2.45 mm
Rated Voltage
3 VDC
Operating Voltage
2.7 - 3.3 VDC
Contact / Wire
Wire 16 mm
Operating Temperature
-20 to +60 °C

F-V-C1020W10

Dimension
Ø10 x 2.45 mm
Rated Voltage
3 VDC
Operating Voltage
2.7 - 3.3 VDC
Contact / Wire
Wire 10 mm
Operating Temperature
-20 to +60 °C

F-V-C1027W10

Dimension
Ø10 x 3.20 mm
Rated Voltage
3 VDC
Operating Voltage
2.7 - 3.3 VDC
Contact / Wire
Wire 10 mm
Operating Temperature
-20 to +60 °C

F-V-W-2507W20

Dimension
Ø7 x 24.5 mm
Rated Voltage
3 VDC
Operating Voltage
3 - 4.5 VDC
Contact / Wire
Wire 20 mm
Operating Temperature
-40 to +70 °C, 10 - 90 %RH

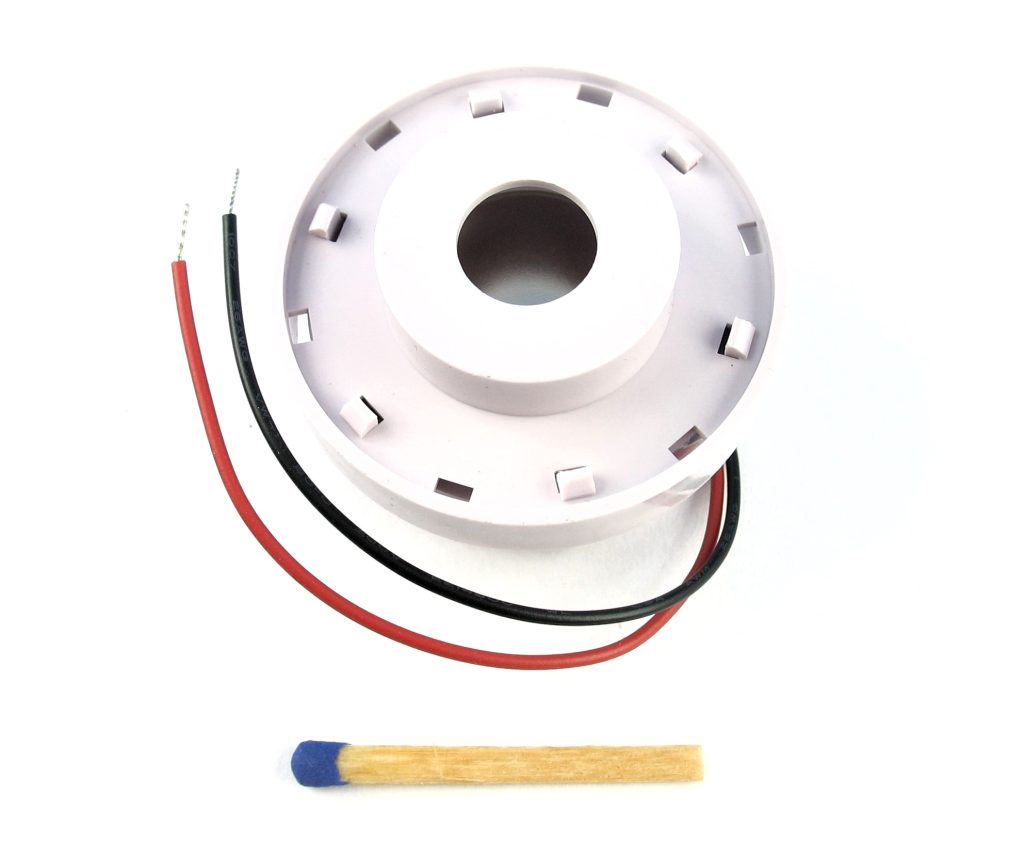

F/AS 38L

Dimension
Ø45 x 26 mm
Rated Voltage
12 VDC
Operating Voltage
1.5 to 15 VDC
Sound Pressure Level
≥105 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +70 °C

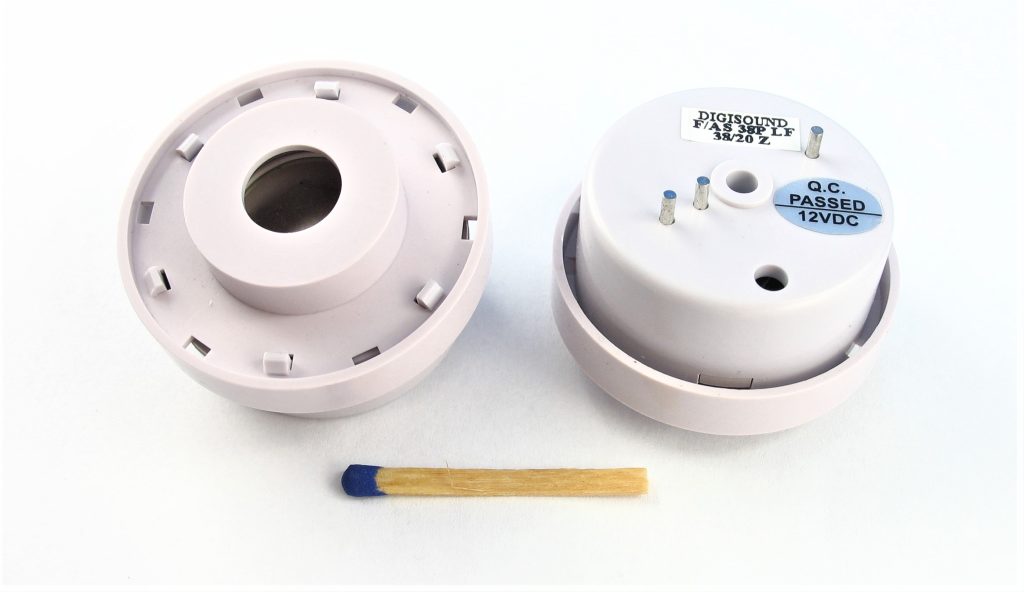

F/AS 38P

Dimension
Ø45 x 26 mm
Rated Voltage
12 VDC
Operating Voltage
1.5 to 15 VDC
Sound Pressure Level
≥105 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
2900 ±500 Hz
Operating Temperature
-20 to +70 °C

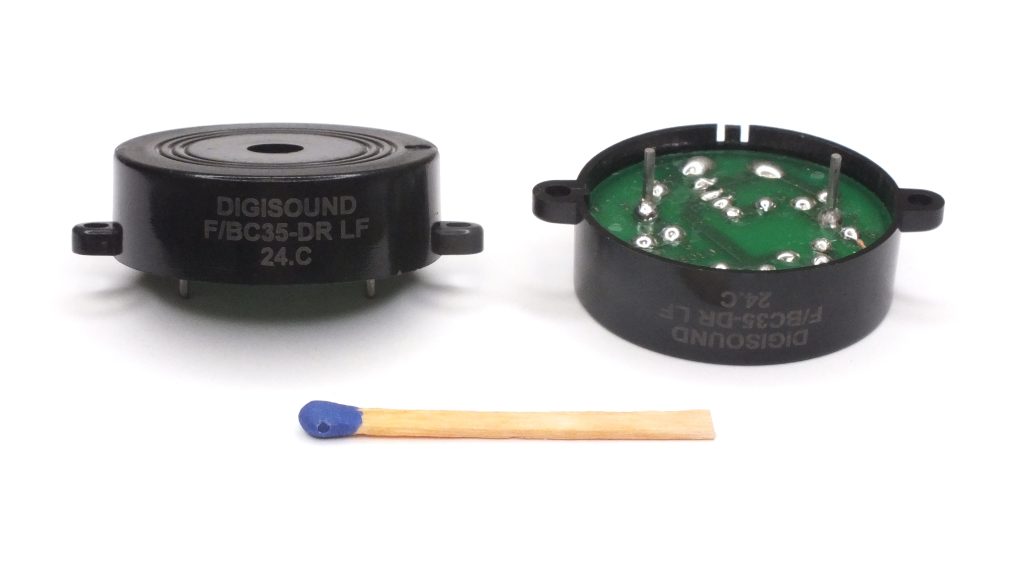

F/BC 35-DR

Dimension
Ø31.5 x 10 mm
Rated Voltage
24 VDC
Operating Voltage
2,4 - 33 VDC
Sound Pressure Level
≥89 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-20 to +60 °C

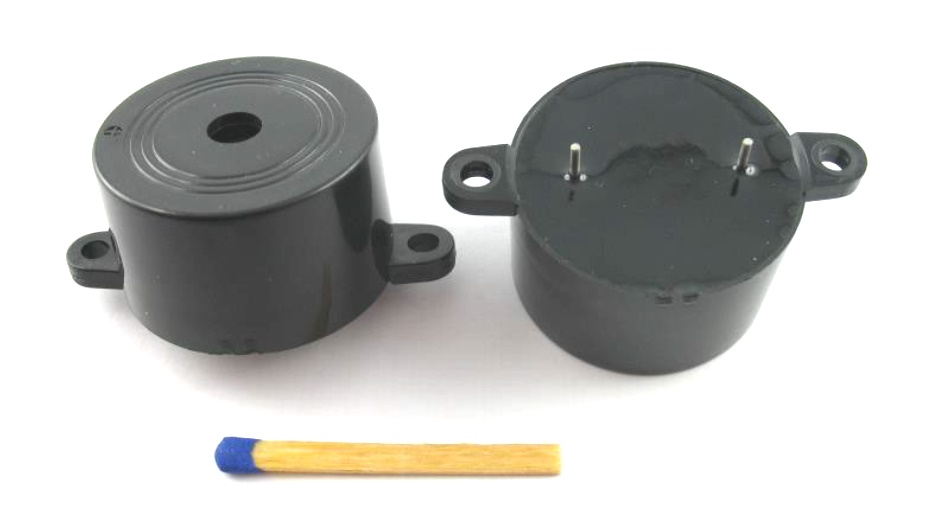

F/BC 40P-WE

Dimension
Ø31.5 x 45 x 19.5 mm
Rated Voltage
9 VDC
Operating Voltage
2.4 - 32 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-30 to +70 °C

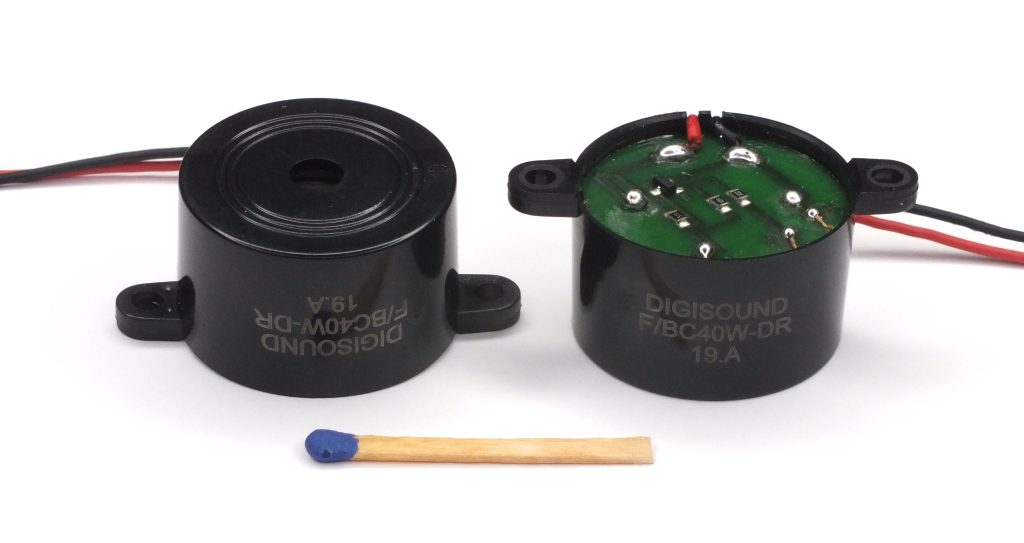

F/BC 40W-DR

Dimension
Ø31.5 x 45 x 19.5 mm
Rated Voltage
9 VDC
Operating Voltage
2.4 - 32 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-20 to +60 °C

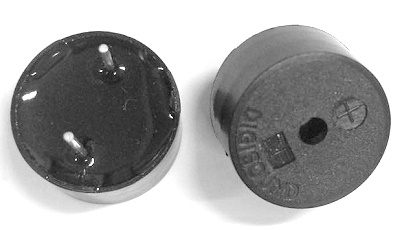

F/CM 12P

Dimension
Ø13.8 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 16 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
4000 ±500 Hz
Operating Temperature
-40 to +85 °C

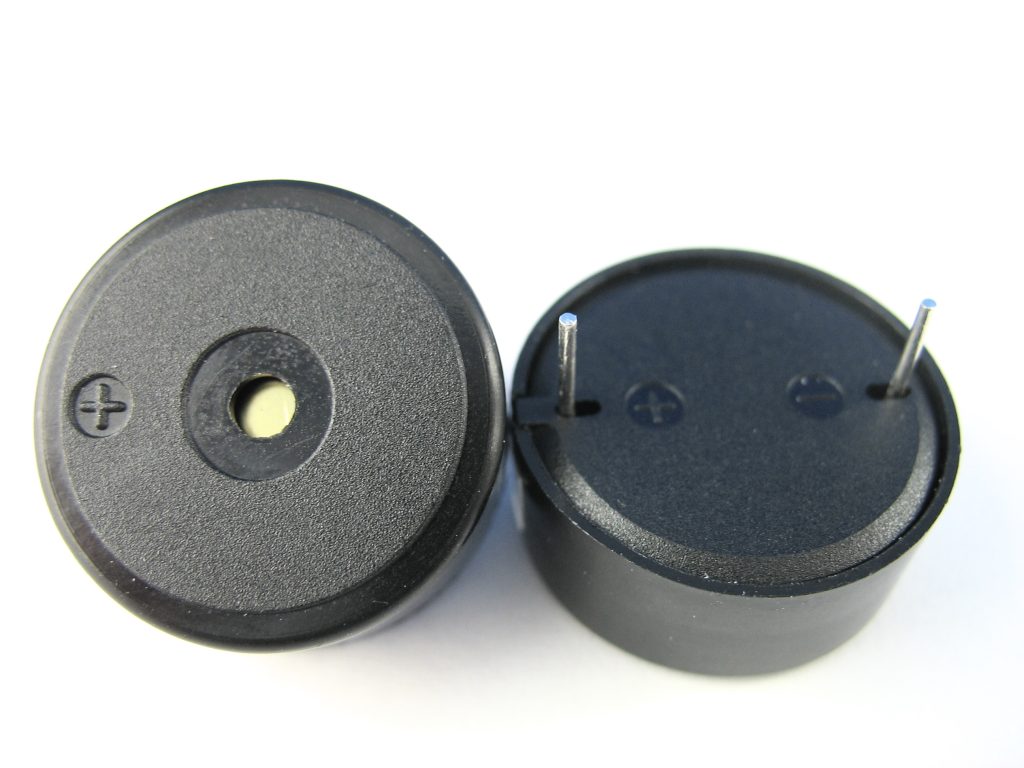

F/CM04P-02

Dimension
Ø23 x 9.8 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-30 to +70 °C

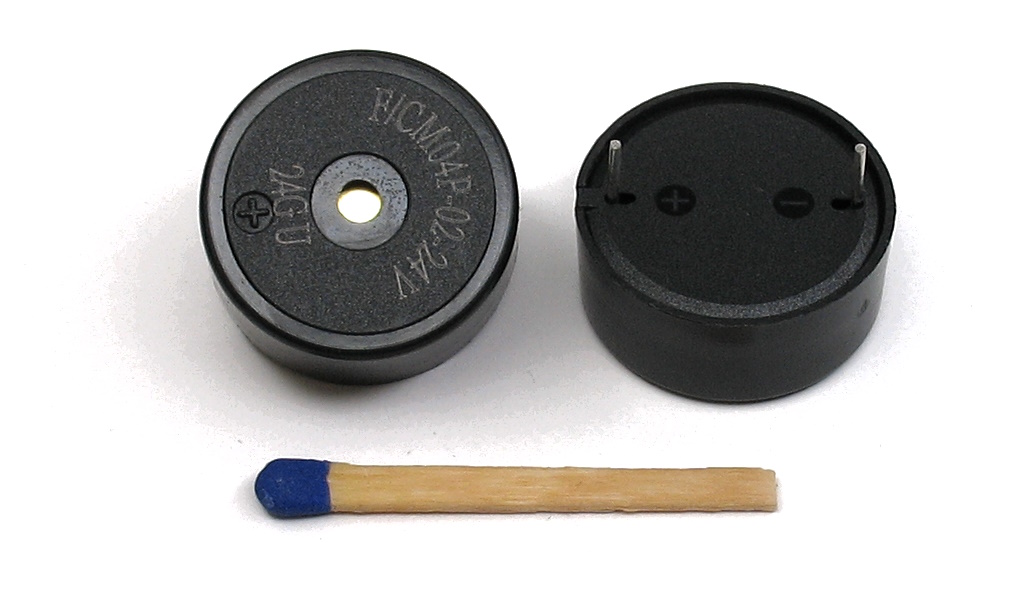

F/CM04P-02-24V

Dimension
Ø23 x 9.8 mm
Rated Voltage
24 VDC
Operating Voltage
3 - 30 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-30 to +70 °C

F/DG 06 P S/L

Dimension
Ø16 x 14 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±6 Ω

F/DG 09-03-2.7

Dimension
Ø9.2 x 5.5 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥87 dB(A) at 10 cm
Resonance Frequency (F0)
2731 Hz
Operating Temperature
-25 to +70 °C
Resistance
25 ±4 Ω

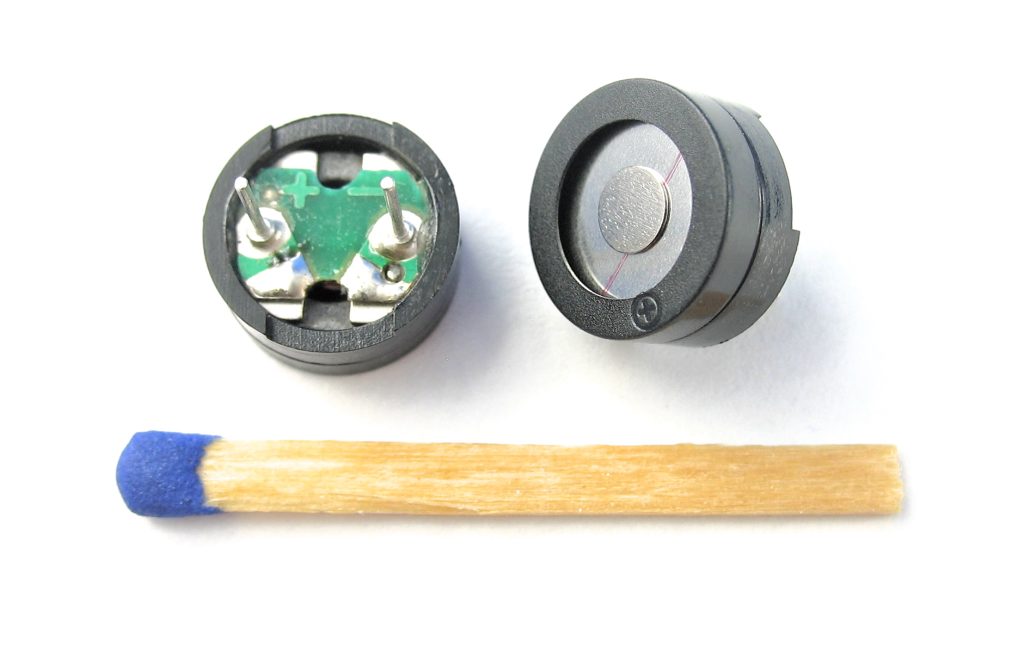

F/DG 105P

Dimension
Ø12 x 5.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
50 ±7.5 Ω

F/DG 105P-01

Dimension
Ø12 x 5.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
50 ±7.5 Ω

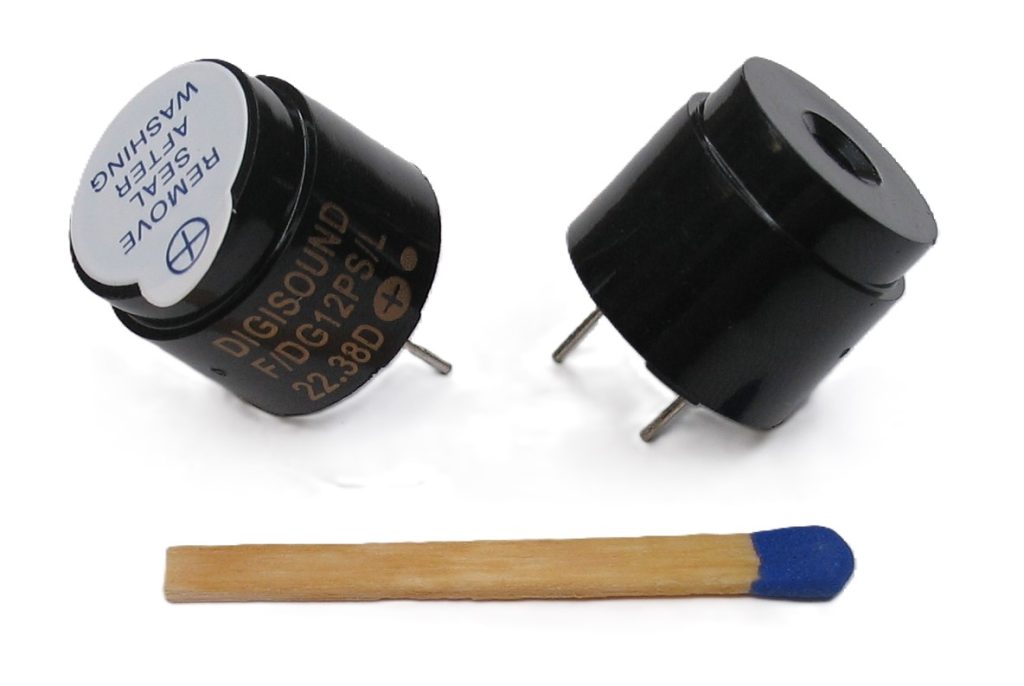

F/DG 12 P S/L

Dimension
Ø16 x 14 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 15 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
115 ±16 Ω

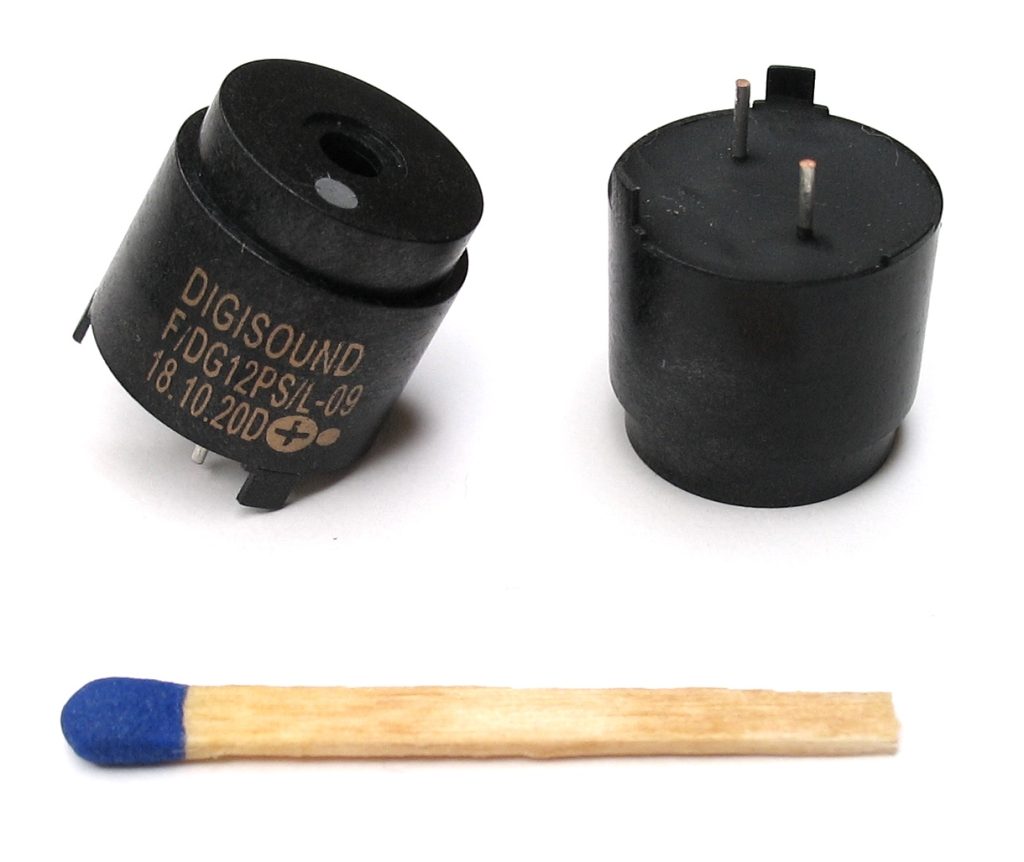

F/DG 12P S/L-09

Dimension
Ø16 x 14.5 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 18 Vo-p
Sound Pressure Level
98 ±3 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-40 to +100 °C
Resistance
115 ±15 Ω

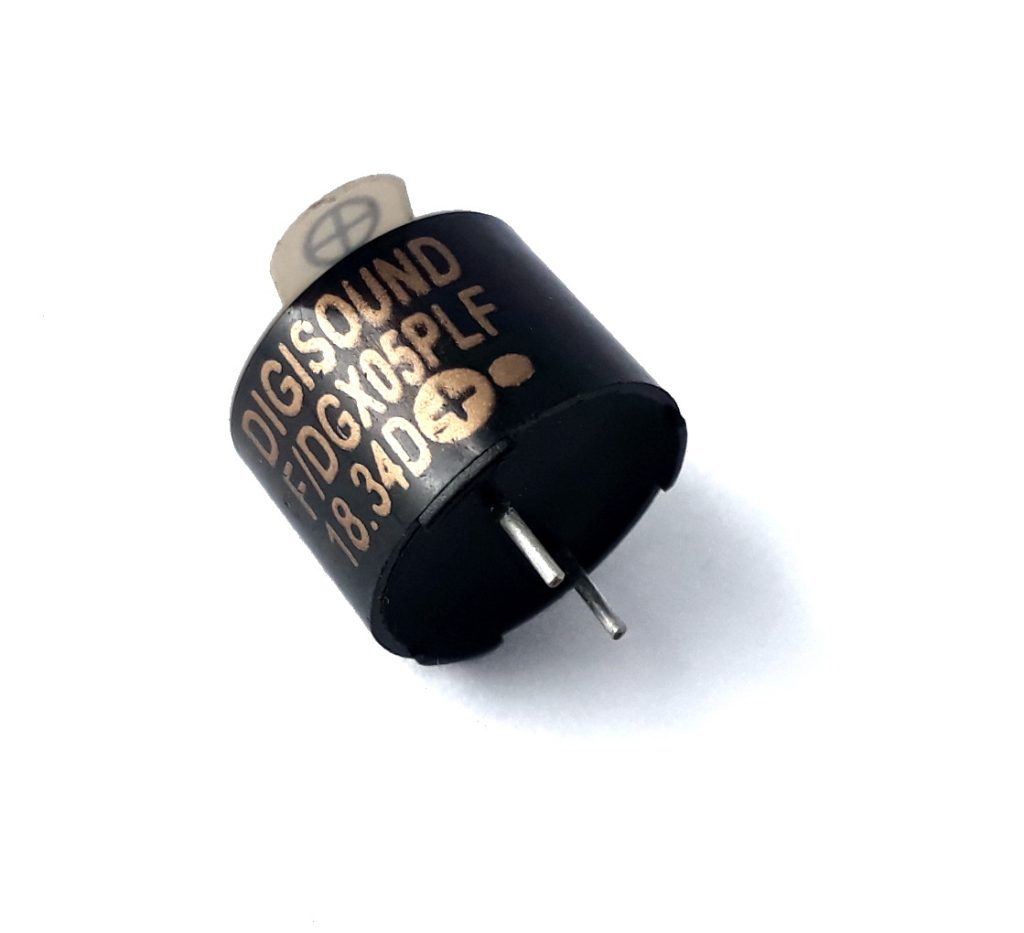

F/DGX 05P with label

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
4 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±5 Ω

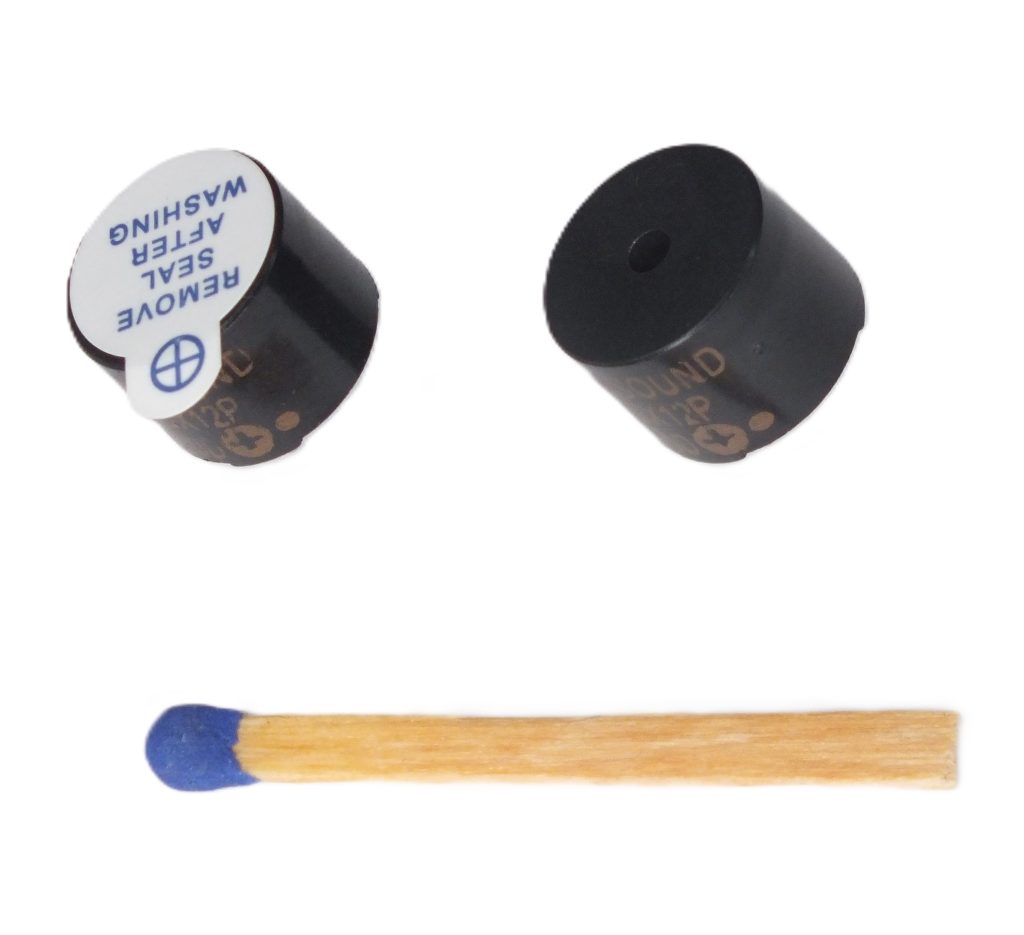

F/DGX 12P WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 16 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±12 Ω

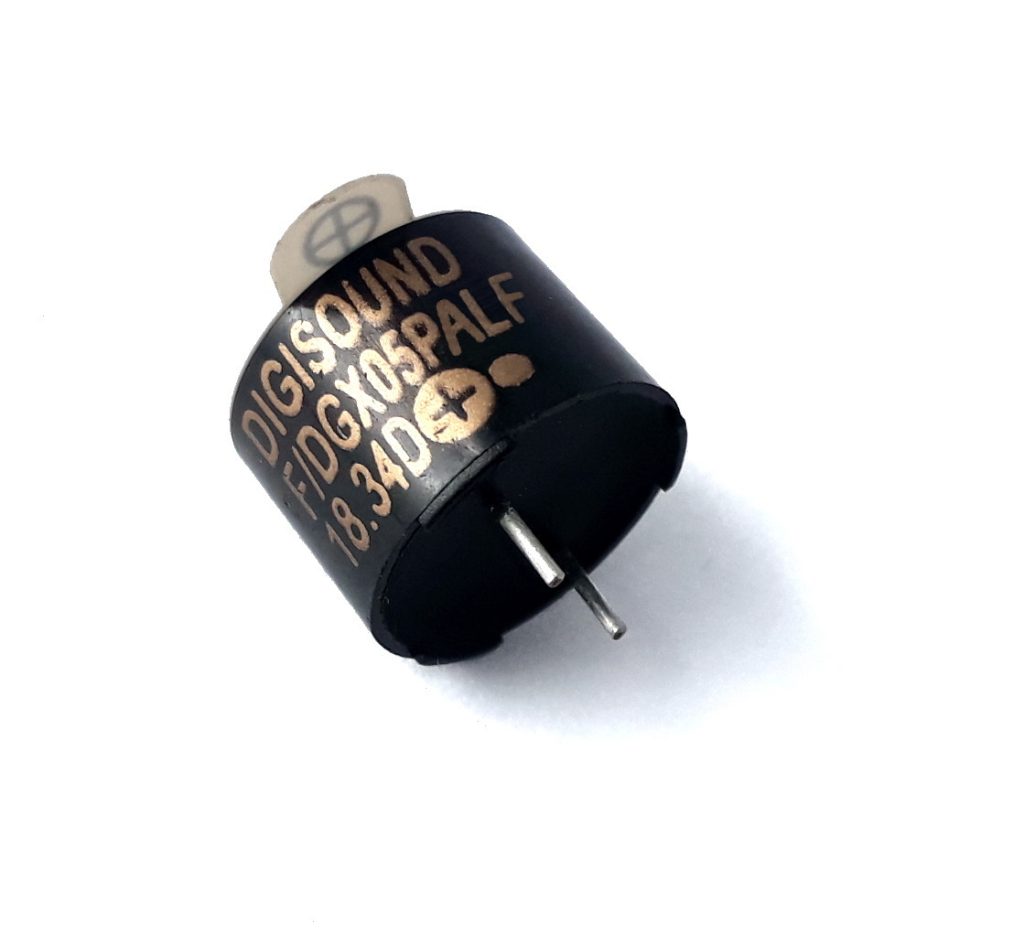

F/DGX05PA WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
4 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±5 Ω

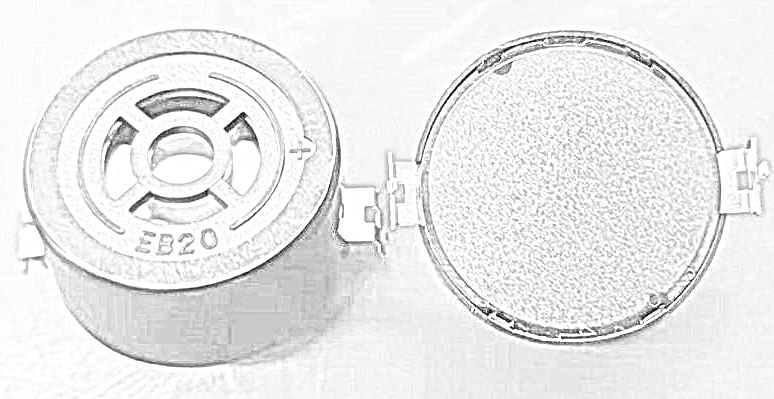

F/EB20P-DR

Dimension
Ø23 x 12 mm
Rated Voltage
12 VDC
Operating Voltage
2.4 - 20 VDC
Sound Pressure Level
≥80 dB(A) at 10 cm
Oscillator Frequency
3.5 ±0.5 kHz
Operating Temperature
-10 to +60 °C

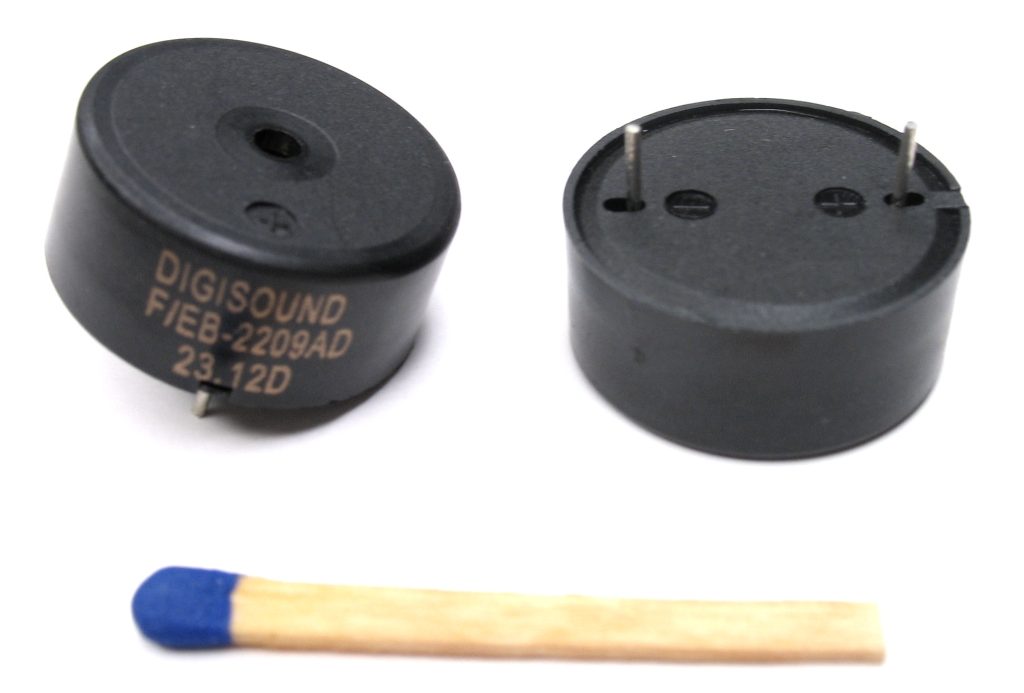

F/EB2209AD

Dimension
Ø22.8 x 9.8 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 24 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Resonance Frequency (F0)
3500 ±500 Hz
Tone
Continuous
Operating Temperature
-40 to +85 °C

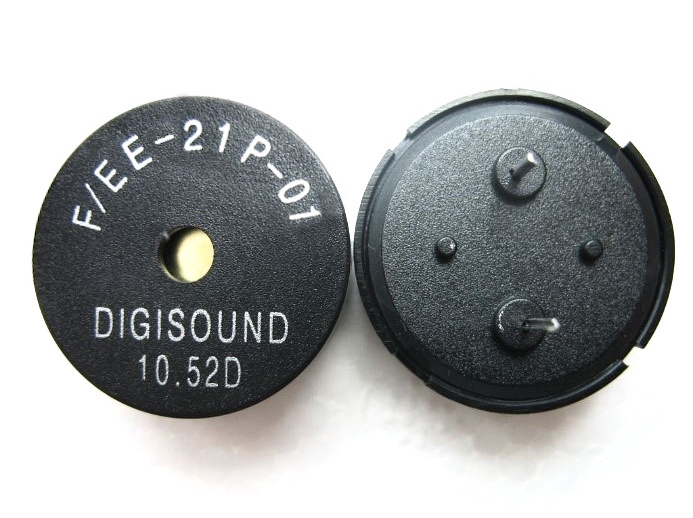

F/EE-21P-01

Dimension
Ø22.1 x 7.2 mm
Rated Voltage
3 Vpp
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
4000 ±500 Hz
Operating Temperature
-40 to +85 °C
Max. Input Voltage
30 Vpp

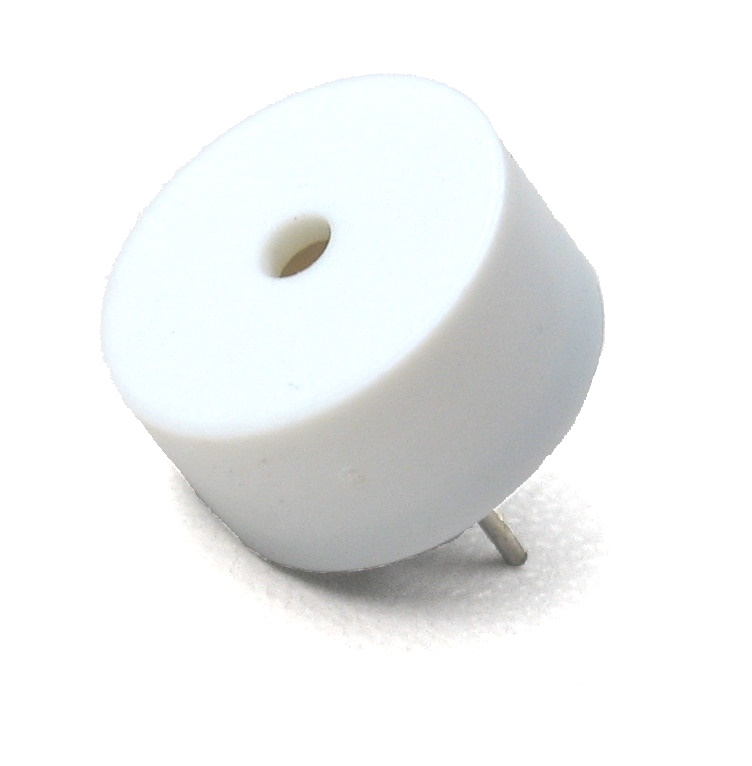

F/EM12P

Dimension
Ø13.8 x 6.8 mm
Rated Voltage
5 Vpp
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
4096 ±500 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
25 Vpp

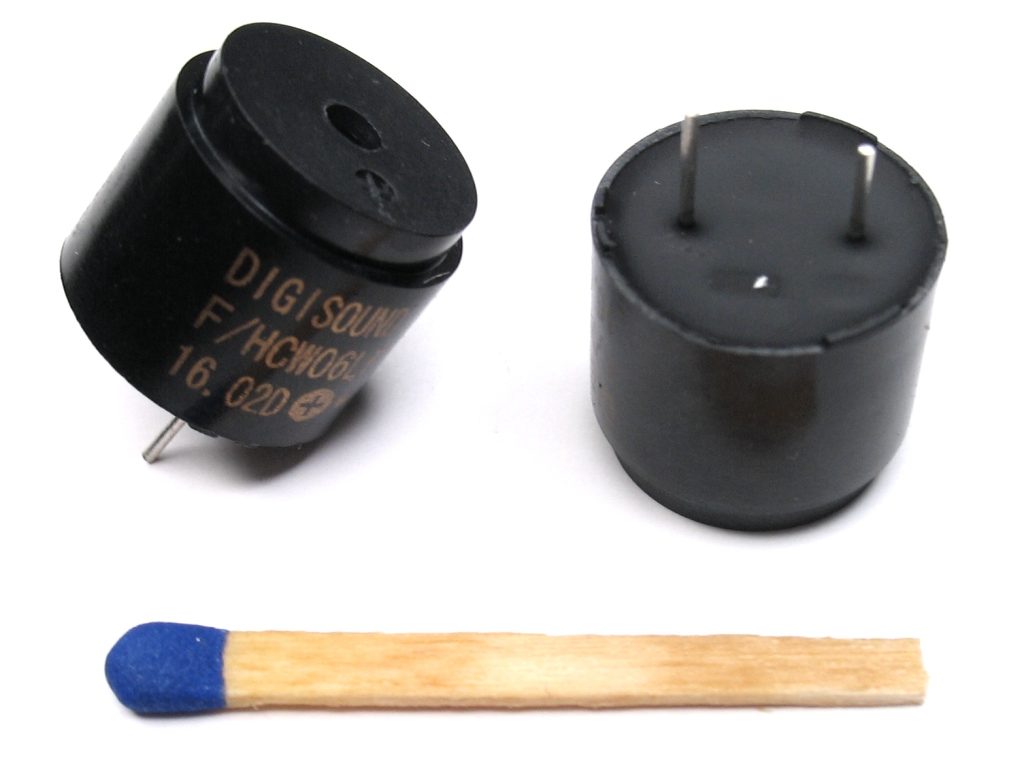

F/HCW 06 WITH LABEL

Dimension
Ø16 x 14 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2200 ±300 Hz
Operating Temperature
-40 to +85 °C

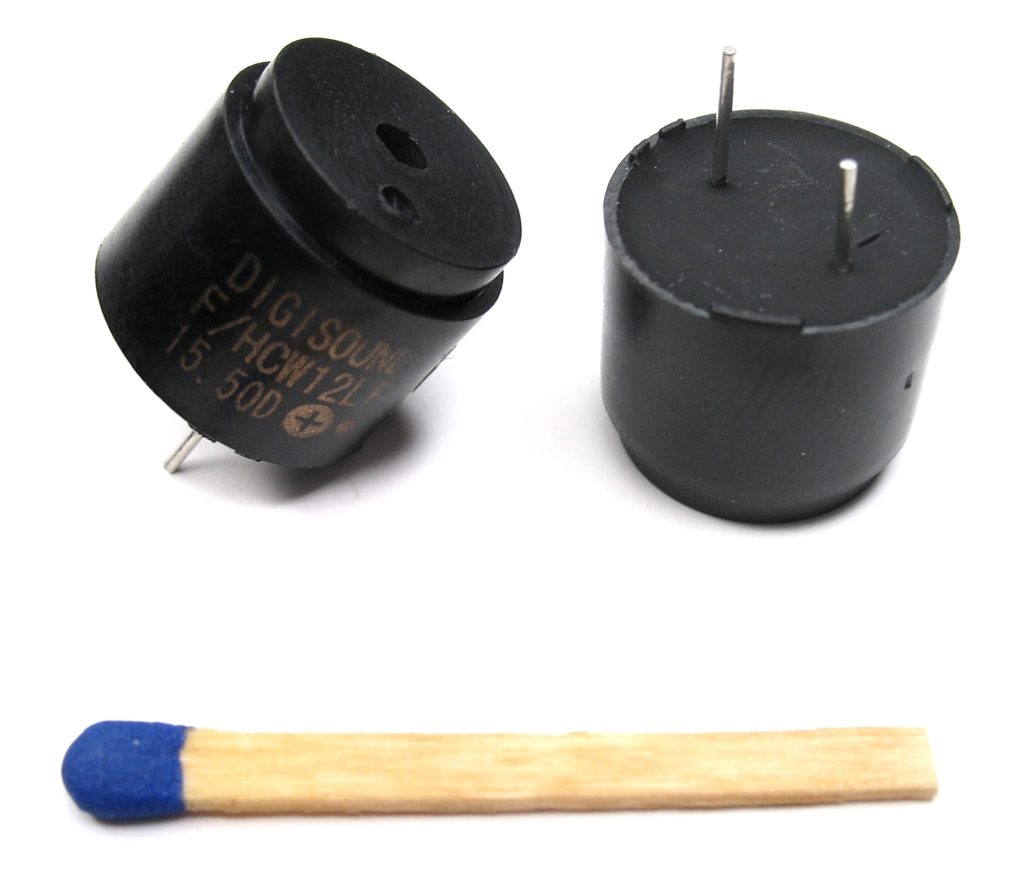

F/HCW 12 WITH LABEL

Dimension
Ø16 x 14 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 15 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2200 ±300 Hz
Operating Temperature
-40 to +85 °C

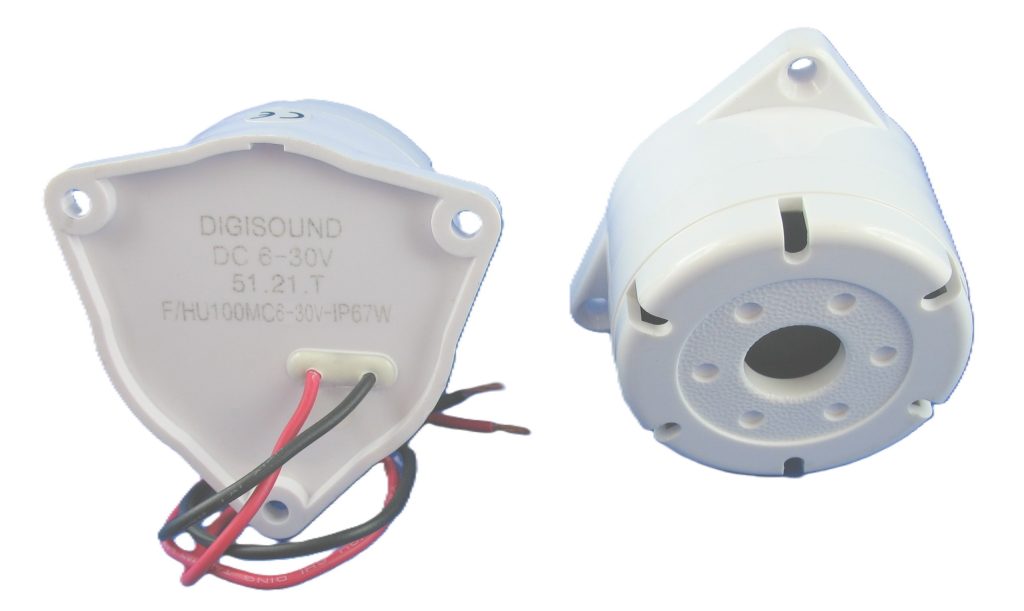

F/HU100MC6-30V-IP67W

Dimension
Ø55.3 x 34.8 mm
Rated Voltage
12/24 VDC
Operating Voltage
6-30 VDC
Sound Pressure Level
≥97 dB(A) at 24 V/ 1 m
Tone
Continuous
IP Rating
IP67
Oscillator Frequency
3000 ±300 Hz
Operating Temperature
-20 to +80 °C

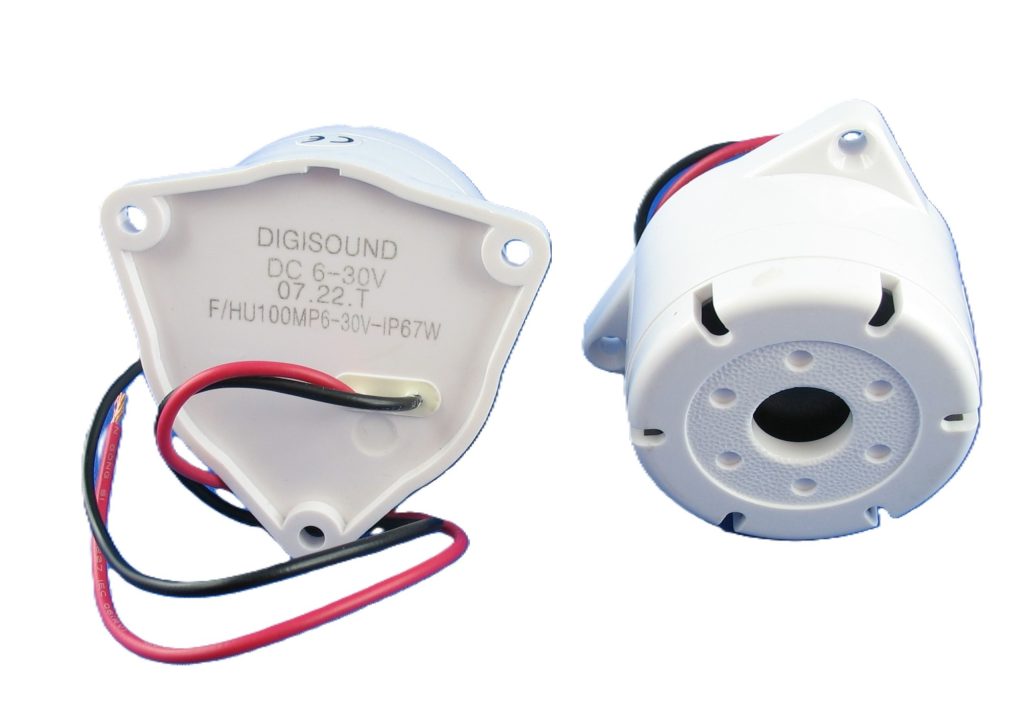

F/HU100MP6-30V-IP67W

Dimension
Ø55.3 x 34.8 mm
Rated Voltage
12/24 VDC
Operating Voltage
6-30 VDC
Sound Pressure Level
≥97 dB(A) at 24 V/ 1 m
Tone
Pulse
IP Rating
IP67
Oscillator Frequency
3000 ±300 Hz
Operating Temperature
-20 to +80 °C

F/HU105S12V-IP67W-01

Dimension
Ø60 x 38 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 15 VDC
Sound Pressure Level
105 dB(A) +3/-2 dB at 1 m
Tone
Siren Tone
IP Rating
IP67
Operating Temperature
-20 to +80 °C

F/HU97PB-1.5KHZ

Dimension
Ø60 x 65 mm
Rated Voltage
12 V, 24 V, 48 V DC
Operating Voltage
10 - 70 VDC
Sound Pressure Level
≥94 dB(A) at 1.2 m
Tone
Pulse Tone
IP Rating
IP67
Oscillator Frequency
1500 ±200 Hz
Operating Temperature
-40 to +85 °C

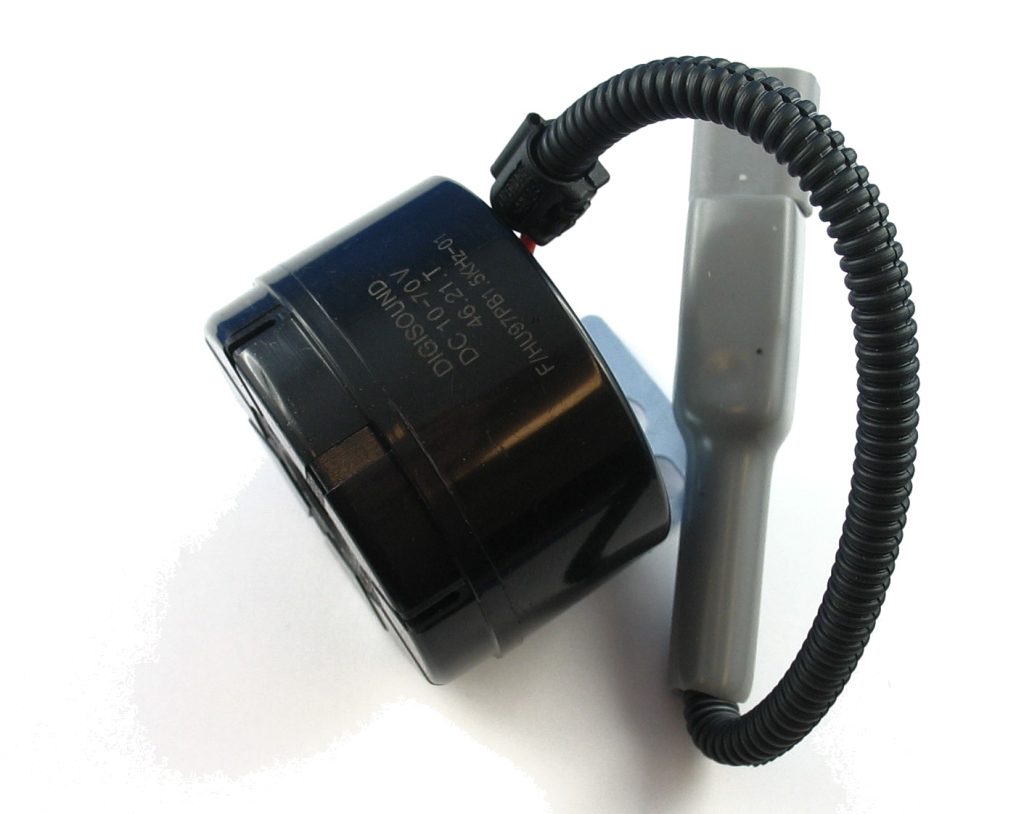

F/HU97PB1.5KHZ-01

Dimension
Ø60 x 65 mm
Rated Voltage
12 V, 24 V, 48 V DC
Operating Voltage
10 - 70 VDC
Sound Pressure Level
≥94 dB(A) at 1.2 m
Tone
Pulse Tone
IP Rating
IP67
Oscillator Frequency
1500 ±200 Hz
Operating Temperature
-40 to +85 °C

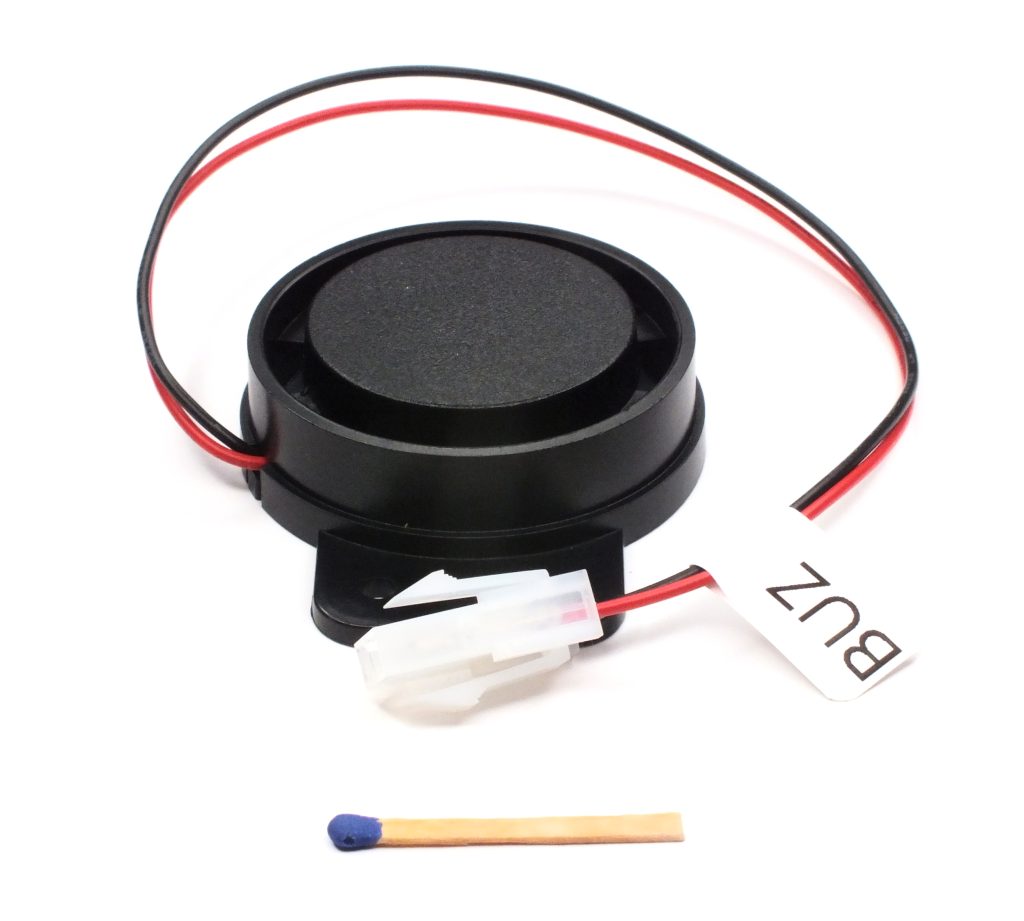

F/M50 L-C

Dimension
Ø55 x 17 mm
Rated Voltage
12 VDC
Operating Voltage
9 - 15 VDC
Sound Pressure Level
110 ±3 dB(A) at 30 cm
Tone
Siren Sound (2- 3.5 kHz)
Operating Temperature
-15 to +60 °C

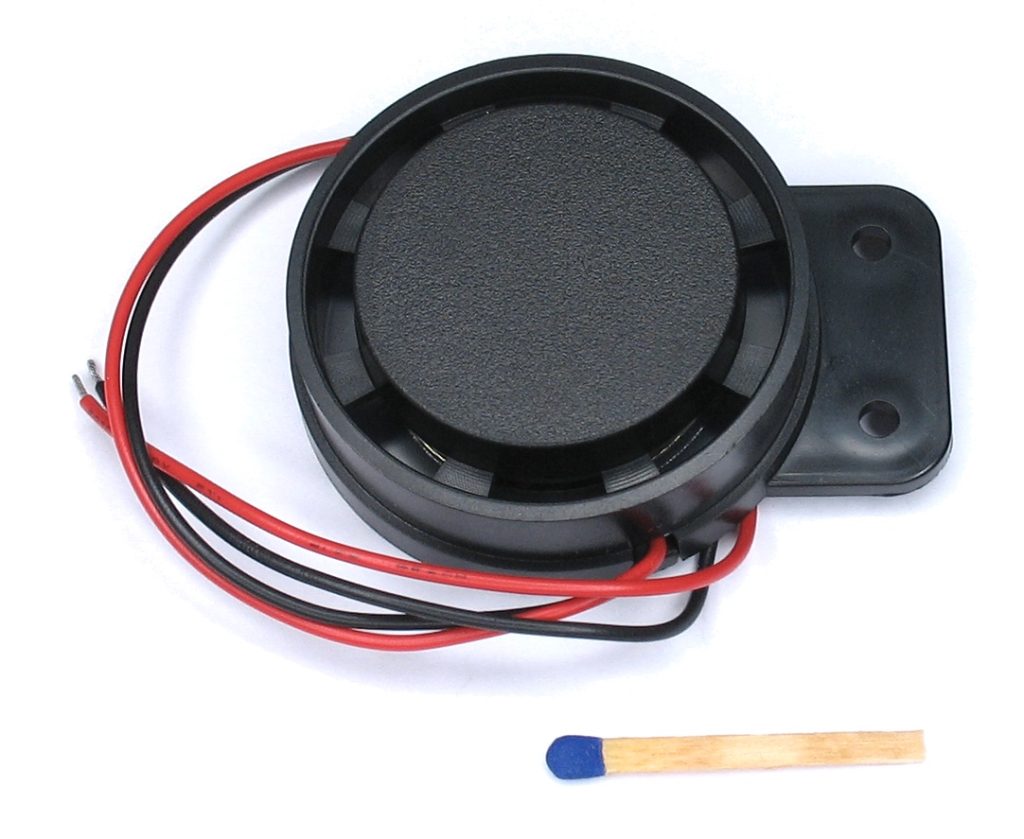

F/M50 L-C-24V

Dimension
Ø55 x 17 mm
Rated Voltage
24 VDC
Operating Voltage
21 - 26 VDC
Sound Pressure Level
105 ±3 dB(A) at 30 cm
Tone
Siren Sound (2- 3.5 kHz)
Operating Temperature
-15 to +60 °C

F/NCMB 06 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

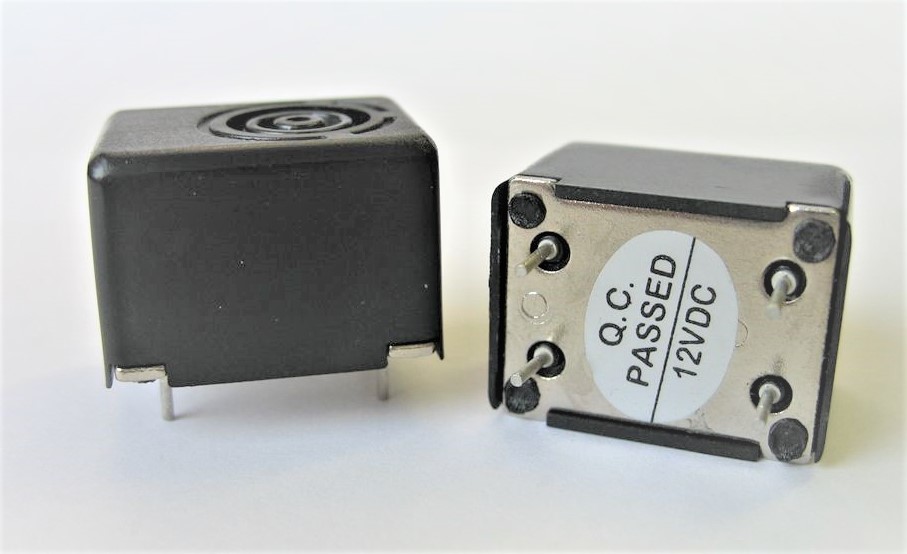

F/NCMB 12 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
12 VDC
Operating Voltage
9 - 15 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

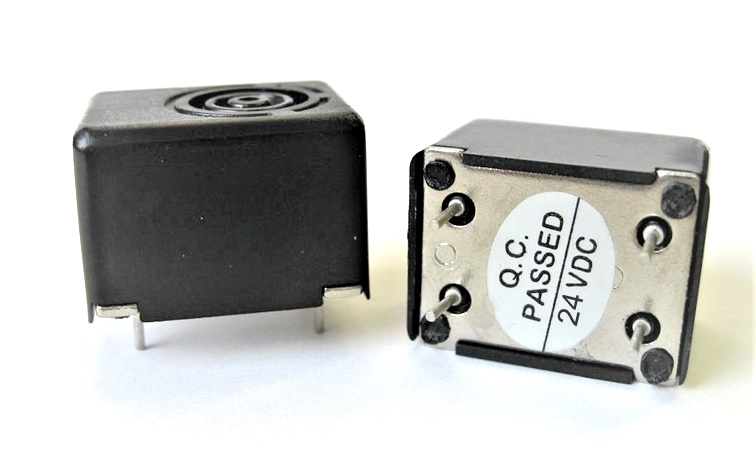

F/NCMB 24 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
24 VDC
Operating Voltage
15 - 27 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

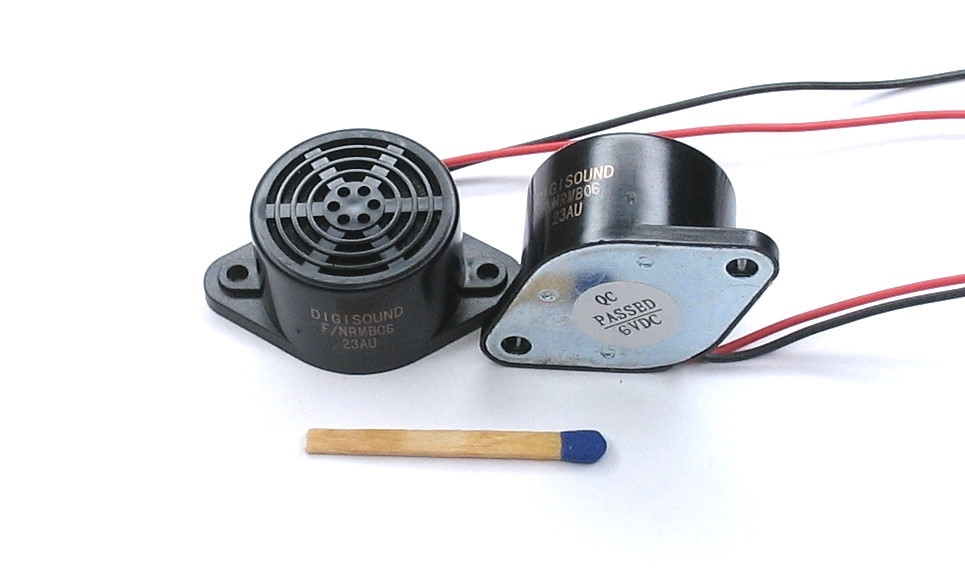

F/NRMB 06 BLACK

Dimension
Ø26.4 x 41 x 17.6 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥75 dB(A) at 1 m
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

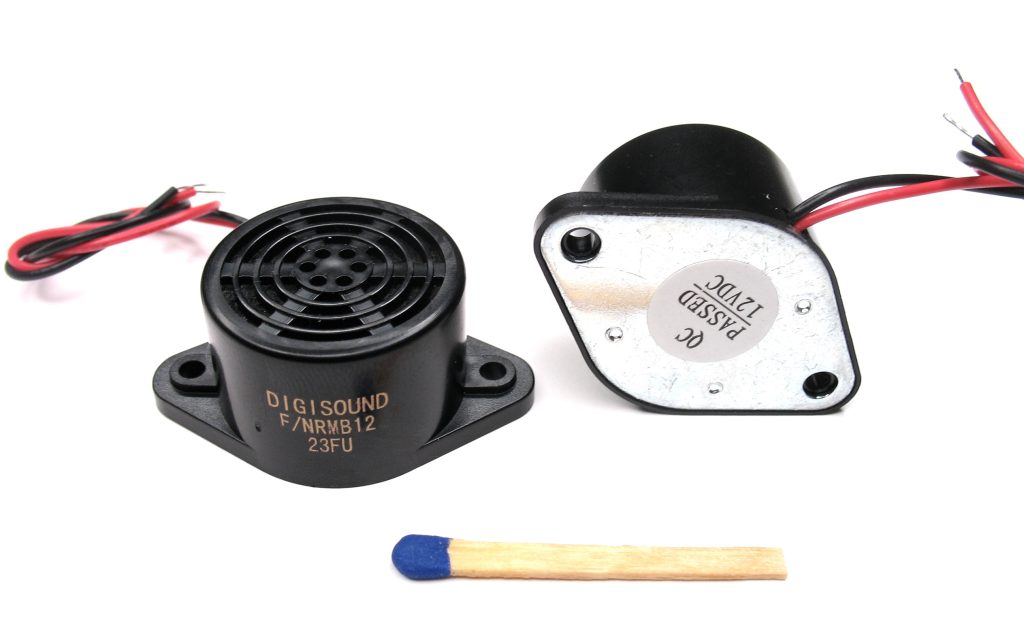

F/NRMB 12 BLACK

Dimension
Ø26.4 x 41 x 17.6 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 16 VDC
Sound Pressure Level
≥75 dB(A) at 1 m
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-20 to +60 °C

F/NRMB 24 BLACK

Dimension
Ø26.4 x 41 x 17.6 mm
Rated Voltage
24 VDC
Operating Voltage
20 - 28 VDC
Sound Pressure Level
≥75 dB(A) at 1 m
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +80 °C

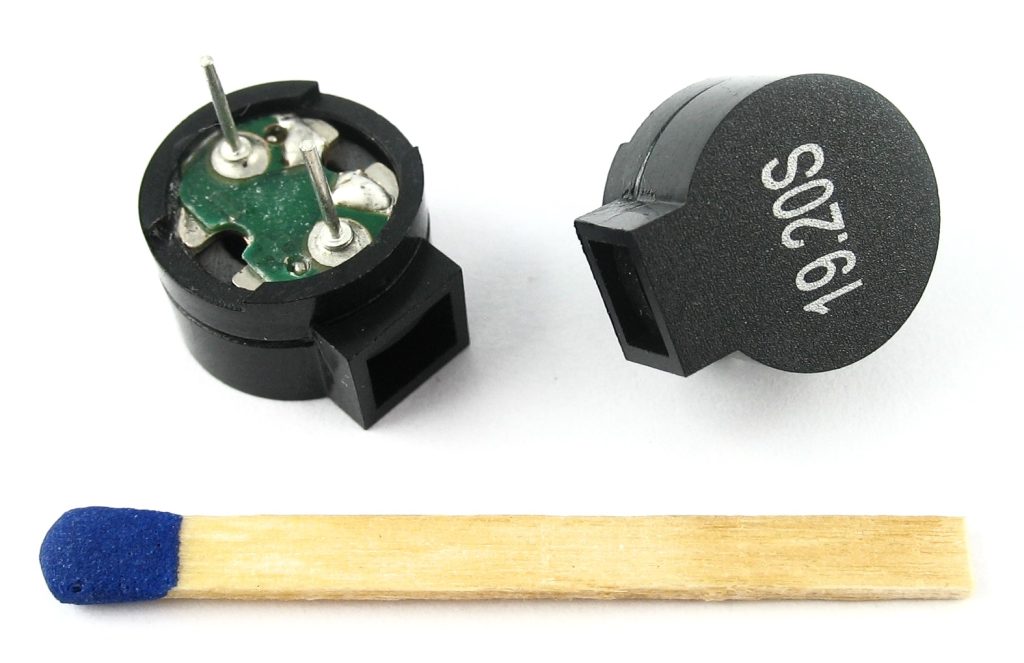

F/PCW-04A

Dimension
Ø12 x 13.5 x 7.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥83 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +60 °C
Resistance
6.5 ±1.5 Ω

F/PWB 06 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

F/PWB 12 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 16 V
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

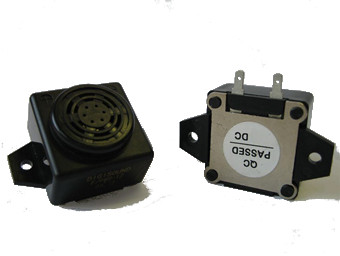

F/PWB 24 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
24 VDC
Operating Voltage
20 - 28 VDC
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

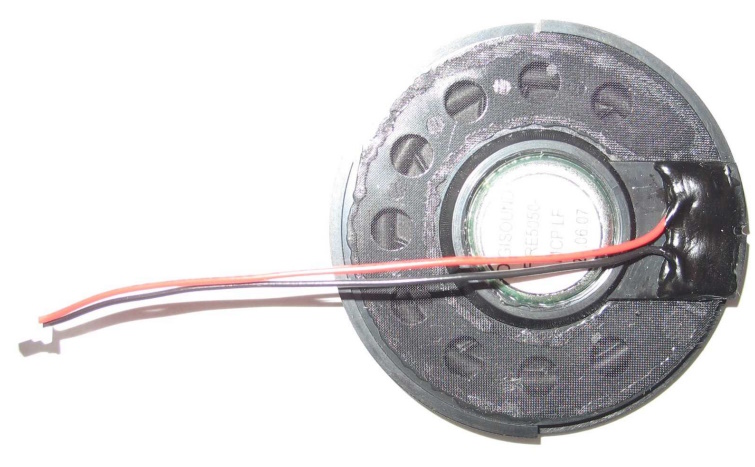

F/RE 5050-MCP W80JST

Dimension
Ø50 x 7.8 mm
Sound Pressure Level
91 ±2 dB(A) at 0.1 m/ 0.1 W
Resonance Frequency (F0)
≤400 Hz at 1 Vrms
Operating Temperature
-25 to +60 °C
Nominal Input Power
0.25 W
Max. Input Power
0.5 W
Impedance
50 ±15% Ω at 20 °C
Frequency Range
220 Hz to 10 kHz

F/SMD 03 A

Dimension
14 x 11 x 3.2 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 4.5 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
3200 Hz
Operating Temperature
-40 to +105 °C
Resistance
19 ±3 Ω

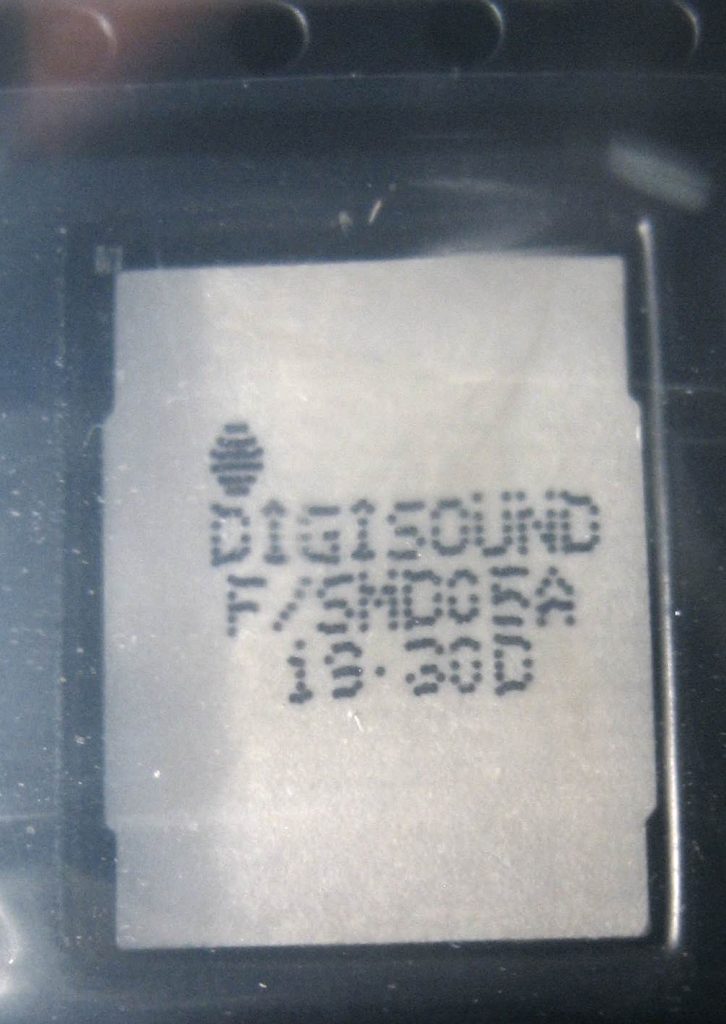

F/SMD 05 A

Dimension
14 x 11 x 3 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2731 Hz
Operating Temperature
-40 to +105 °C
Resistance
40 ±4 Ω

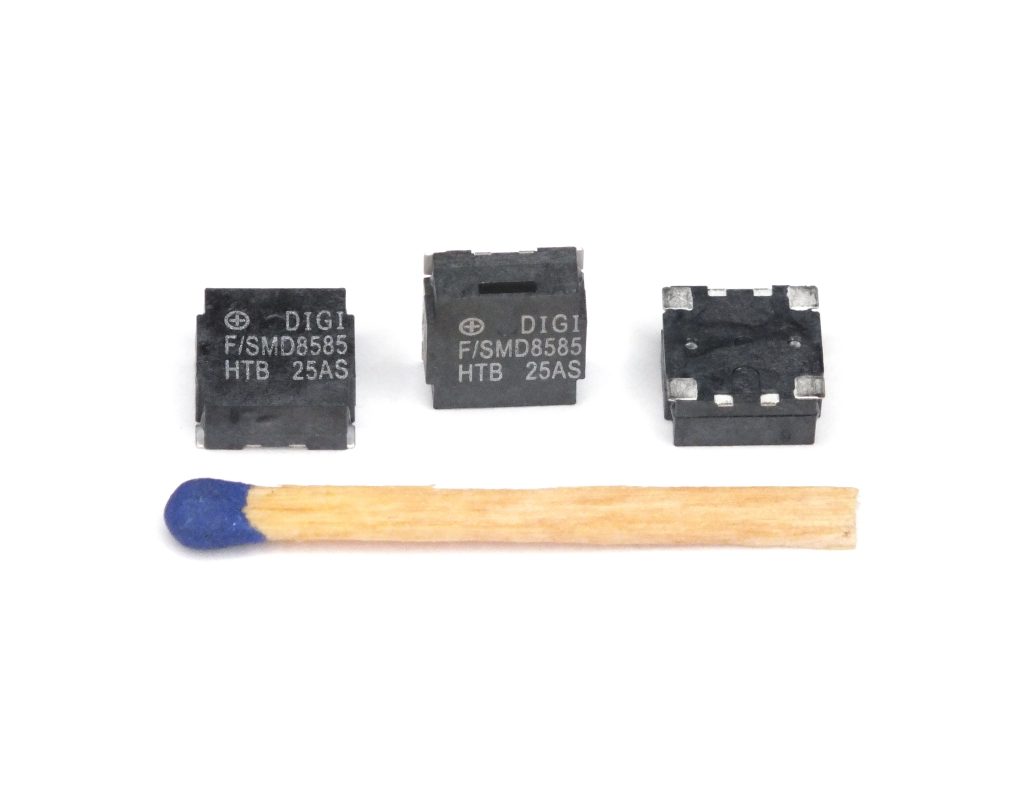

F/SMD8585 HTB

Dimension
8.5 x 8.5 x 3.6 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2730 Hz
Operating Temperature
-40 to +105 °C
Resistance
18 ±3 Ω

F/SMD8585 JS

Dimension
8.5 x 8.5 x 3.6 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2730 Hz
Operating Temperature
-40 to +105 °C
Resistance
18 ±3 Ω

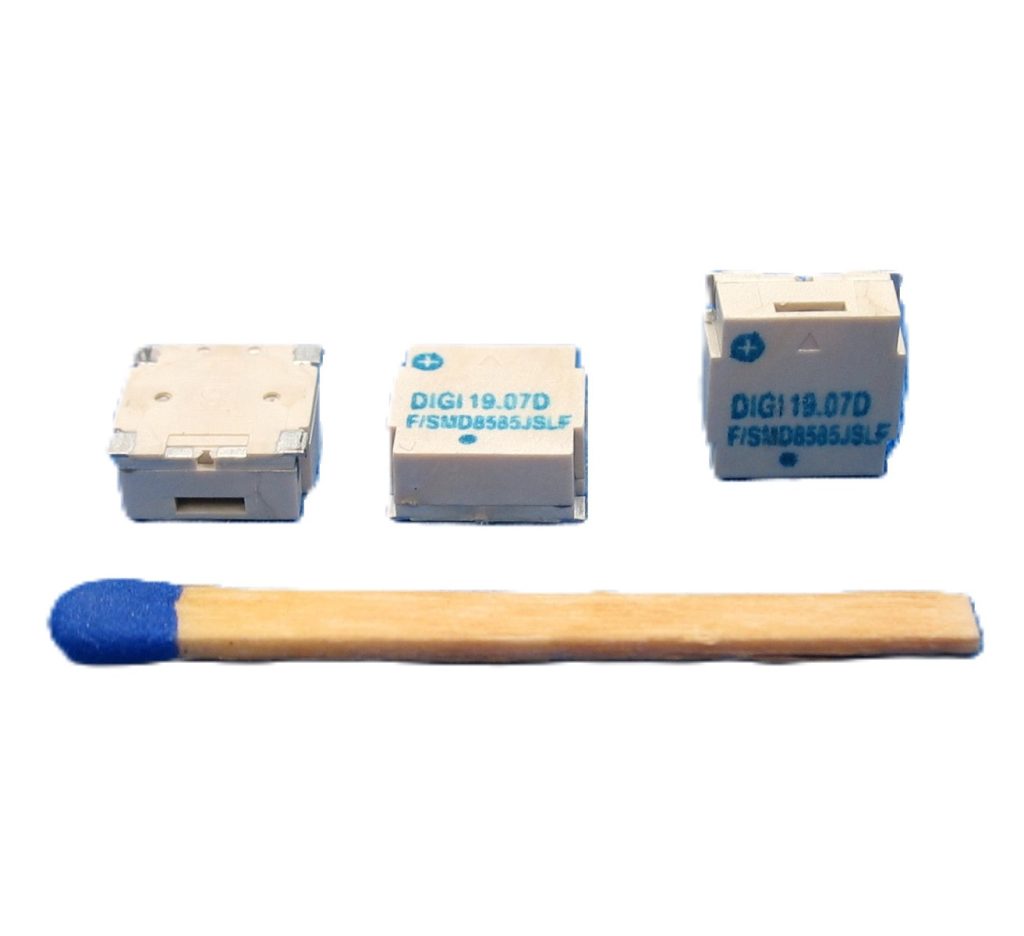

F/SMD8585 JS MAGAZIN

Dimension
8.5 x 8.5 x 3.6 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2730 Hz
Operating Temperature
-40 to +105 °C
Resistance
18 ±3 Ω

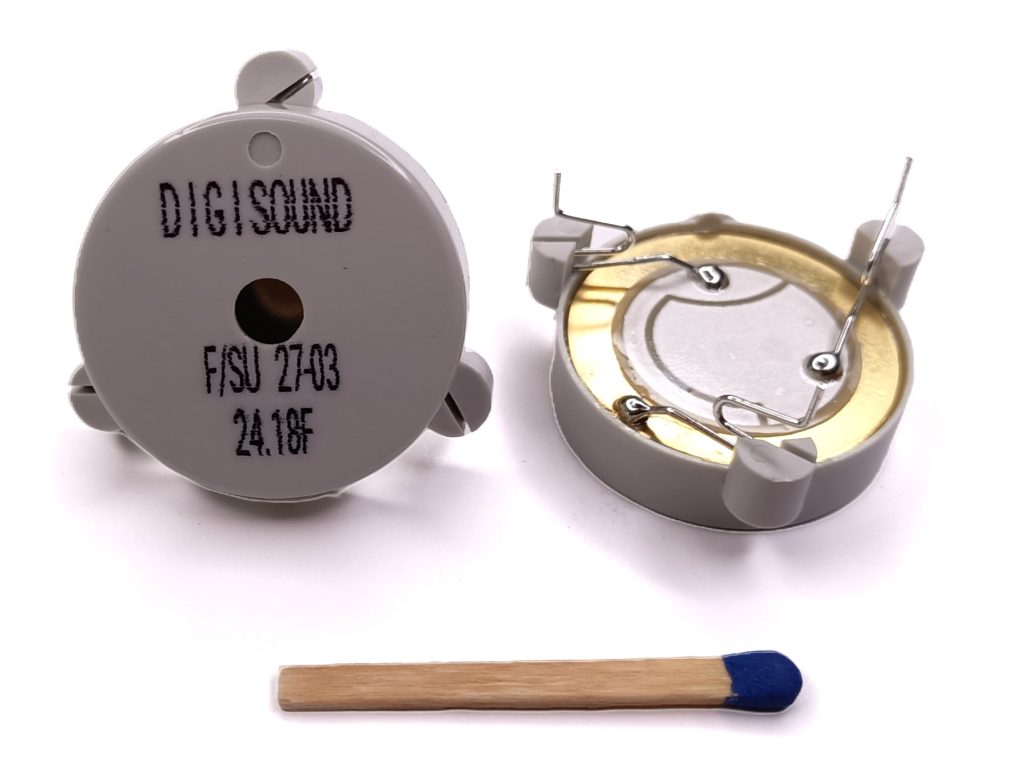

F/SU 27-03

Dimension
Ø28.2 x 13.5 mm
Rated Voltage
12 Vpp
Operating Voltage
3 - 24 Vpp
Sound Pressure Level
≥95 dB(A) at 10 cm
Resonance Frequency (F0)
3000 ±500 Hz
Operating Temperature
-20 to +70 °C

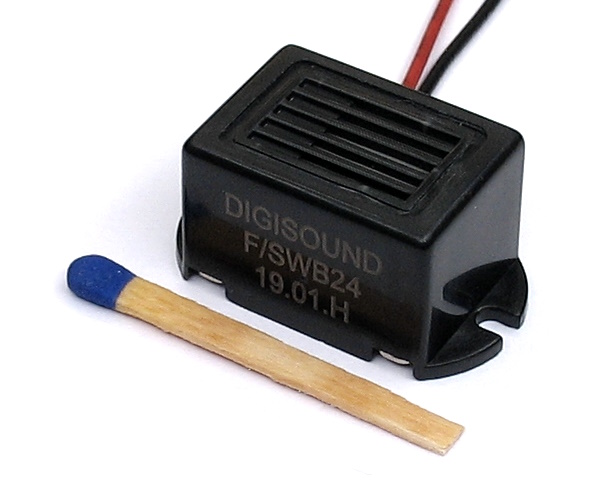

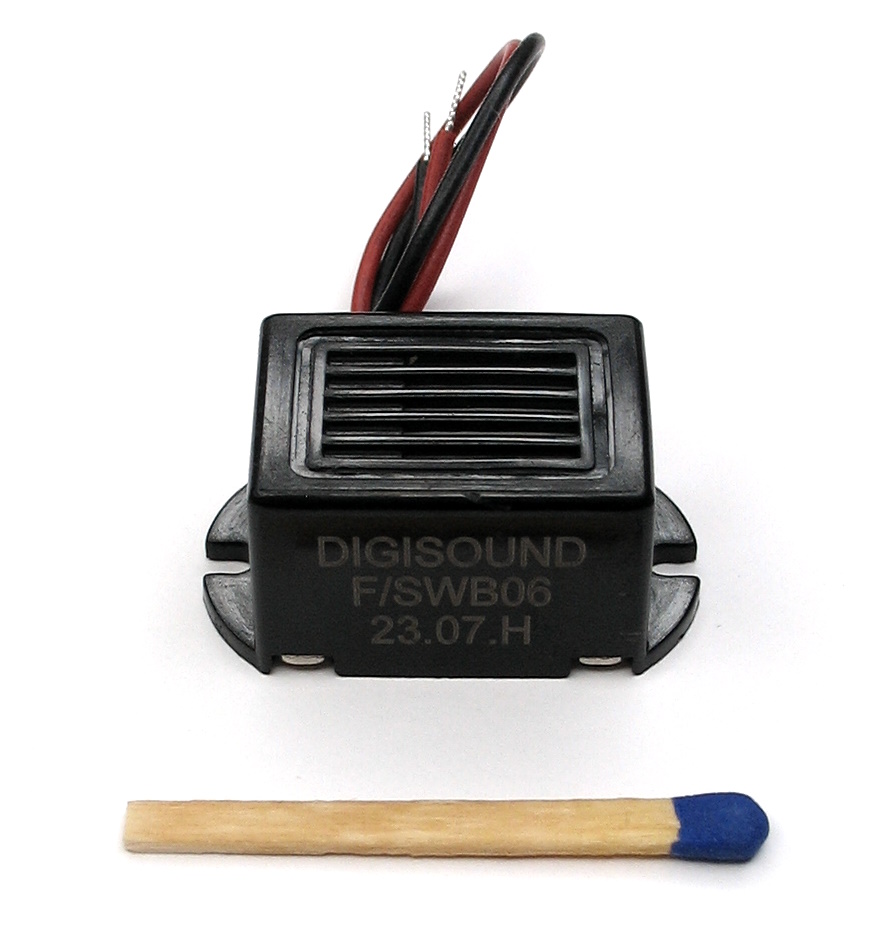

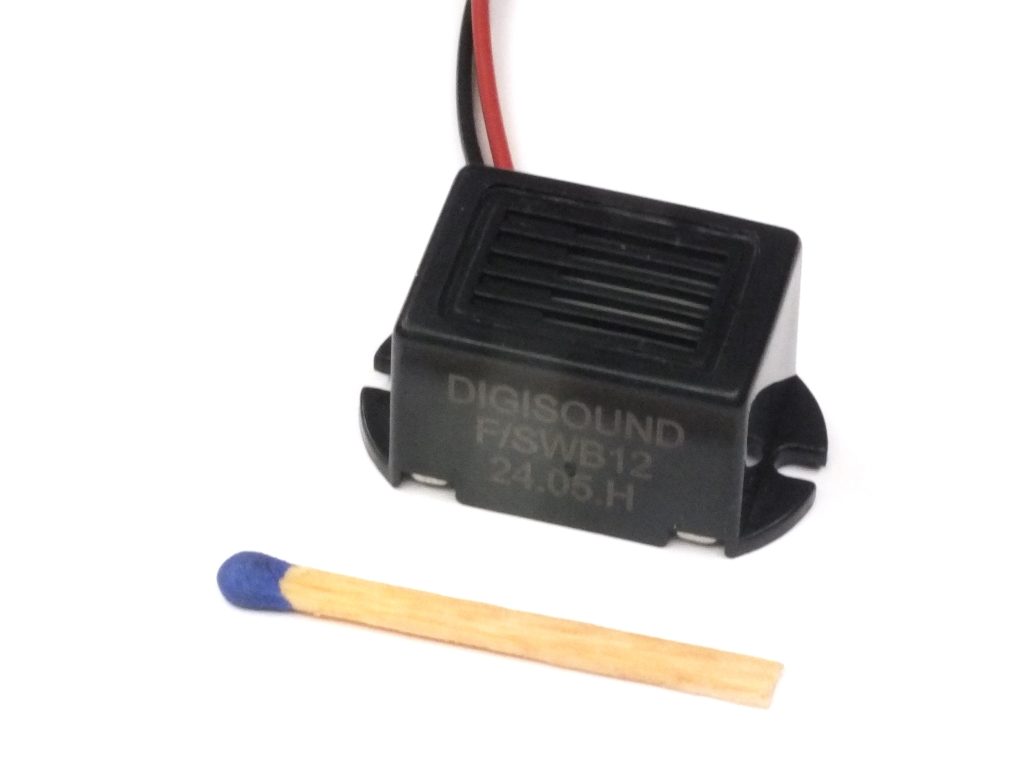

F/SWB Series

Dimension
31 x 17 x 15 mm
Rated Voltage
3, 6, 12 or 24 VDC
Sound Pressure Level
dB(A) at 30 cm ≥80 at 3V, ≥85 at 6V, ≥88 at 12V or ≥90 at 24V
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-20 to +70 °C

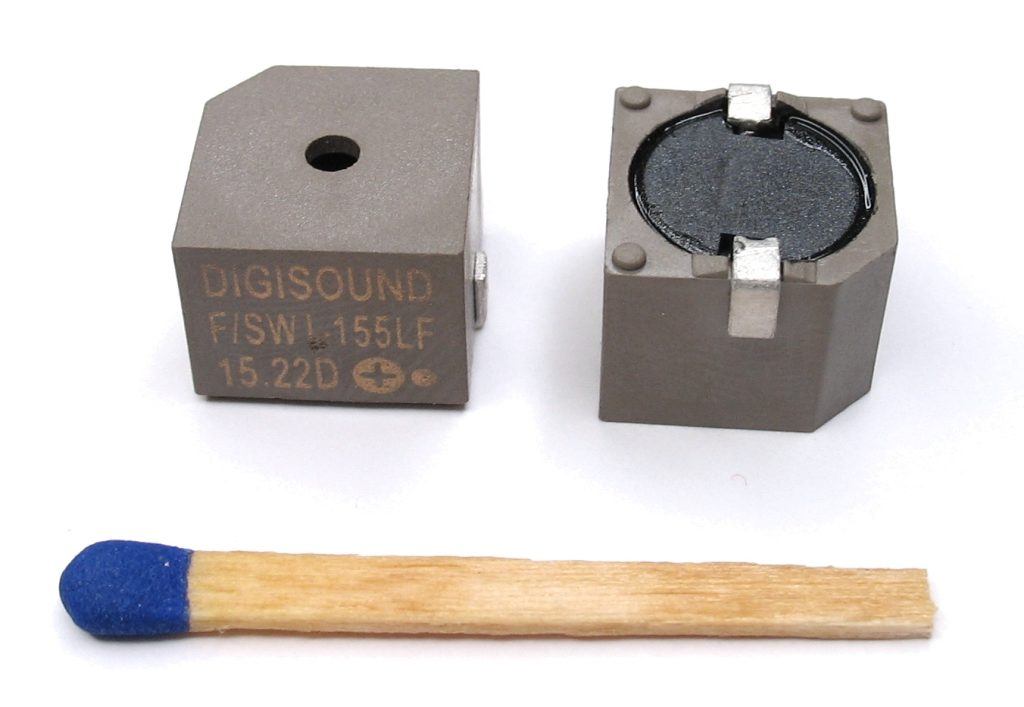

F/SWI 155

Dimension
12.8 x 12.8 x 10 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

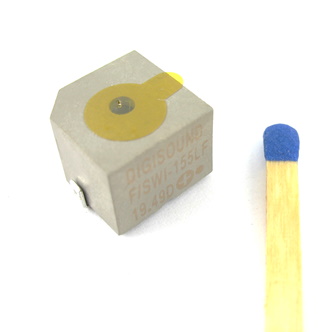

F/SWI 155-01

Dimension
12.8 x 12.8 x 10 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

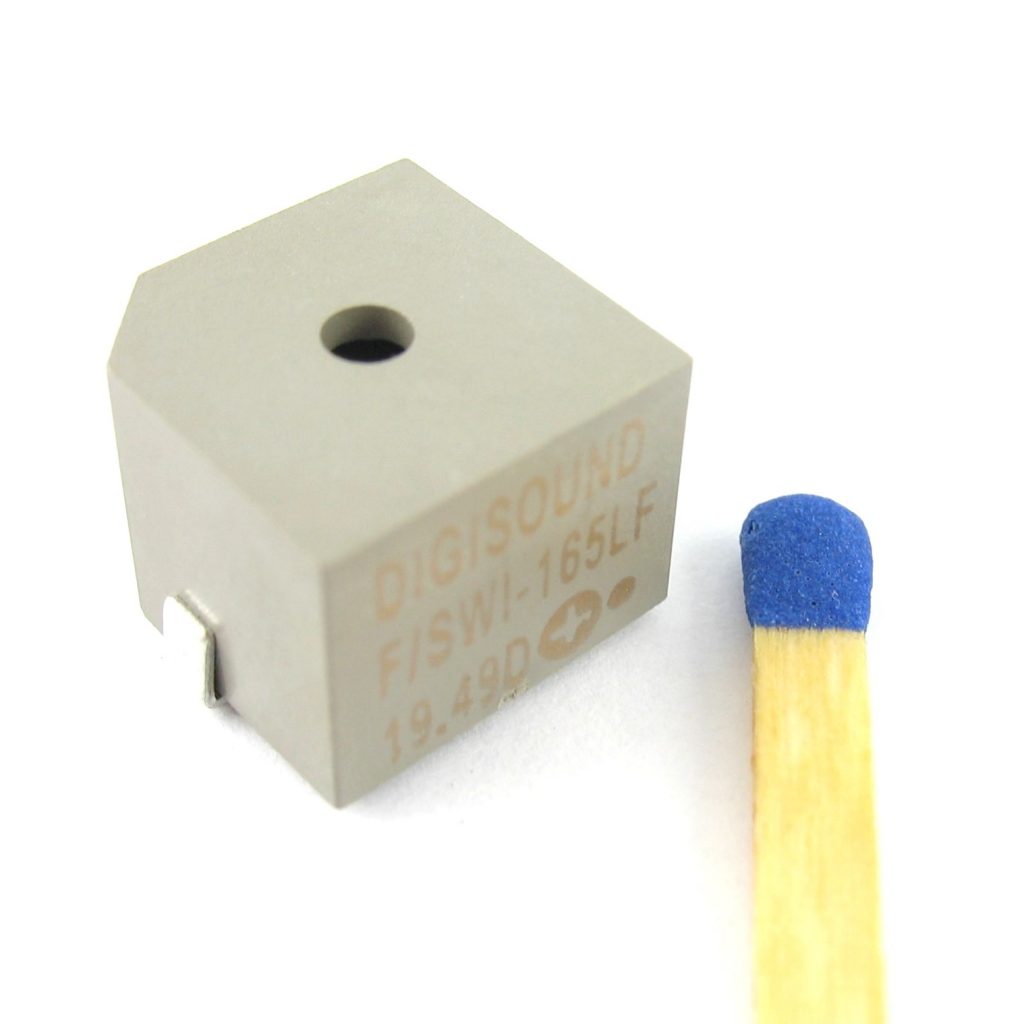

F/SWI 165
