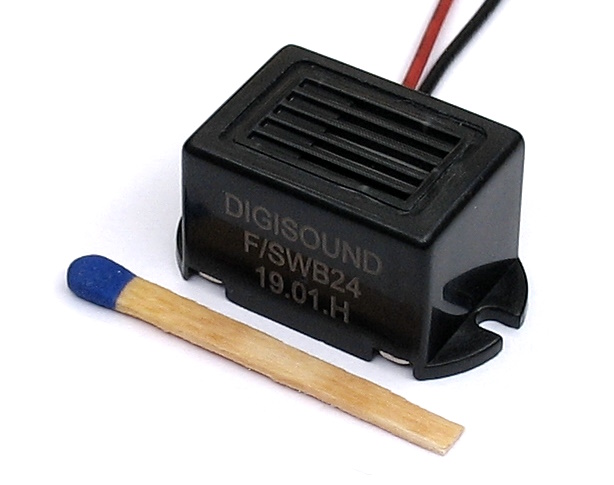

F/SWB Series
Dimension
31 x 17 x 15 mm
31 x 17 x 15 mm
Rated Voltage
3, 6, 12 or 24 VDC
3, 6, 12 or 24 VDC
Sound Pressure Level
dB(A) at 30 cm ≥80 at 3V, ≥85 at 6V, ≥88 at 12V or ≥90 at 24V
dB(A) at 30 cm ≥80 at 3V, ≥85 at 6V, ≥88 at 12V or ≥90 at 24V
Tone
Continuous Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
400 ±100 Hz
Operating Temperature
-20 to +70 °C
-20 to +70 °C
