SMD Loudspeaker

Sort products by

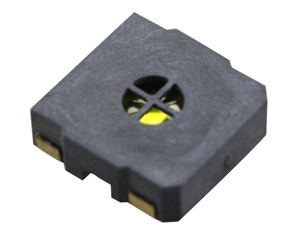

F-L-SC1308-0.7W

Dimension
13 x 13 x 4 mm

Sound Pressure Level
88 ±3 dB(A) at 0.7 W / 0.1 m

Resonance Frequency (F0)
1100 ±20% Hz at 1.0 V

Operating Temperature
-40 to +85 °C

Nominal Input Power
0.7 W

Max. Input Power
1 W

Impedance
8 ±15% Ω at 2.0 kHz

Frequency Range
F0 to 10 kHz (Output SPL -10 dB)

Dimension
15 x 15 x 4 mm

Sound Pressure Level
89 ±3 dB(A) at 0.5 W / 0.1 m

Resonance Frequency (F0)
900 ±20% Hz

Operating Temperature
-30 to +85 °C

Nominal Input Power
0.3 W

Max. Input Power
0.5 W

Impedance
8 ±15% Ω at 2.0 kHz

Frequency Range
F0 to 20 kHz

Dimension
15 x 15 x 4 mm

Sound Pressure Level
87 ±3 dB(A) at 0.5 W / 0.1 m

Resonance Frequency (F0)
850 ±20% Hz at 1.0 V

Operating Temperature
-40 to +85 °C

Nominal Input Power
0.5 W

Max. Input Power
0.8 W

Impedance
8 ±15% Ω at 2.0 kHz

Frequency Range
F0 to 20 kHz (Output SPL -10 dB)

...
