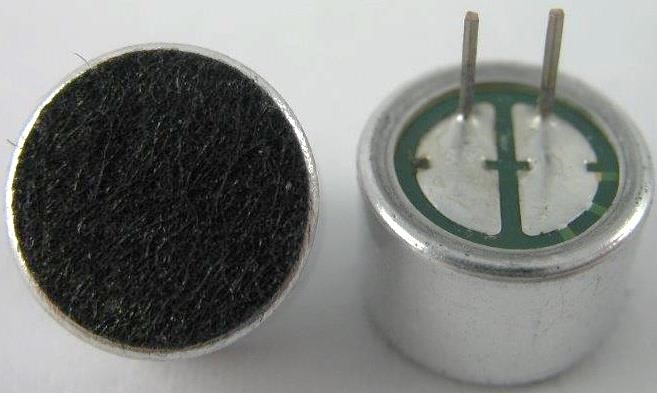

F-M-O9.7-39.5PC-TIN
Dimension
Ø9.7 x 6.5 mm
Ø9.7 x 6.5 mm
Operating Voltage
1.5 V
1.5 V
Operating Temperature
-20 to +60 °C
-20 to +60 °C
Max. Input Voltage
10 V
10 V
Resistance
Loading Resistance (RL) 1 kΩ
Loading Resistance (RL) 1 kΩ
Impedance
Low Impedance
Low Impedance
Frequency Range
50 - 16,000 Hz
50 - 16,000 Hz
Directivity
Omni-Directional
Omni-Directional
Sensitivity
-39.5 ±2 dB
-39.5 ±2 dB
