F/HCW 06 WITH LABEL

Dimension
Ø16 x 14 mm

Rated Voltage
6 VDC

Operating Voltage
4 - 8 VDC

Sound Pressure Level
≥90 dB(A) at 10 cm

Oscillator Frequency
2200 ±300 Hz

Operating Temperature
-40 to +85 °C

F/HCW 12 WITH LABEL

Dimension
Ø16 x 14 mm

Rated Voltage
12 VDC

Operating Voltage
7 - 15 VDC

Sound Pressure Level
≥90 dB(A) at 10 cm

Oscillator Frequency
2200 ±300 Hz

Operating Temperature
-40 to +85 °C

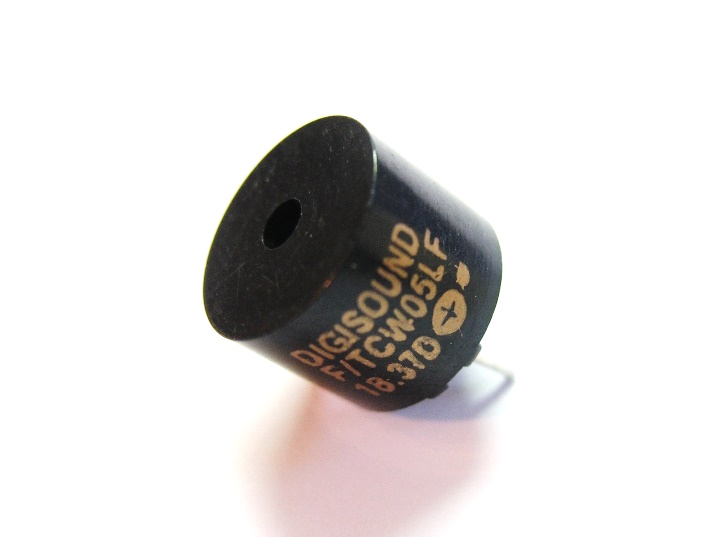

F/TCW 05 w/o LABEL

Dimension
Ø11.8 x 9.5 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 7 VDC

Sound Pressure Level
≥88 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/TCW 05 WITH LABEL

Dimension
Ø11.8 x 9.5 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 7 VDC

Sound Pressure Level
≥88 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/TCW 12 WITH LABEL

Dimension
Ø12 x 9.5 mm

Rated Voltage
12 VDC

Operating Voltage
7 - 15 VDC

Sound Pressure Level
≥88 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/UCW 03 WITH LABEL

Dimension
Ø12 x 7.5 mm

Rated Voltage
3 VDC

Operating Voltage
2 - 5 VDC

Sound Pressure Level
≥83 dB(A) at 10 cm

Oscillator Frequency
2400 ±300 Hz

Operating Temperature
-40 to +85 °C

F/UCW 06 WITH LABEL

Dimension
Ø12 x 7.5 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 6.5 VDC

Sound Pressure Level
≥85 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/UCW 12 WITH LABEL

Dimension
Ø12 x 7.5 mm

Rated Voltage
12 VDC

Operating Voltage
9 - 15 VDC

Sound Pressure Level
≥88 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/UCW06-01

Dimension
Ø12 x 7.5 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 6.5 VDC

Sound Pressure Level
≥85 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/UCW06-03WITH LABEL

Dimension
Ø12 x 7.5 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 6.5 VDC

Sound Pressure Level
≥85 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

Magnetic-THT-Buzzer with oscillator

F/HCW 06 WITH LABEL

F/HCW 12 WITH LABEL

F/TCW 05 w/o LABEL

F/TCW 05 WITH LABEL

F/TCW 12 WITH LABEL

F/UCW 03 WITH LABEL

F/UCW 06 WITH LABEL

F/UCW 12 WITH LABEL

F/UCW06-01

F/UCW06-03WITH LABEL

Web content in constant progress. For further products please contact us.
