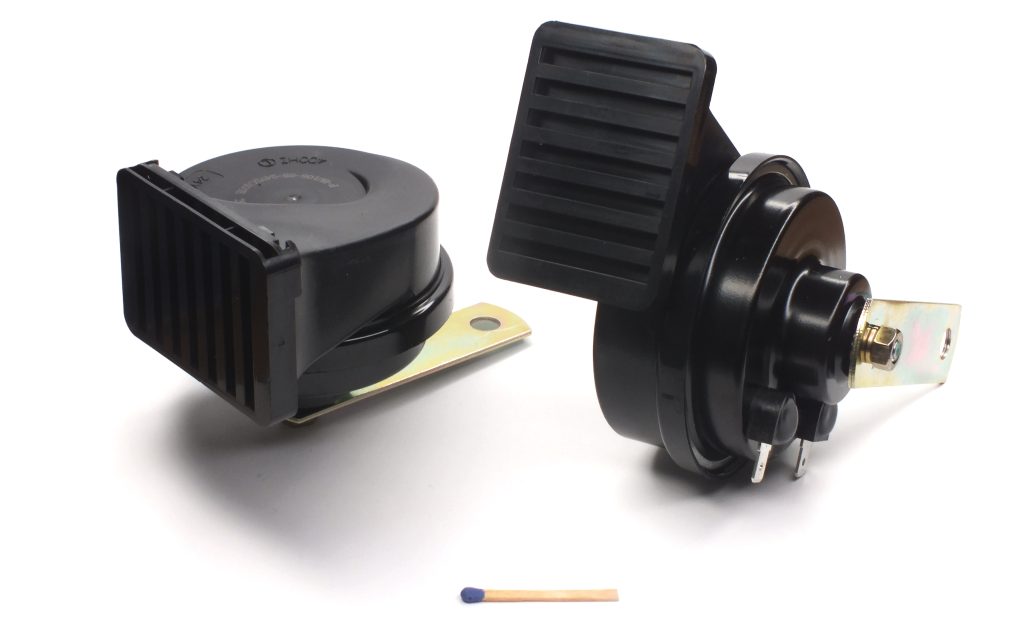

F-HU105-88-24VDC400E
Dimension
128 x 101 x 88 mm
128 x 101 x 88 mm
Rated Voltage
24 VDC
24 VDC
Operating Voltage
18 - 32 VDC
18 - 32 VDC
Sound Pressure Level
105 - 118 dB(A) at 1 m distance
105 - 118 dB(A) at 1 m distance
IP Rating
IP67
IP67
Oscillator Frequency
400 ±20 Hz
400 ±20 Hz
Operating Temperature
-40 to +85 °C
-40 to +85 °C
