Piezo-SMD-Buzzer without oscillator

Sort products by

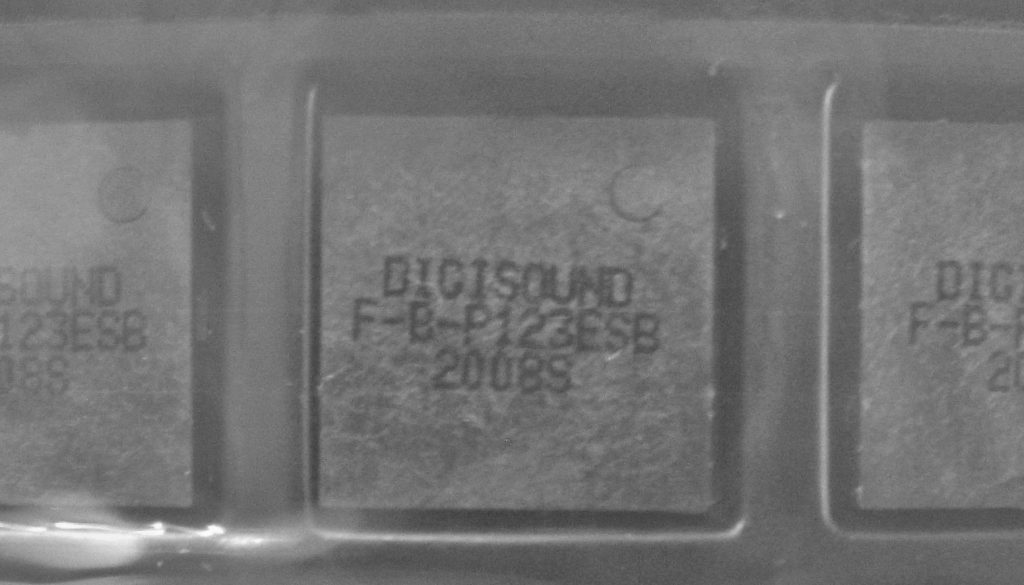

F-B-P123ESB

Dimension
12 x 12 x 3 mm

Rated Voltage
3 Vpp

Operating Voltage
≤25 Vpp

Sound Pressure Level
≥75 dB(A) at 10 cm

Resonance Frequency (F0)
4,000 ±500 Hz

Operating Temperature
-30 to +85 °C

Dimension
16.5 x 16 x 2.5 mm

Rated Voltage
3 Vpp

Sound Pressure Level
≥75 dB(A) at 10 cm

Resonance Frequency (F0)
4000 Hz

Operating Temperature
-40 to +120 °C

Dimension
Ø17 x 6 mm

Rated Voltage
5 Vpp

Operating Voltage
1 to 30 Vpp

Sound Pressure Level
≥85 dB(A) at 10 cm

Resonance Frequency (F0)
4,000 ±500 Hz

Operating Temperature
-30 to +85 °C

...
