Magnetic-SMD-Buzzer with oscillator

Sort products by

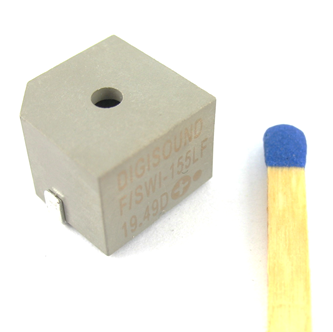

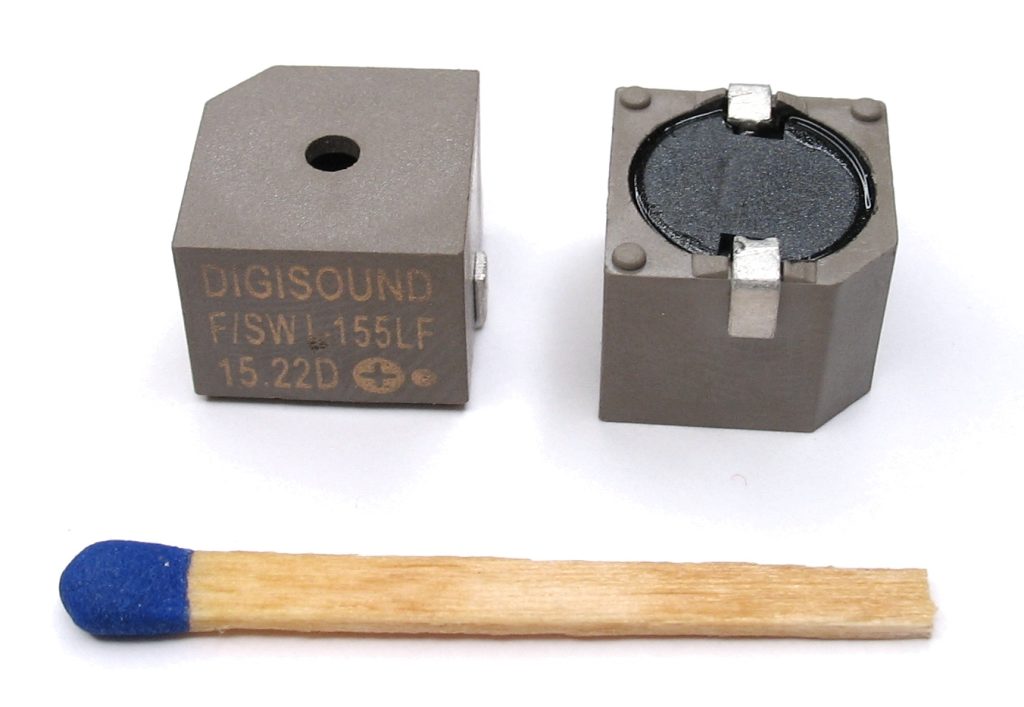

F/SWI 155

Dimension
12.8 x 12.8 x 10 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 6.5 VDC

Sound Pressure Level
≥90 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/SWI 155-01

Dimension
12.8 x 12.8 x 10 mm

Rated Voltage
5 VDC

Operating Voltage
3 - 6.5 VDC

Sound Pressure Level
≥90 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/SWI 165

Dimension
12.8 x 12.8 x 10 mm

Rated Voltage
12 VDC

Operating Voltage
8 - 15 VDC

Sound Pressure Level
≥90 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

F/SWI 165-01

Dimension
12.8 x 12.8 x 10 mm

Rated Voltage
12 VDC

Operating Voltage
8 - 15 VDC

Sound Pressure Level
≥90 dB(A) at 10 cm

Oscillator Frequency
2300 ±300 Hz

Operating Temperature
-40 to +85 °C

Web content in constant progress. For further products please contact us.

...
