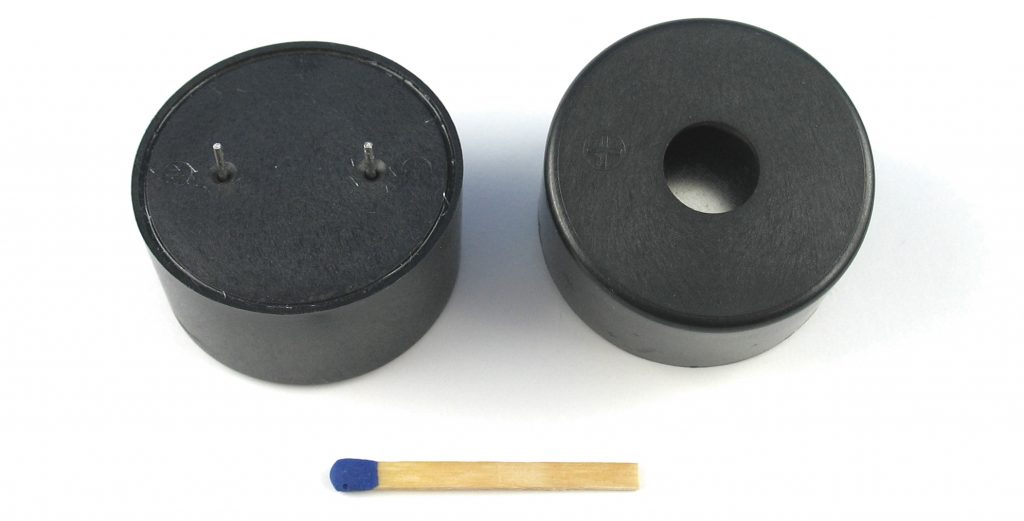

F-B-C40-105

Dimension
Ø40 x 20 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥105 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3200 ±500 Hz
Operating Temperature
-20 to +70 °C

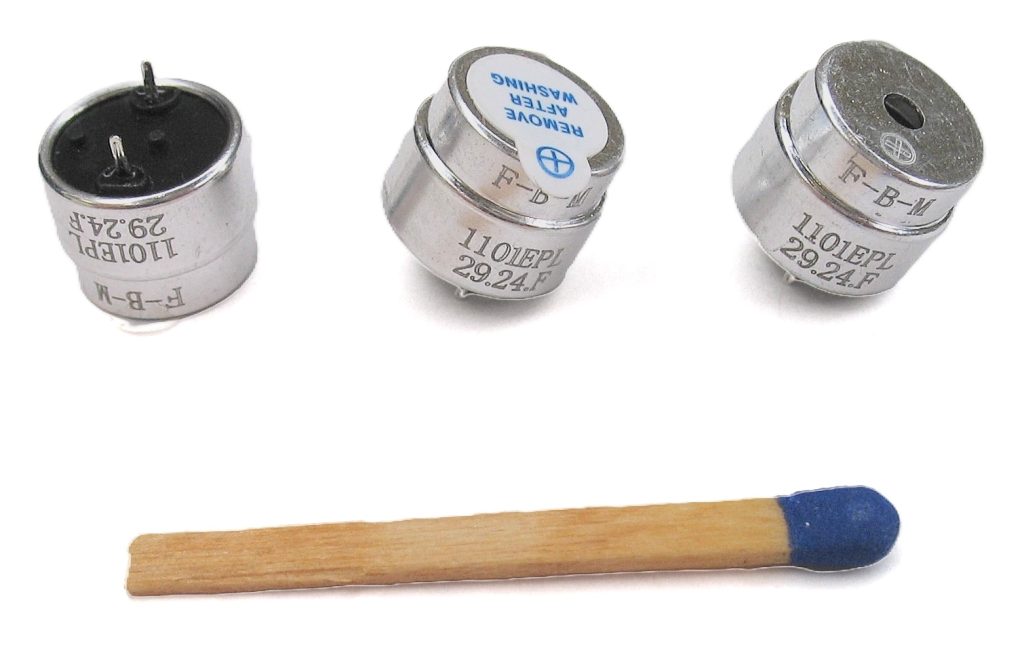

F-B-M1101EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1-2 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
16 ±4 Ω

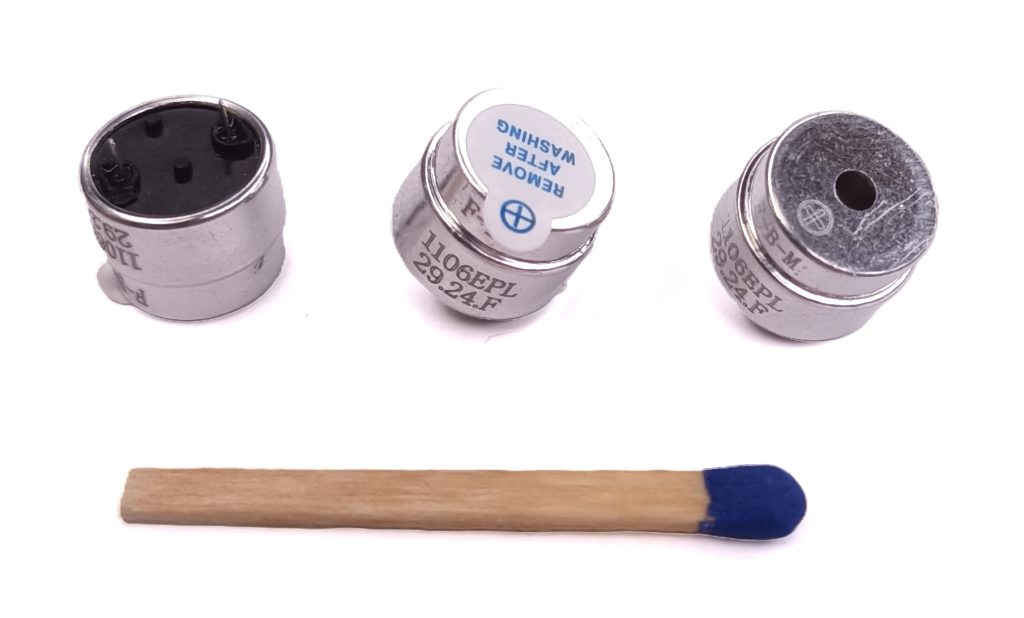

F-B-M1106EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
5-7 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
42 ±4 Ω

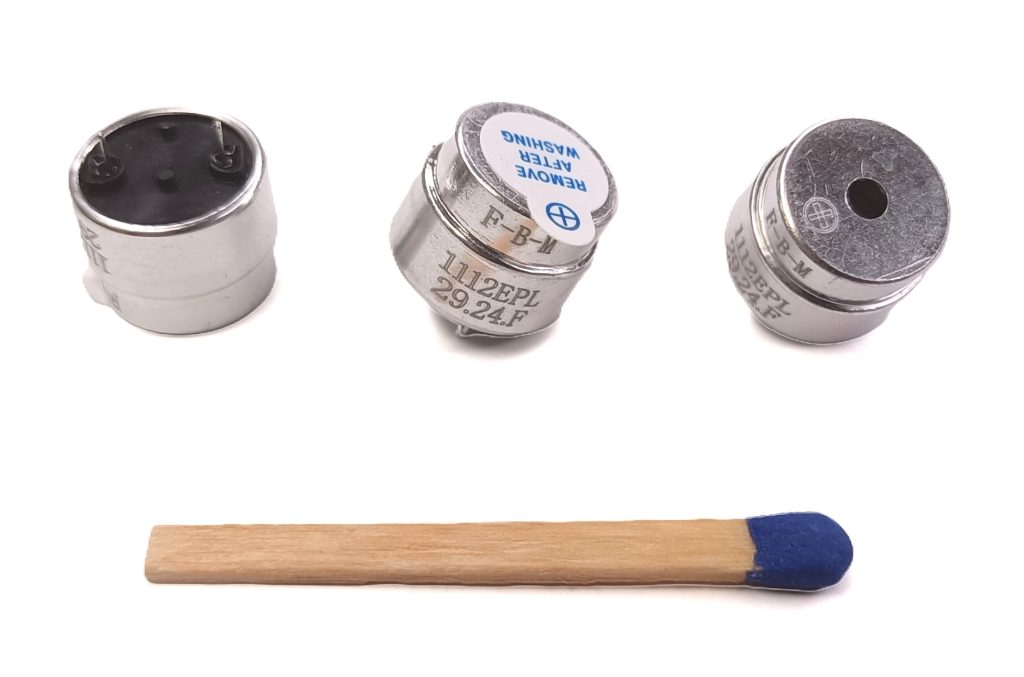

F-B-M1112EPL

Dimension
Ø11.4 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 15 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±14 Ω

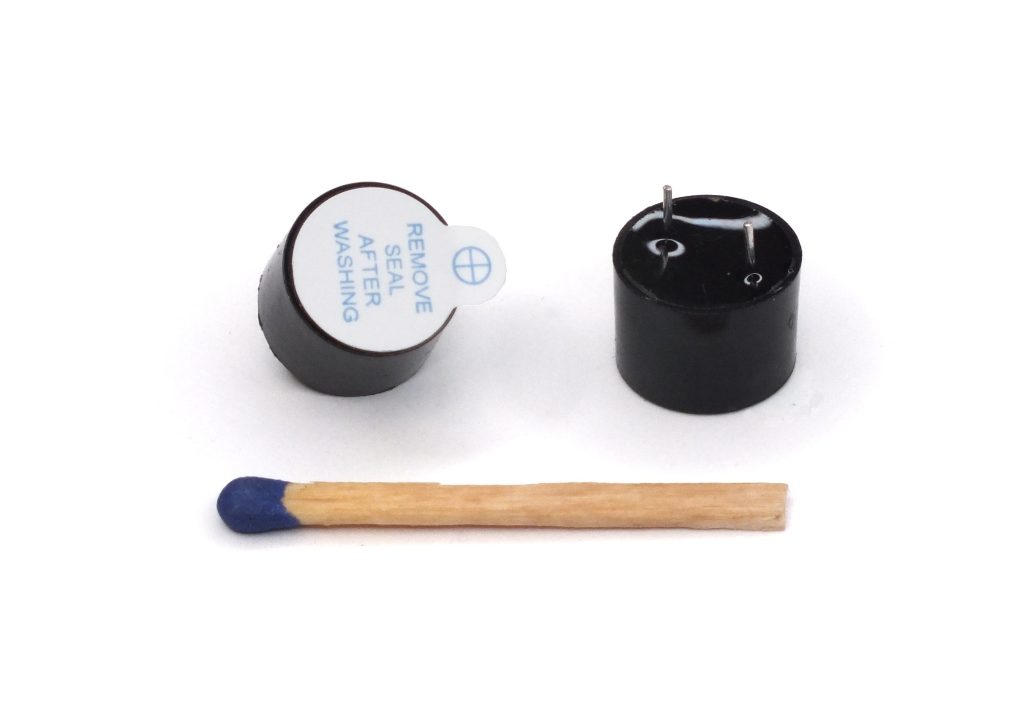

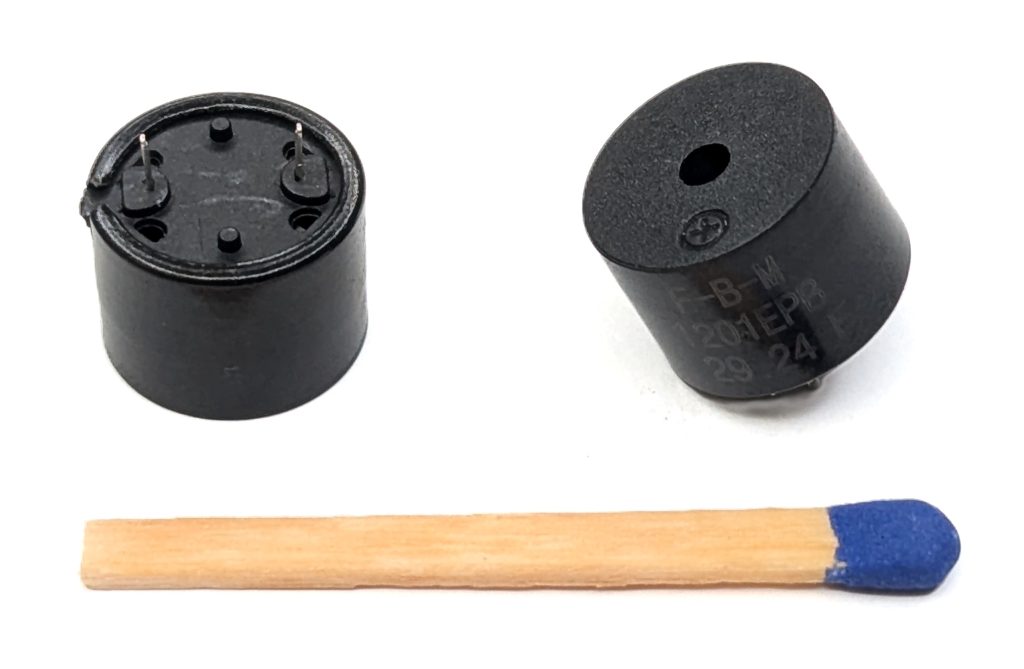

F-B-M1201EPB

Dimension
Ø12 x 9 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1-2 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
16 ±4 Ω

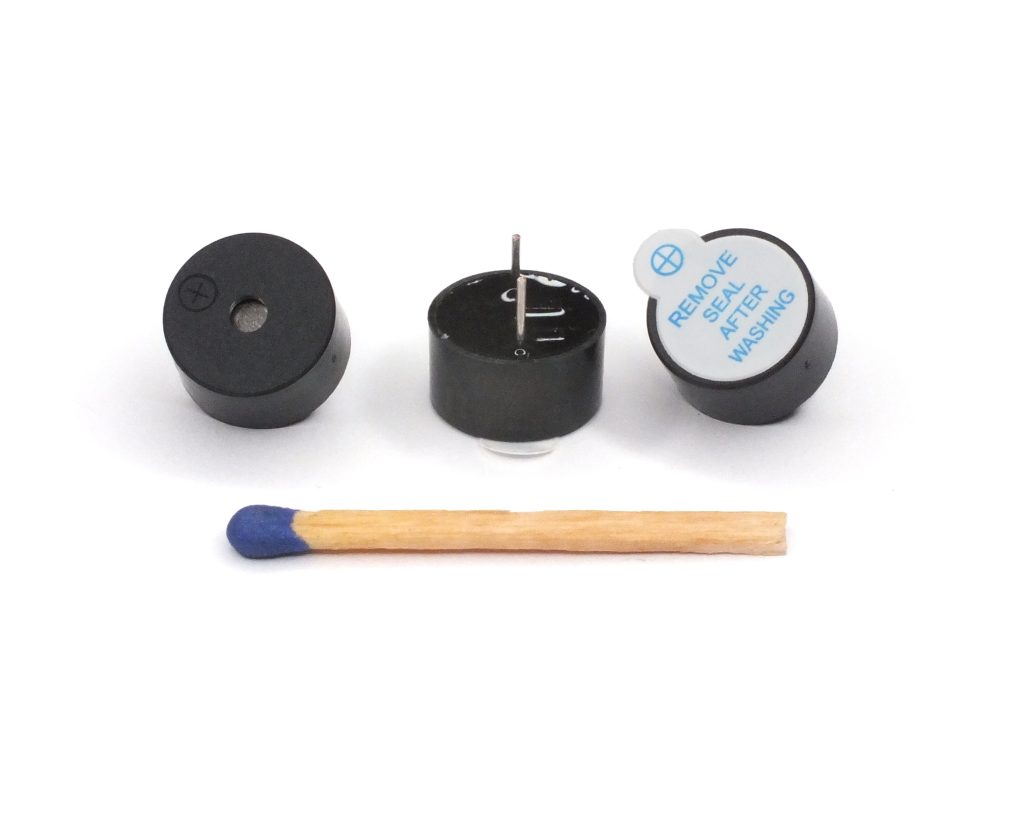

F-B-M1205IPB-2.3

Dimension
Ø12 x 6.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 8 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

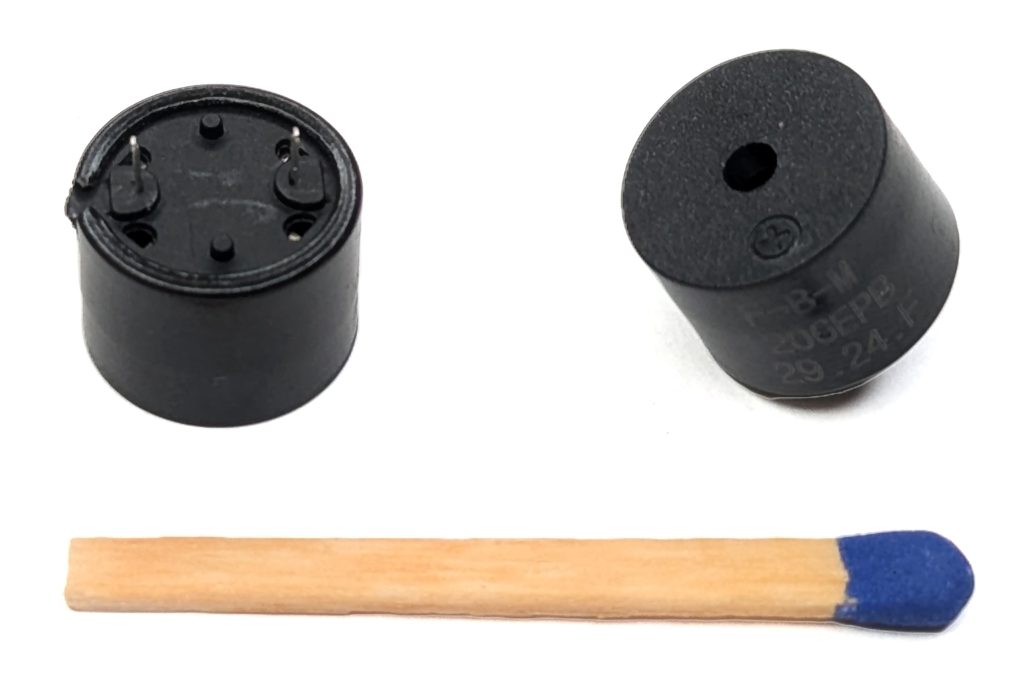

F-B-M1206EPB

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
5-7 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
42 ±4 Ω

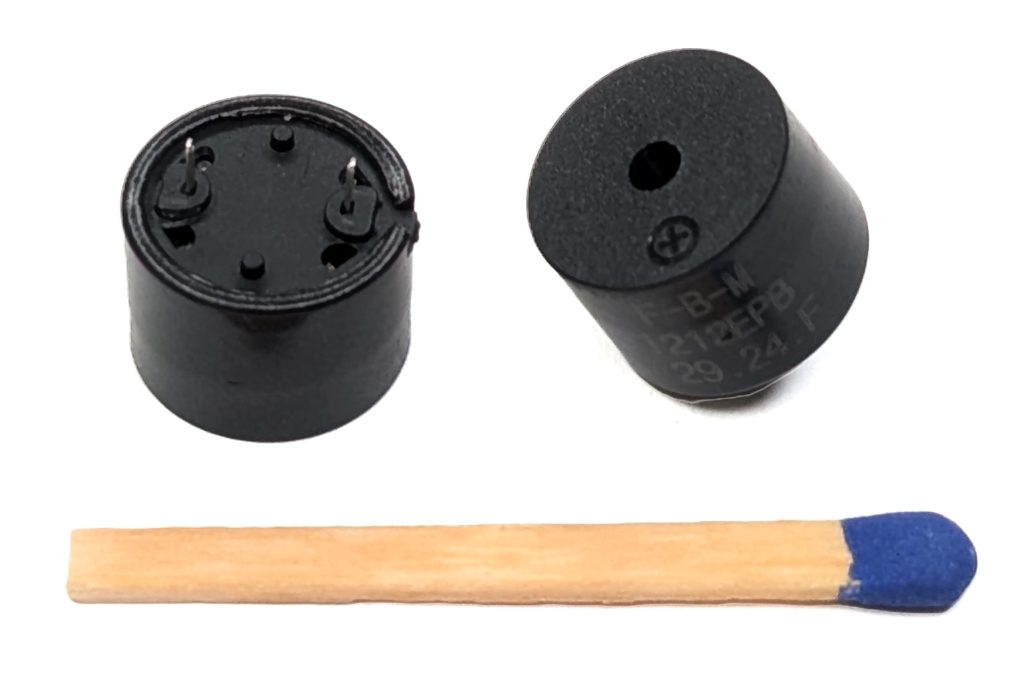

F-B-M1212EPB

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 15 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±14 Ω

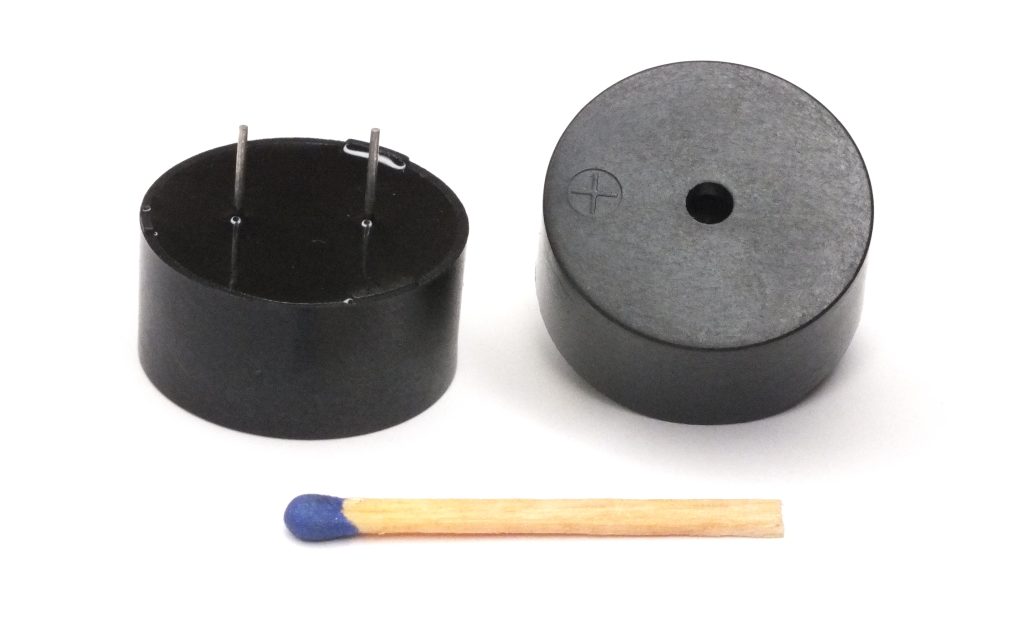

F-B-M2512EPB

Dimension
Ø24.5 x 12.8 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 16 Vo-p
Sound Pressure Level
99 ±7 dB(A) at 1000 Hz 50% duty square wave
Resonance Frequency (F0)
1000 Hz
Operating Temperature
-30 to +85 °C
Resistance
115 ±10 Ω

F-B-P1303EPB-02

Dimension
Ø12.8 x 6.3 mm
Rated Voltage
3 Vpp
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-20 to +105 °C
Max. Input Voltage
30 Vpp

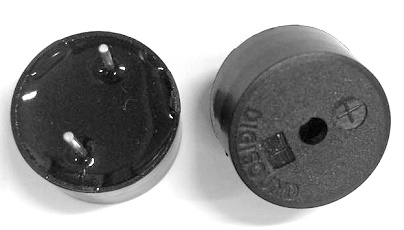

F-B-P1412IPL

Dimension
Ø13.8 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 16 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
4000 ±500 Hz
Operating Temperature
-40 to +85 °C

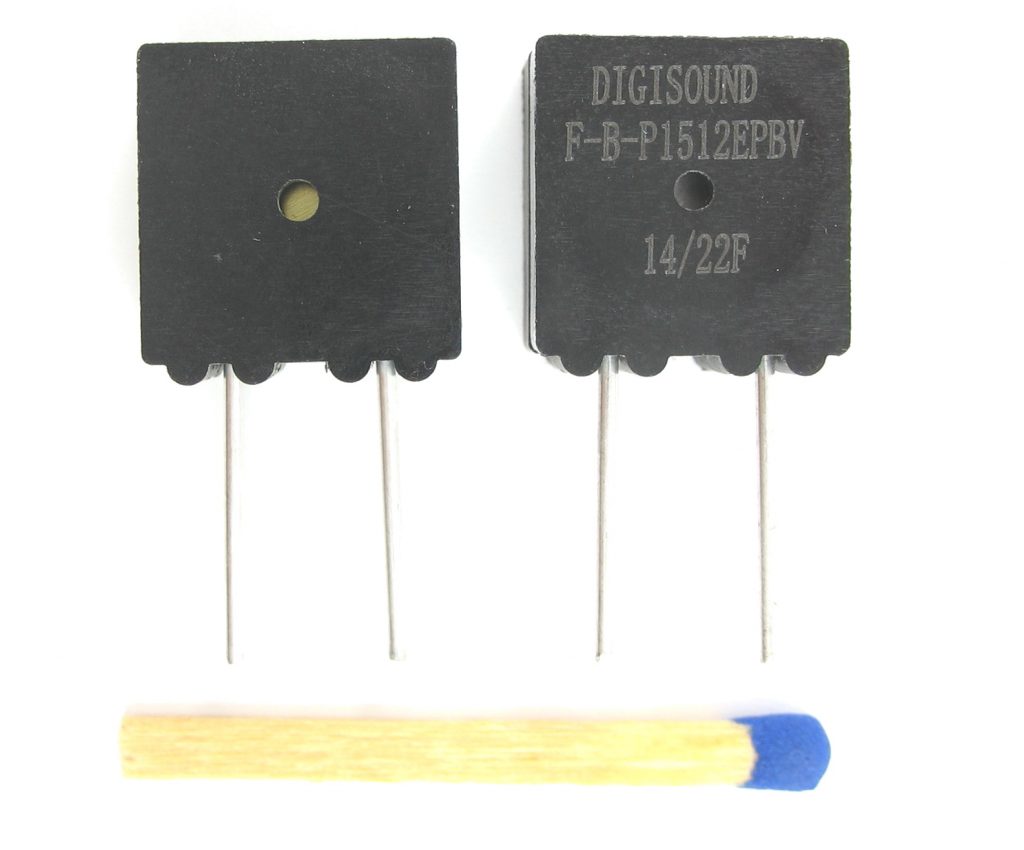

F-B-P1512EPBV

Dimension
15 x 15 x 8.5 mm
Rated Voltage
12 Vpp
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
400 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
25 Vpp

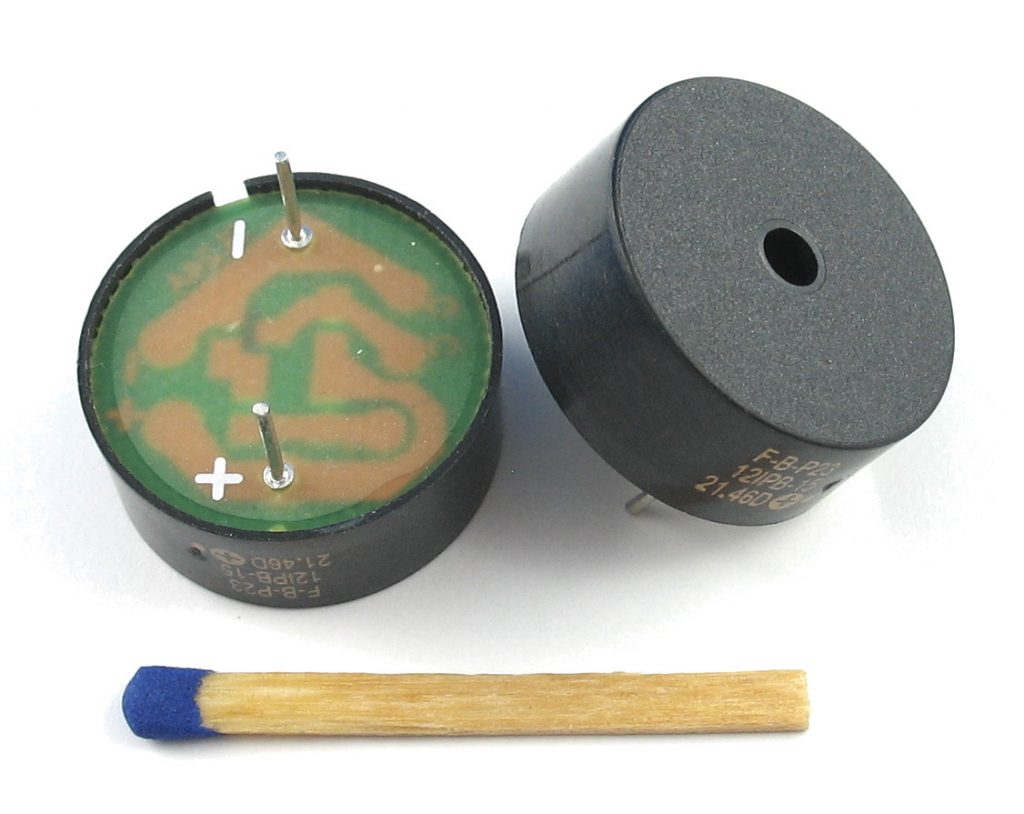

F-B-P2312IPB-15

Dimension
Ø23.2 x 9.2 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3400 ±500 Hz
Operating Temperature
-30 to +70 °C

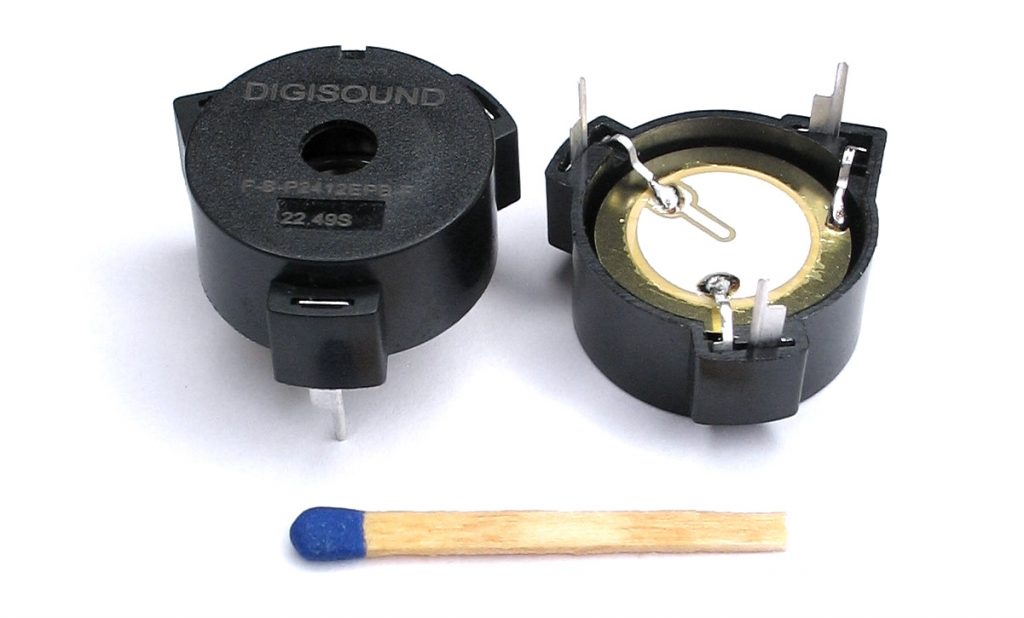

F-B-P2412EPB-F

Dimension
Ø28.4 x 11 mm
Rated Voltage
12 VDC
Sound Pressure Level
≥90 dB(A) at 30 cm
Resonance Frequency (F0)
3800 ±500 Hz
Operating Temperature
-40 to +85 °C

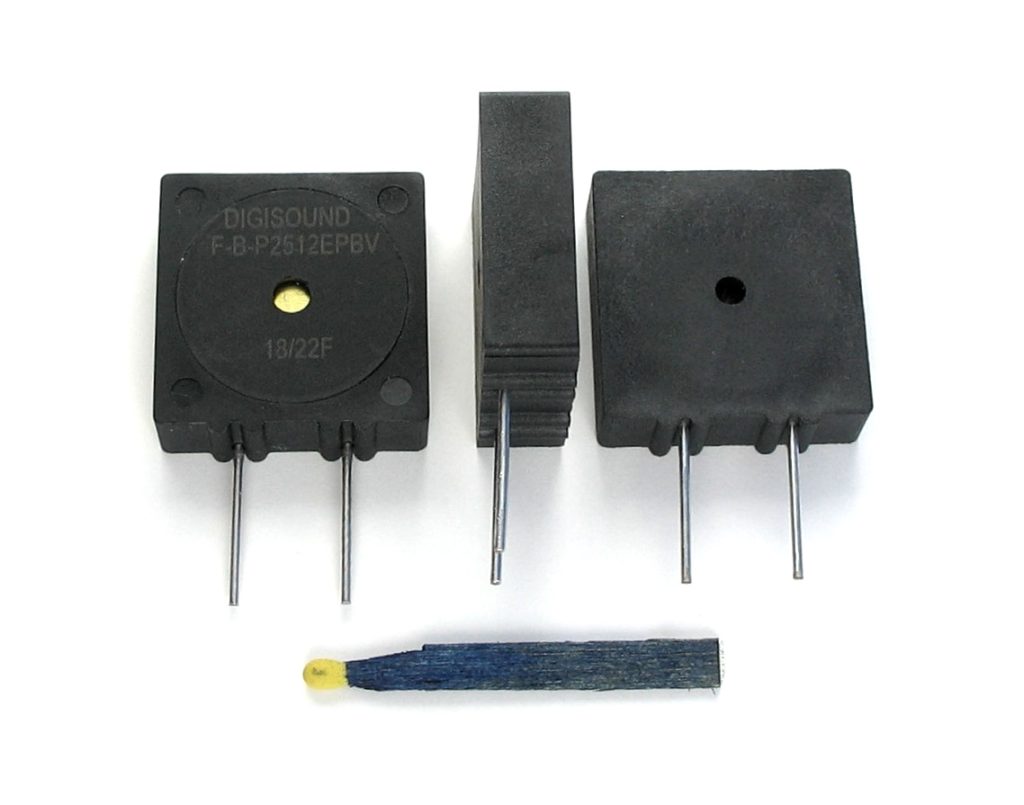

F-B-P2512EPBV

Dimension
25 x 25 x 8 mm
Rated Voltage
12 Vpp
Sound Pressure Level
≥79 dB(A) at 10 cm
Resonance Frequency (F0)
400 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
25 Vpp

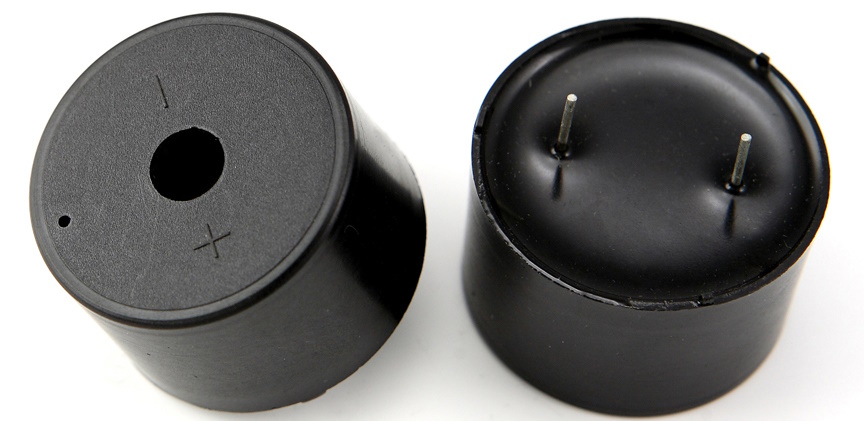

F-B-P3012IPB

Dimension
Ø30.2 x 20.2 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥95 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-20 to +70 °C

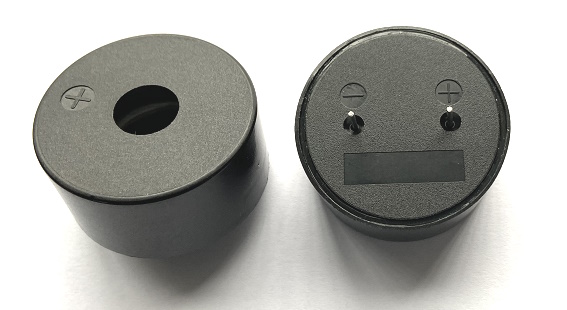

F-B-P4009IPB

Dimension
Ø40 x 20 mm
Rated Voltage
9 VDC
Operating Voltage
4.5 - 20 VDC
Sound Pressure Level
≥100 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
2800 ±500 Hz
Operating Temperature
-40 to +85 °C

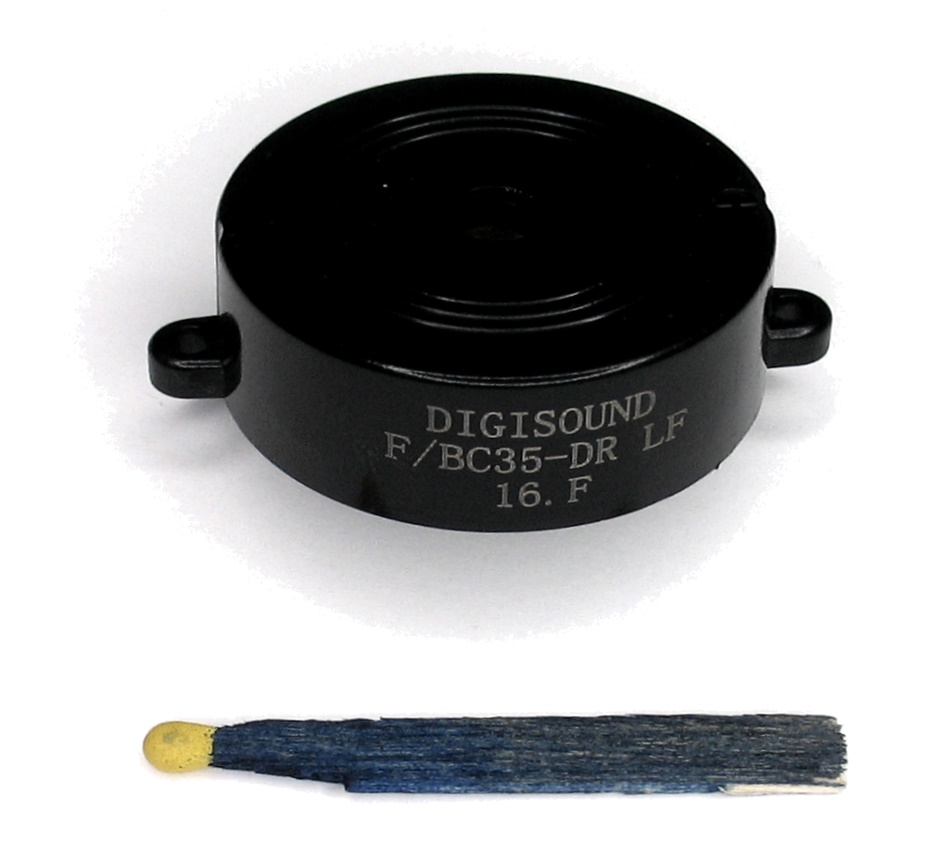

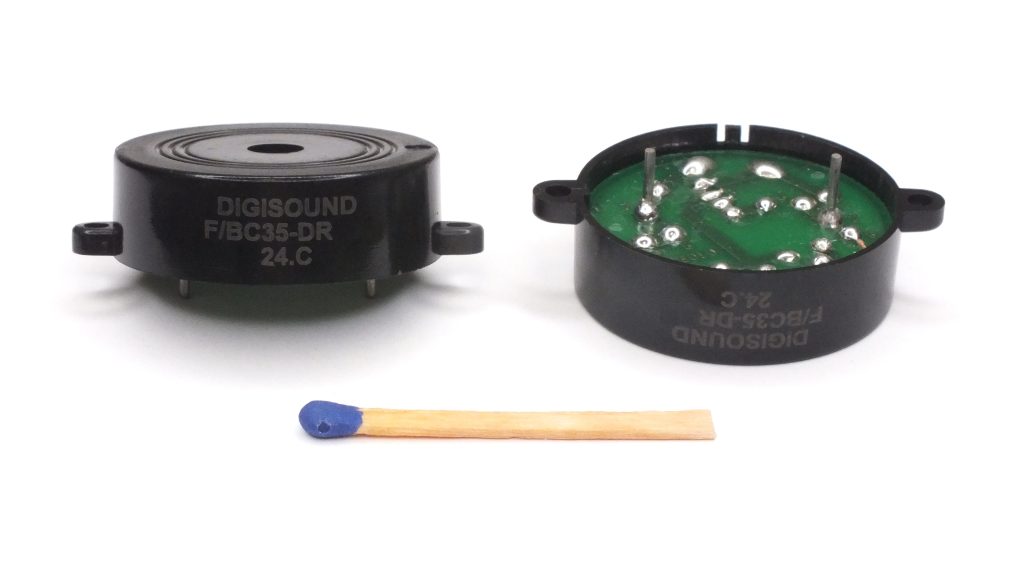

F/BC 35-DR

Dimension
Ø31.5 x 10 mm
Rated Voltage
24 VDC
Operating Voltage
2.4 - 33 VDC
Sound Pressure Level
≥89 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-20 to +60 °C

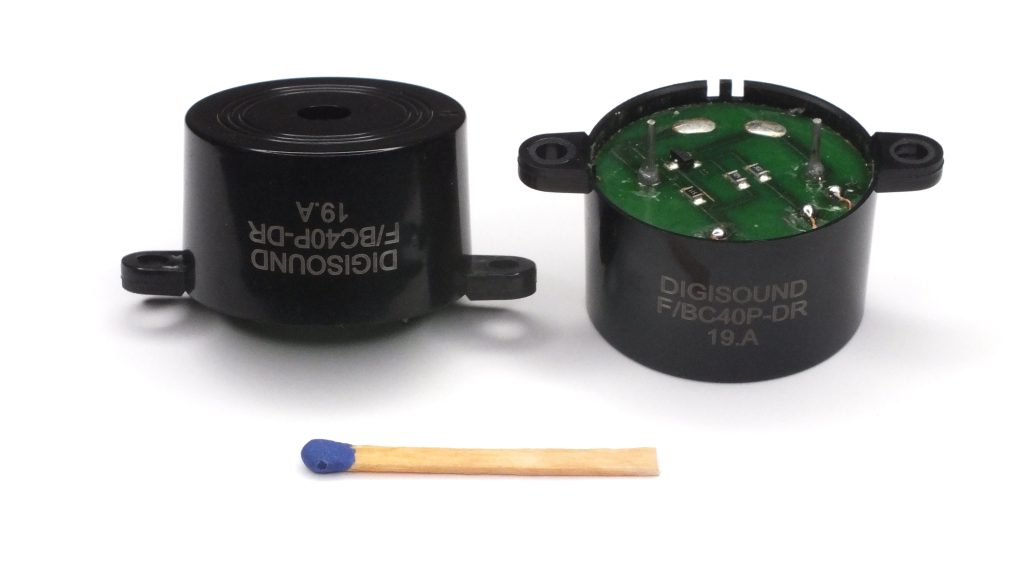

F/BC 40P-DR

Dimension
Ø31.5 x 45 x 19.5 mm
Rated Voltage
9 VDC
Operating Voltage
2.4 - 32 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-20 to +60 °C

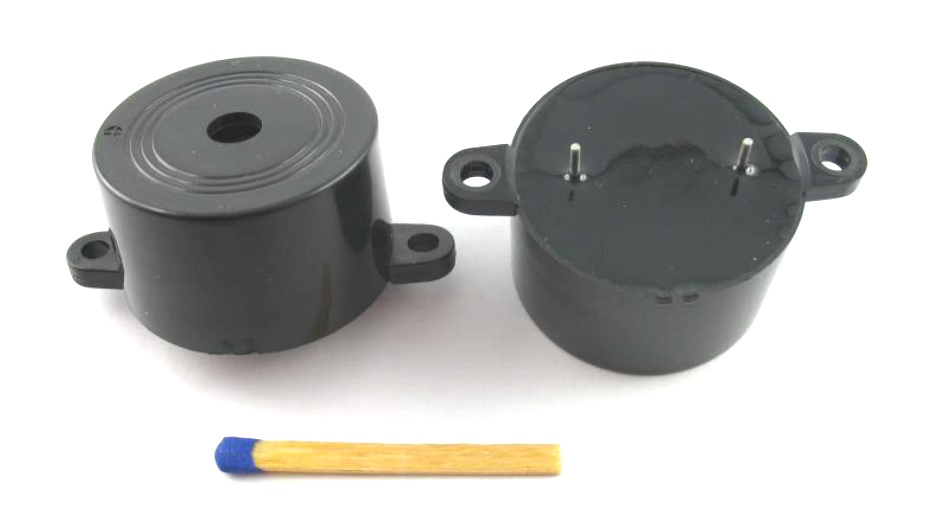

F/BC 40P-WE

Dimension
Ø31.5 x 45 x 19.5 mm
Rated Voltage
9 VDC
Operating Voltage
2.4 - 32 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-30 to +70 °C

F/BC 40W-DR

Dimension
Ø31.5 x 45 x 19.5 mm
Rated Voltage
9 VDC
Operating Voltage
2.4 - 32 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3100 ±500 Hz
Operating Temperature
-20 to +60 °C

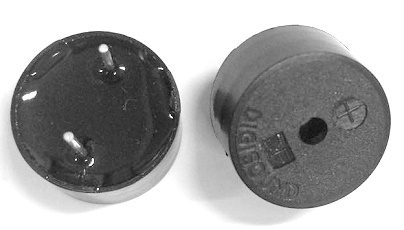

F/CM 12P

Dimension
Ø13.8 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 16 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
4000 ±500 Hz
Operating Temperature
-40 to +85 °C

F/CM04P-02

Dimension
Ø23 x 9.8 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-30 to +70 °C

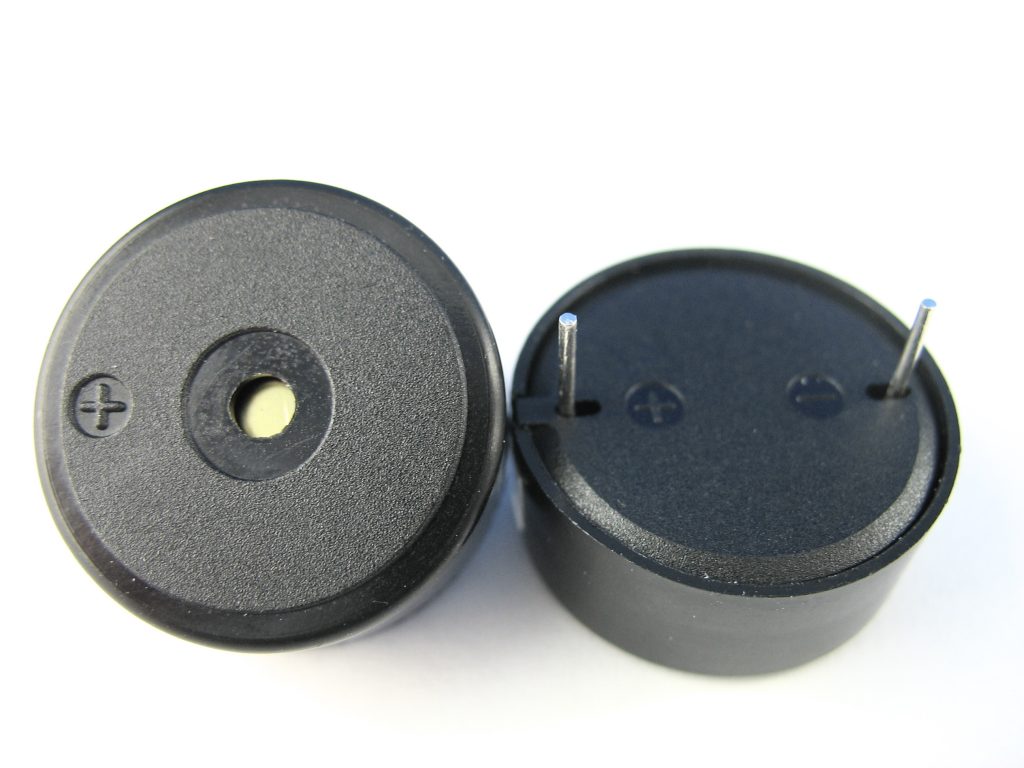

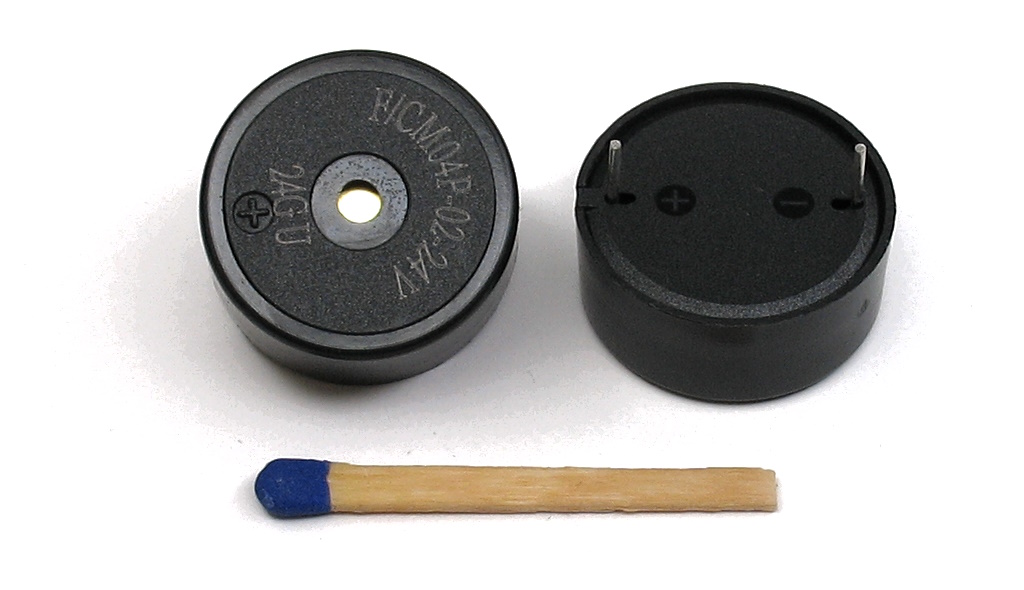

F/CM04P-02-24V

Dimension
Ø23 x 9.8 mm
Rated Voltage
24 VDC
Operating Voltage
3 - 30 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-30 to +70 °C

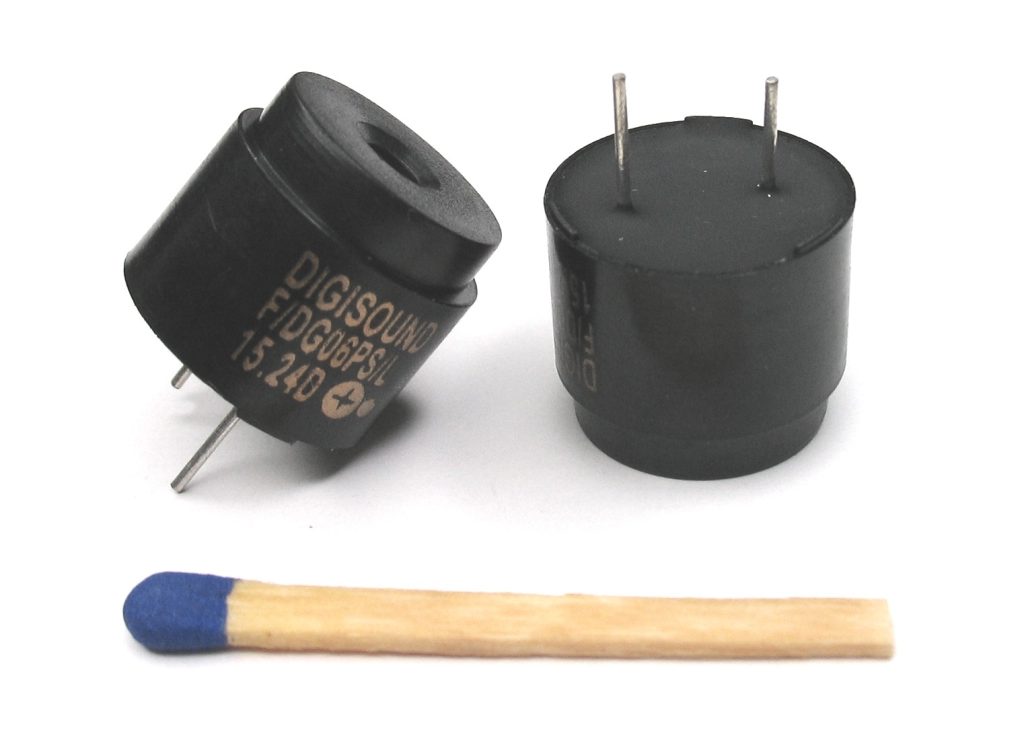

F/DG 06 P S/L

Dimension
Ø16 x 14 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±6 Ω

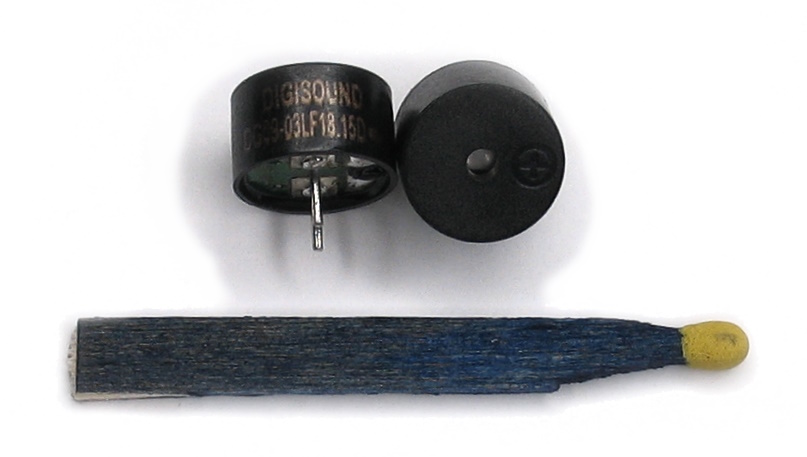

F/DG 09-03-2.7

Dimension
Ø9.2 x 5.5 mm
Rated Voltage
3 Vo-p
Operating Voltage
2 - 5 Vo-p
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
2700 Hz
Operating Temperature
-40 to +85 °C
Resistance
25 ±4 Ω

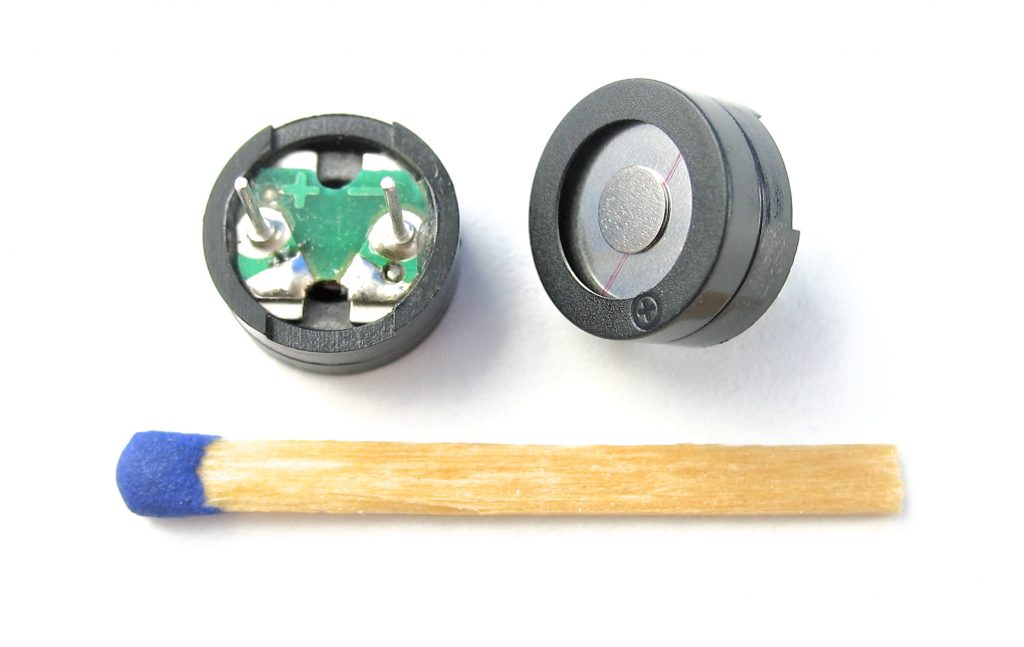

F/DG 105P

Dimension
Ø12 x 5.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
50 ±7.5 Ω

F/DG 105P-01

Dimension
Ø12 x 5.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥70 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
50 ±7.5 Ω

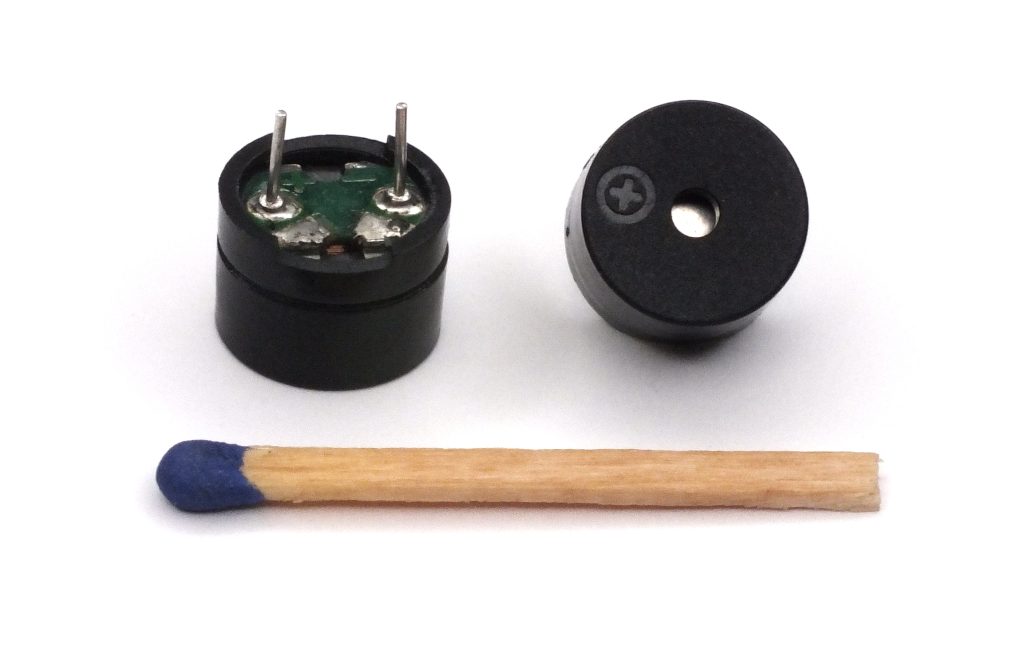

F/DG 111 GP

Dimension
Ø12 x 8.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥88 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to 70 °C
Resistance
16 ±3 Ω

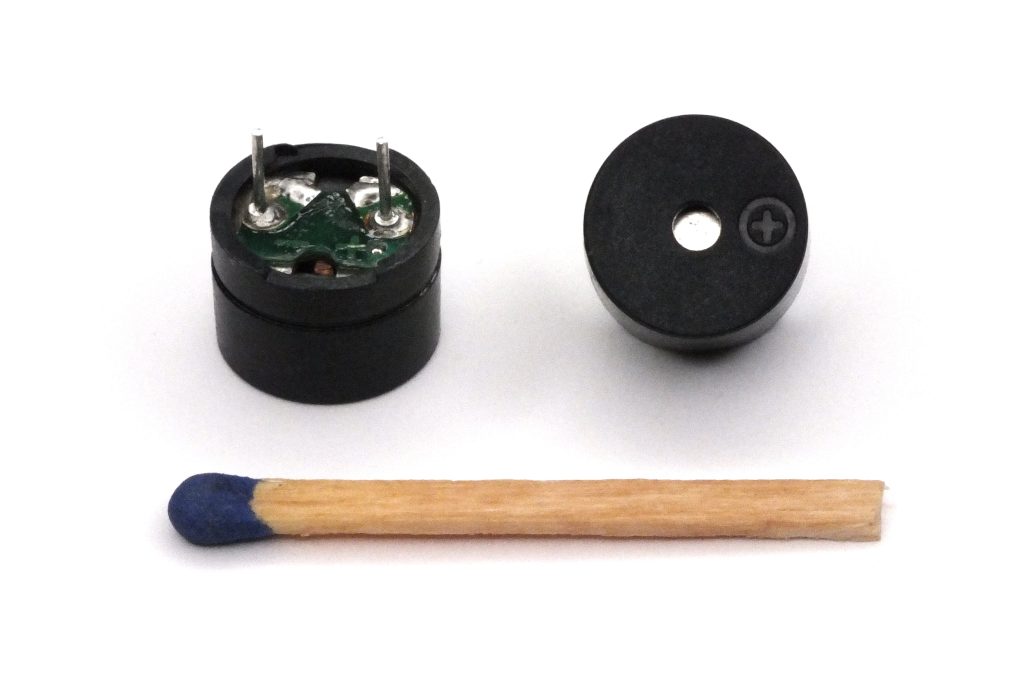

F/DG 111 P

Dimension
Ø12 x 8.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to 70 °C
Resistance
42 ±6 Ω

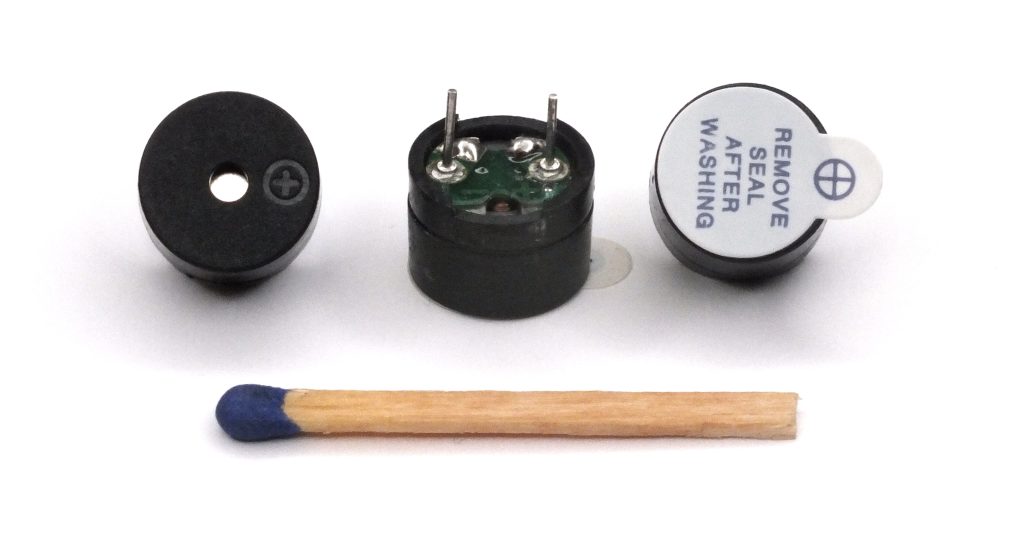

F/DG 111 P-01

Dimension
Ø12 x 8.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to 70 °C
Resistance
42 ±6 Ω

F/DG 111PC5V

Dimension
Ø12 x 8.5 mm
Rated Voltage
5 Vo-p
Operating Voltage
3 - 8 Vo-p
Sound Pressure Level
≥88 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to 70 °C
Resistance
50 ±6 Ω

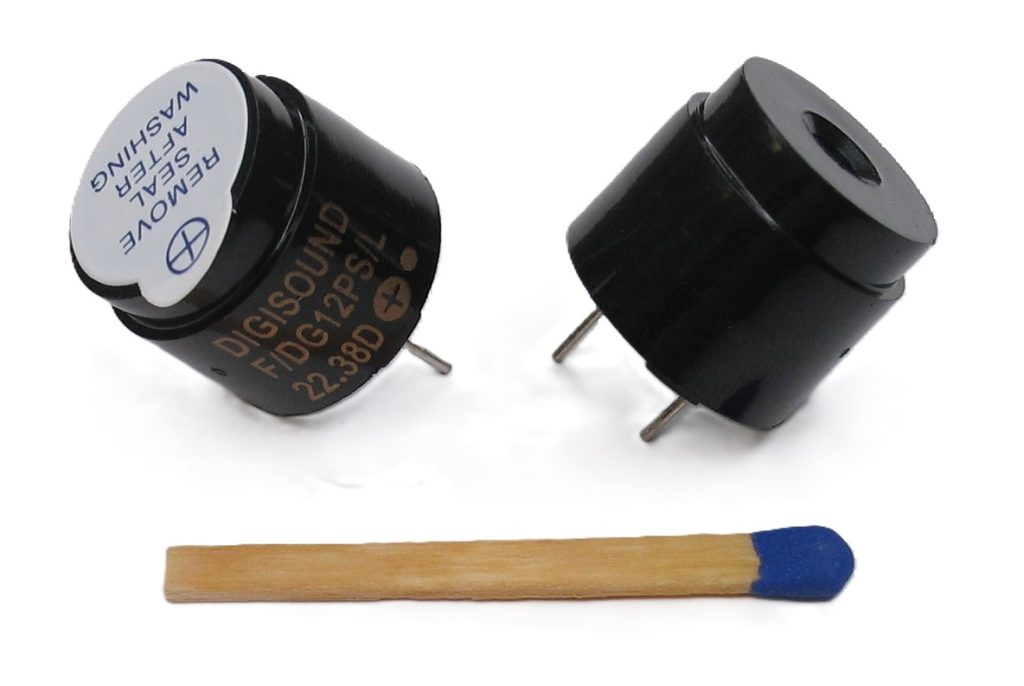

F/DG 12 P S/L

Dimension
Ø16 x 14 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 15 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
115 ±16 Ω

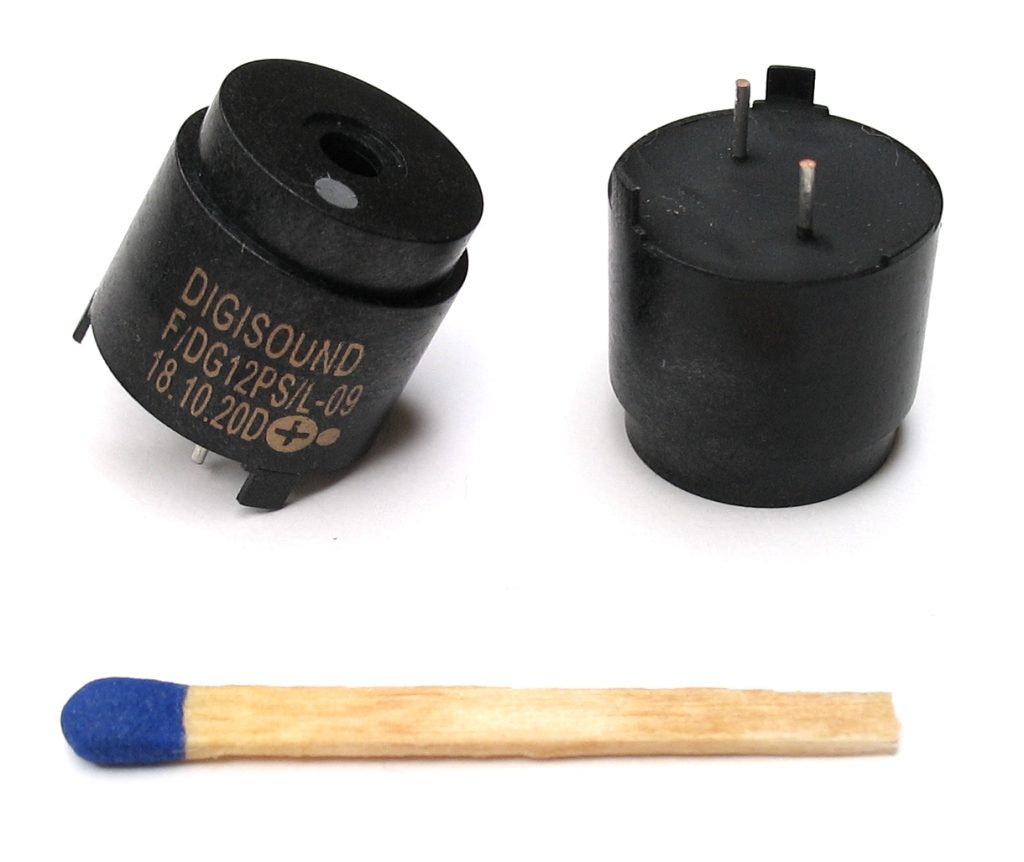

F/DG 12P S/L-09

Dimension
Ø16 x 14.5 mm
Rated Voltage
12 Vo-p
Operating Voltage
6 - 18 Vo-p
Sound Pressure Level
98 ±3 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-40 to +100 °C
Resistance
115 ±15 Ω

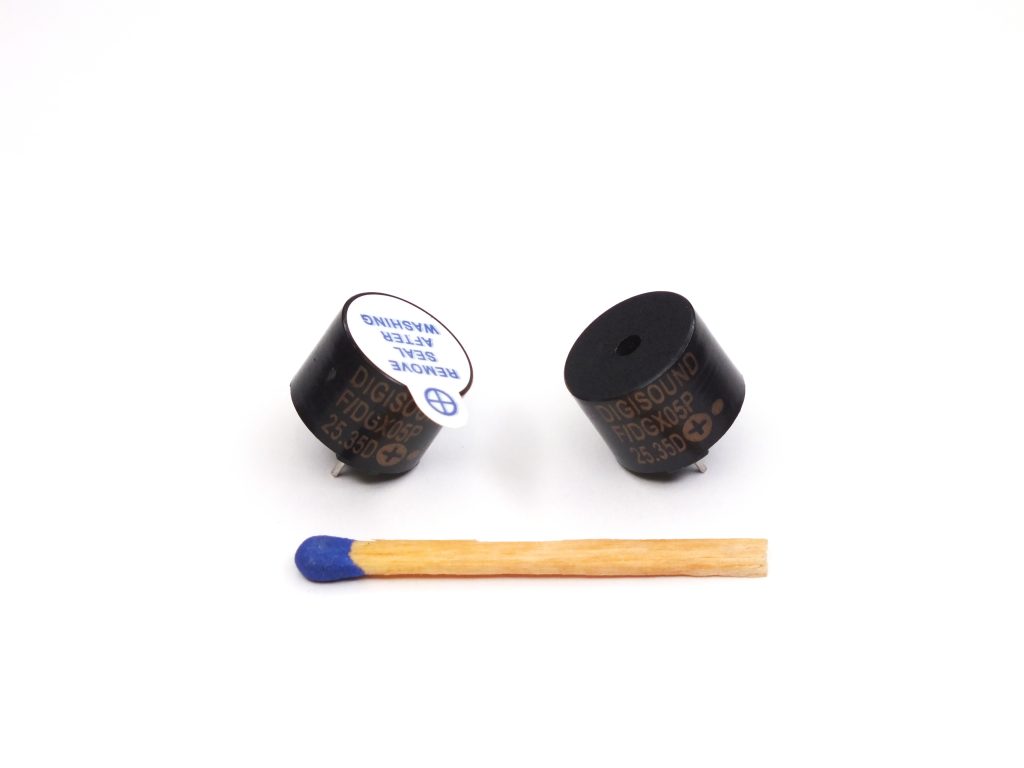

F/DGX 05P with label

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
4 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±5 Ω

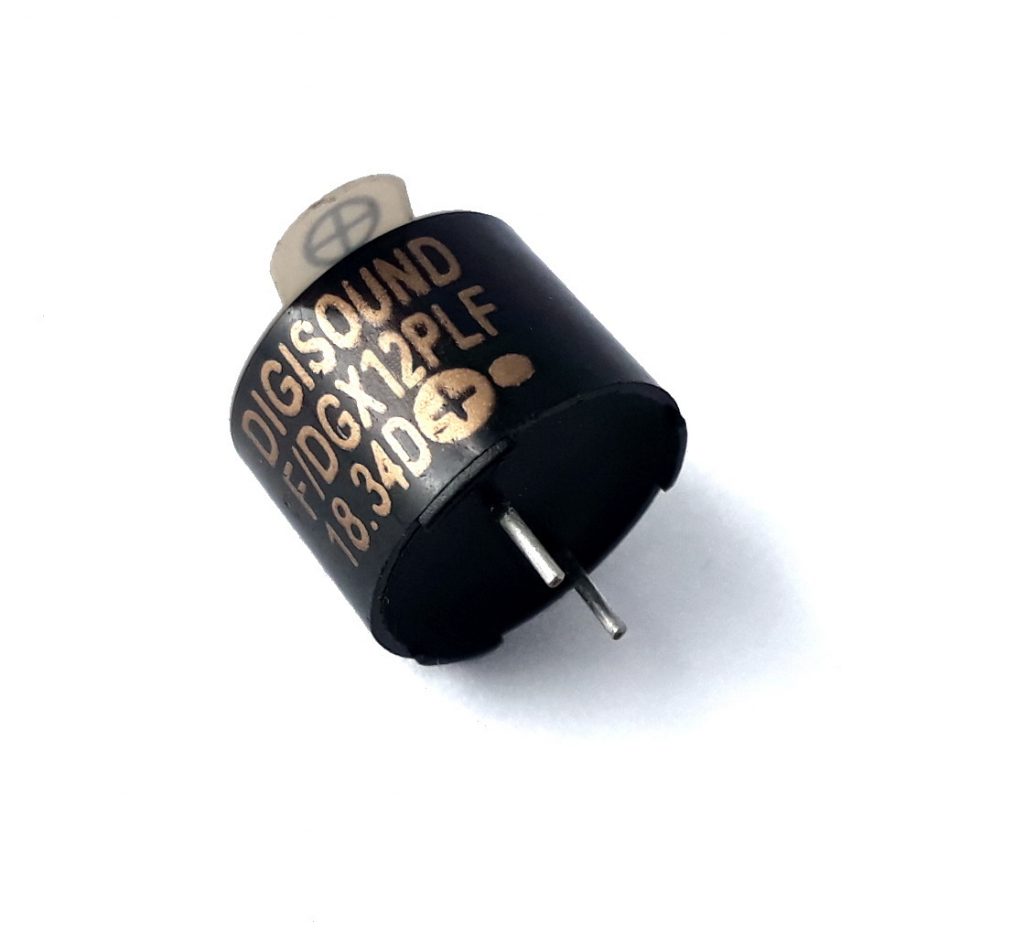

F/DGX 12P WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 16 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-20 to +70 °C
Resistance
140 ±12 Ω

F/DGX05PA WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
6 Vo-p
Operating Voltage
4 - 7 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Resonance Frequency (F0)
2400 Hz
Operating Temperature
-40 to +85 °C
Resistance
45 ±5 Ω

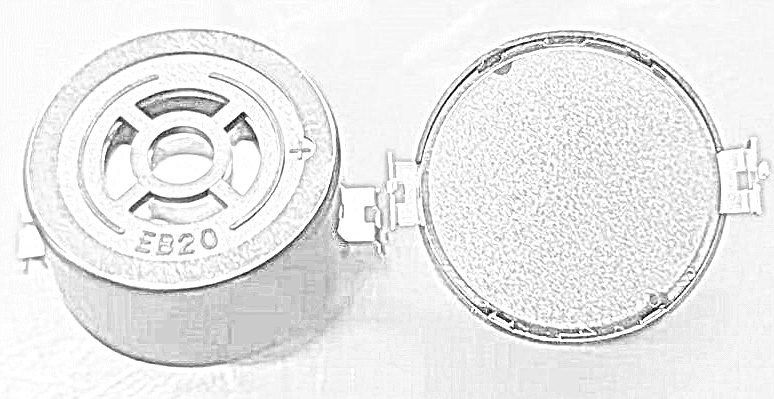

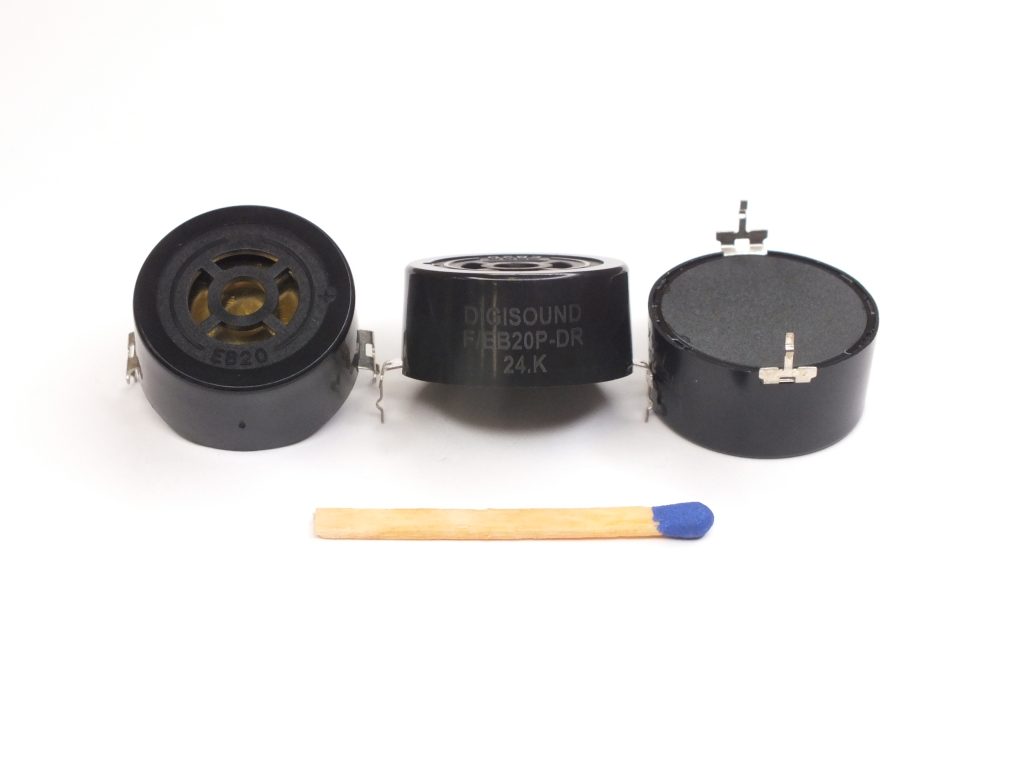

F/EB20P-DR

Dimension
Ø23 x 12 mm
Rated Voltage
12 VDC
Operating Voltage
2.4 - 20 VDC
Sound Pressure Level
≥80 dB(A) at 10 cm
Oscillator Frequency
3.5 ±0.5 kHz
Operating Temperature
-10 to +60 °C

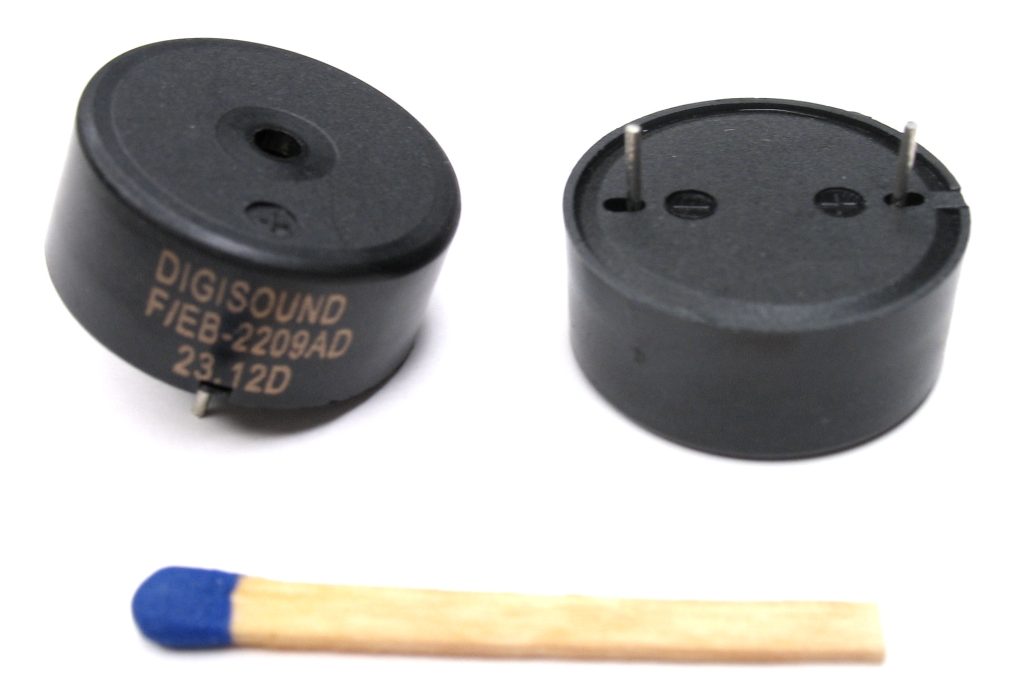

F/EB2209AD

Dimension
Ø22.8 x 9.8 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 24 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Resonance Frequency (F0)
3500 ±500 Hz
Tone
Continuous
Operating Temperature
-40 to +85 °C

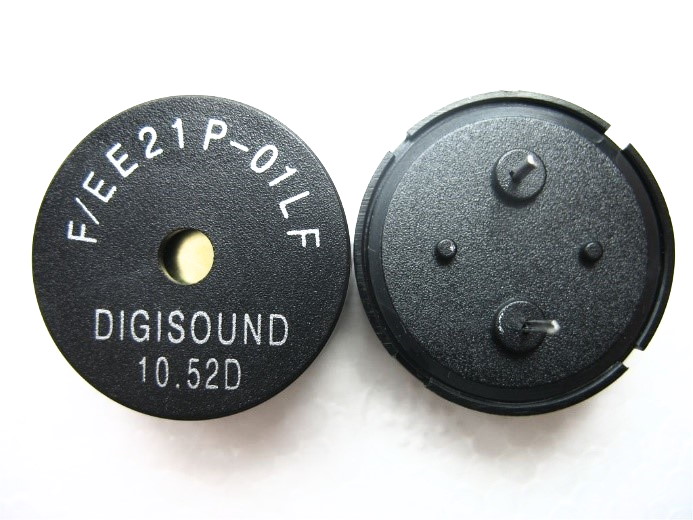

F/EE-21P-01

Dimension
Ø22.1 x 7.2 mm
Rated Voltage
3 Vpp
Sound Pressure Level
≥80 dB(A) at 10 cm
Resonance Frequency (F0)
4000 Hz
Operating Temperature
-40 to +85 °C
Max. Input Voltage
30 Vpp

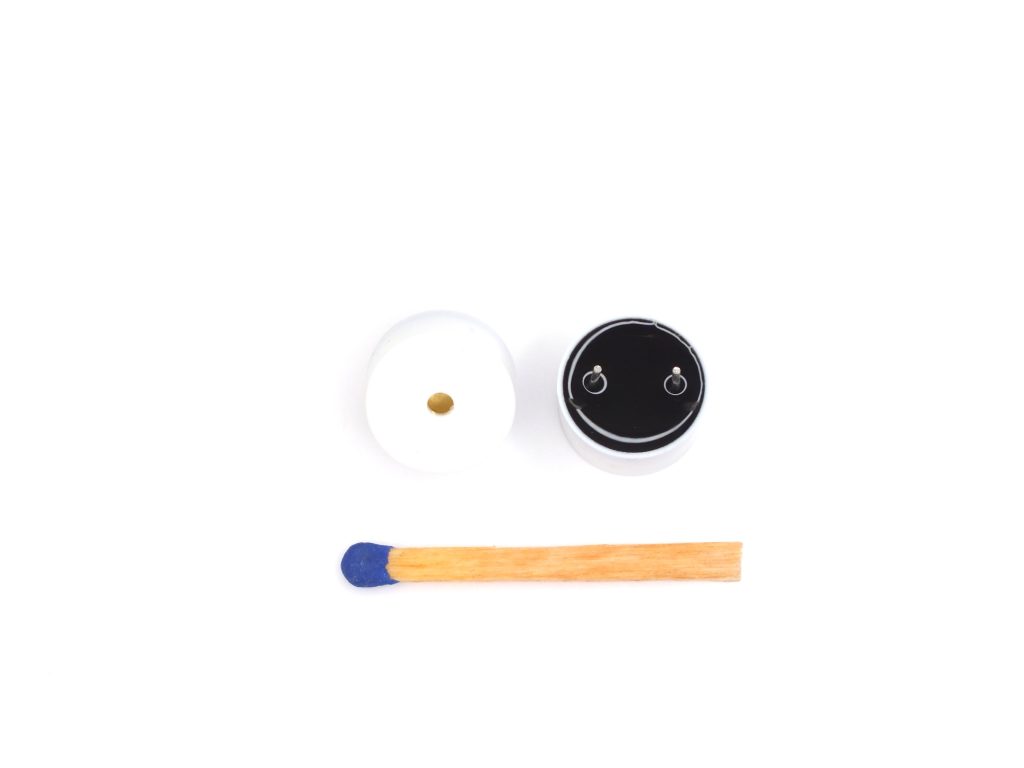

F/EM12P

Dimension
Ø13.8 x 6.8 mm
Rated Voltage
5 Vpp
Sound Pressure Level
≥85 dB(A) at 10 cm
Resonance Frequency (F0)
4096 ±500 Hz
Operating Temperature
-20 to +70 °C
Max. Input Voltage
25 Vpp

F/HCW 06 WITH LABEL

Dimension
Ø16 x 14 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2200 ±300 Hz
Operating Temperature
-40 to +85 °C

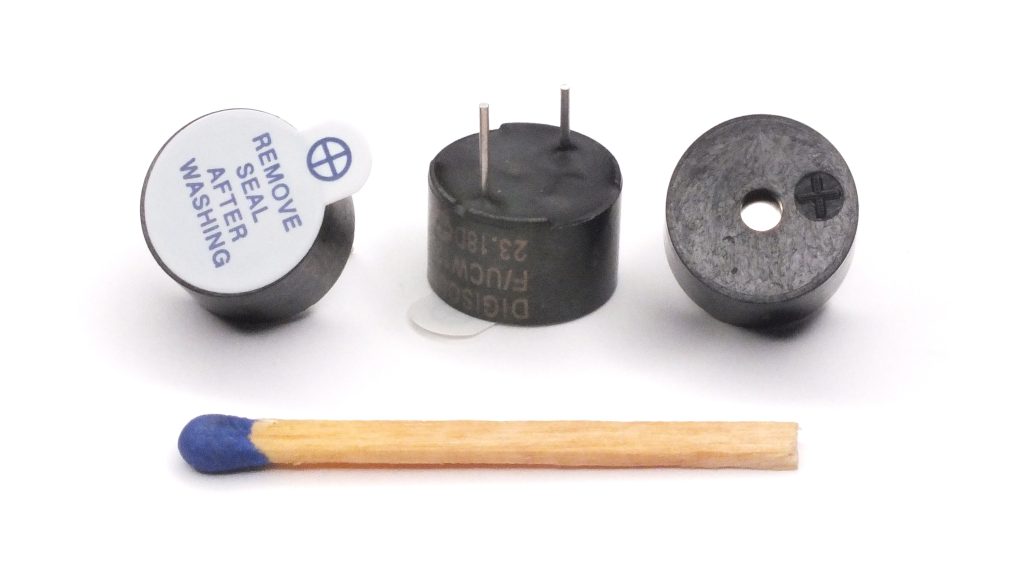

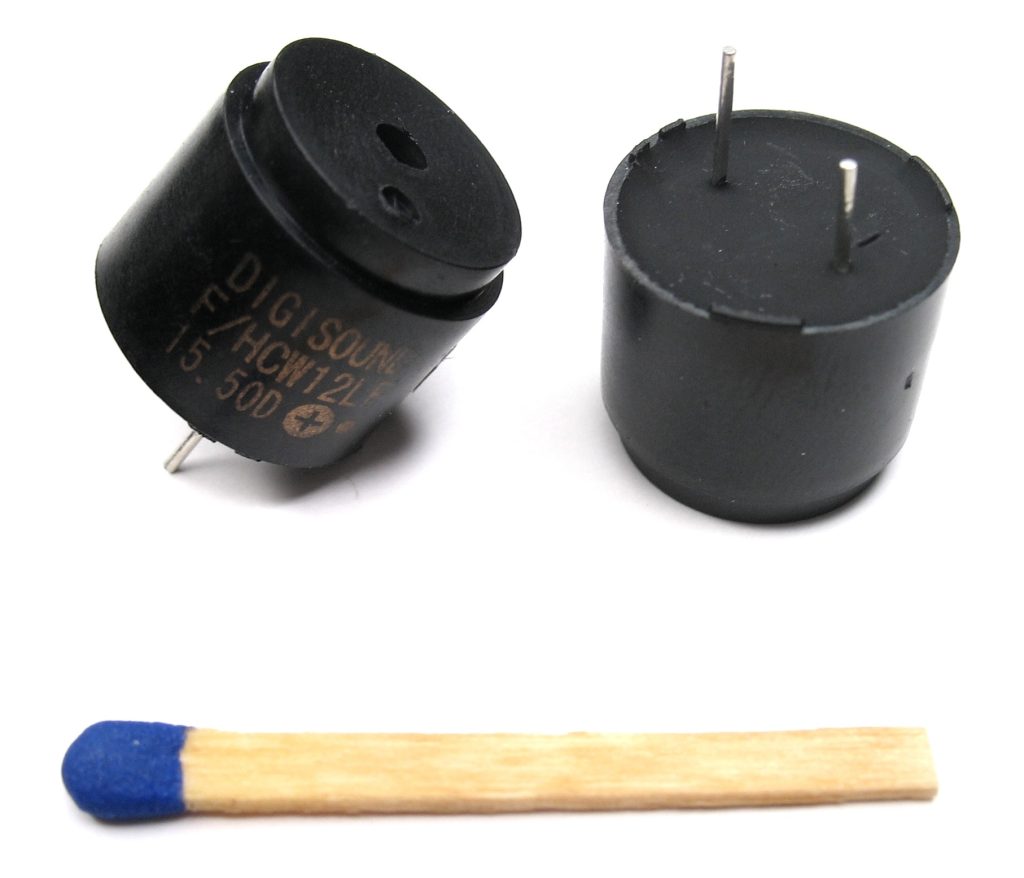

F/HCW 12 WITH LABEL

Dimension
Ø16 x 14 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 15 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Oscillator Frequency
2200 ±300 Hz
Operating Temperature
-40 to +85 °C

F/NCMB 06 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

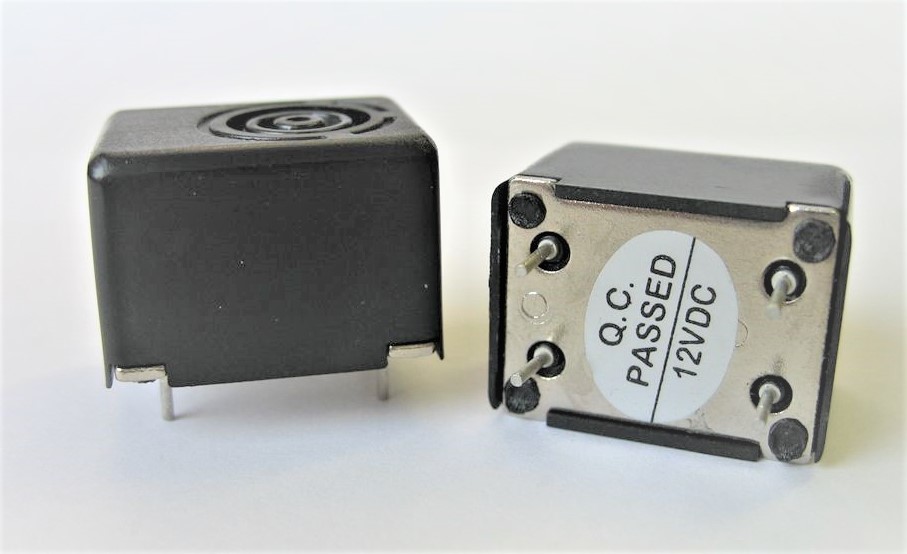

F/NCMB 12 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
12 VDC
Operating Voltage
9 - 15 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

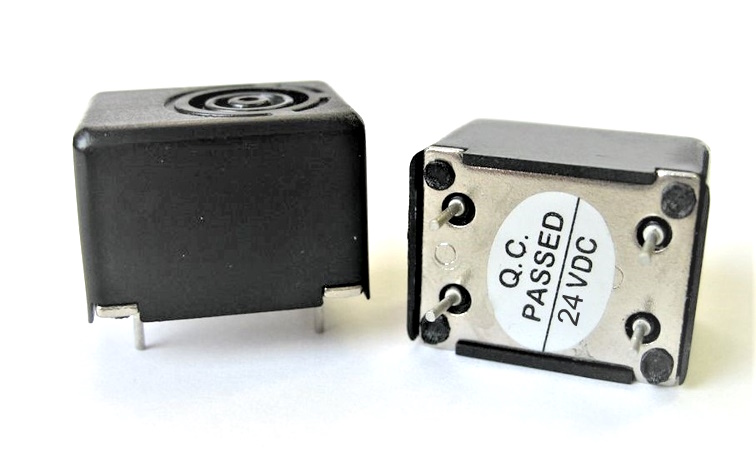

F/NCMB 24 BLACK

Dimension
22.5 x 16 x 14.5 mm
Rated Voltage
24 VDC
Operating Voltage
15 - 27 VDC
Sound Pressure Level
≥75 dB(A) at 20 cm
Tone
Continuous Tone
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 to +70 °C

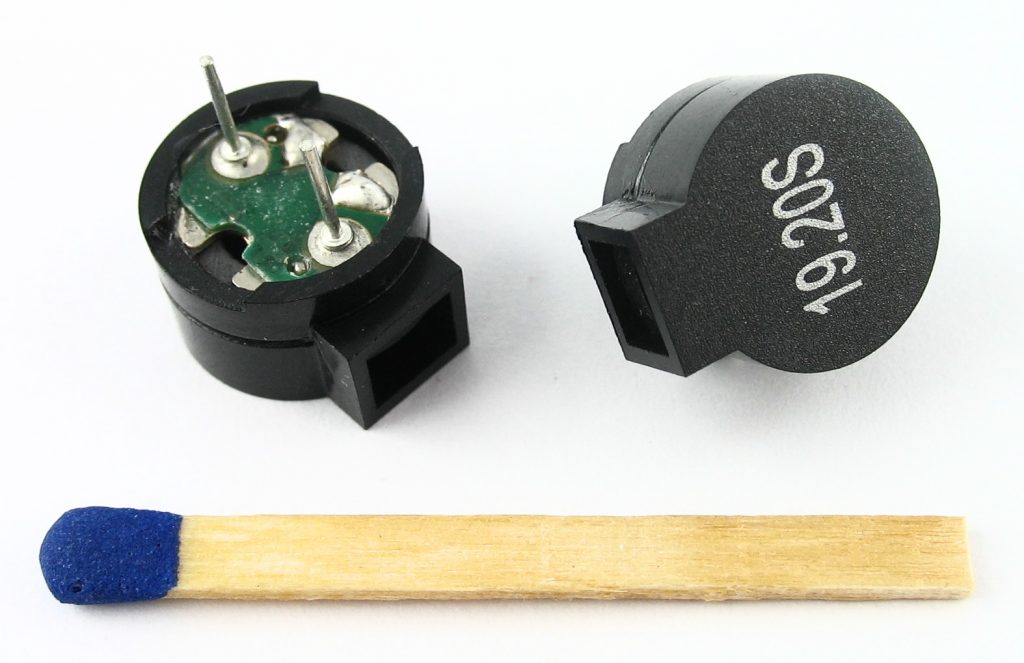

F/PCW-04A

Dimension
Ø12 x 13.5 x 7.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥83 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +60 °C
Resistance
6.5 ±1.5 Ω

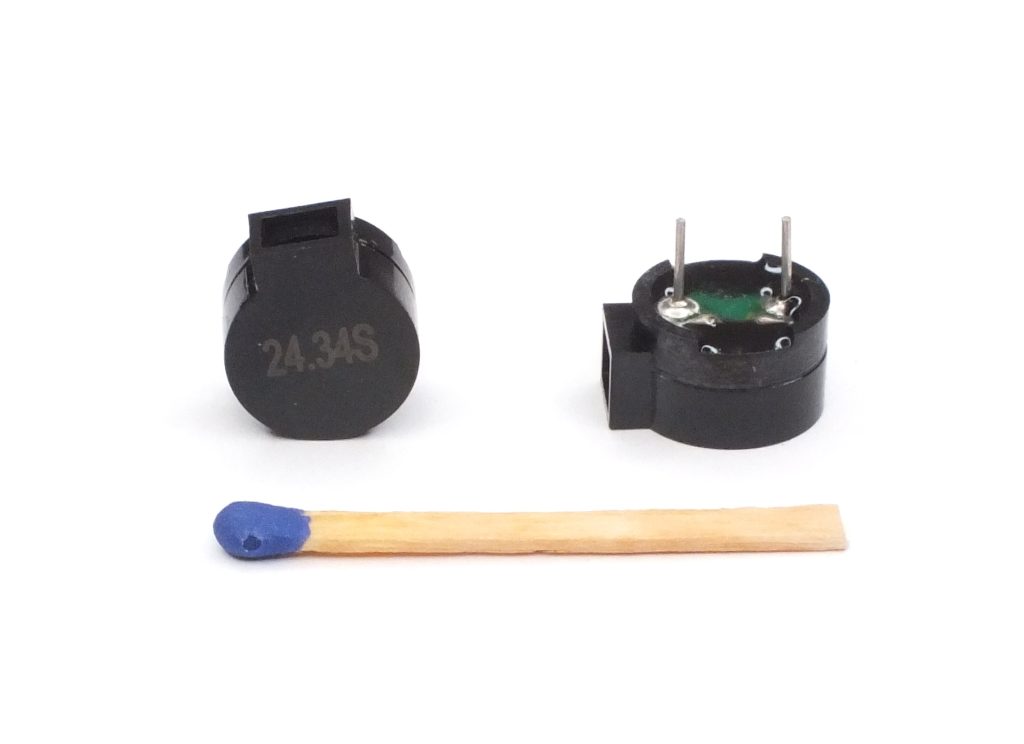

F/PCW-04B

Dimension
Ø12 x 13.5 x 7.5 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 2 Vo-p
Sound Pressure Level
≥92 dB(A) at 10 cm
Resonance Frequency (F0)
2731 Hz
Operating Temperature
-20 to +60 °C
Resistance
6.5 ±1 Ohm

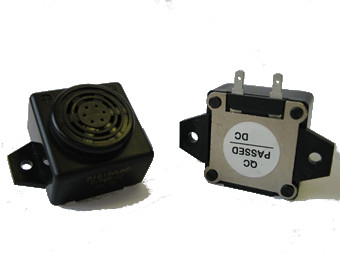

F/PWB 06 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
6 VDC
Operating Voltage
4 - 8 VDC
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

F/PWB 12 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
12 VDC
Operating Voltage
8 - 16 V
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

F/PWB 24 BLACK

Dimension
40 x 26 x 19.5 mm
Rated Voltage
24 VDC
Operating Voltage
20 - 28 VDC
Sound Pressure Level
≥92 dB(A) at 10 cm
Tone
Continuous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-40 to +70 °C

F/SKI 105 N

Dimension
Ø12 x 5.6 mm
Rated Voltage
1.5 Vo-p
Operating Voltage
1 - 5 Vo-p
Sound Pressure Level
≥75 dB(A) at 10 cm
Resonance Frequency (F0)
2048 Hz
Operating Temperature
-20 to +70 °C
Resistance
15 ±3 Ohm

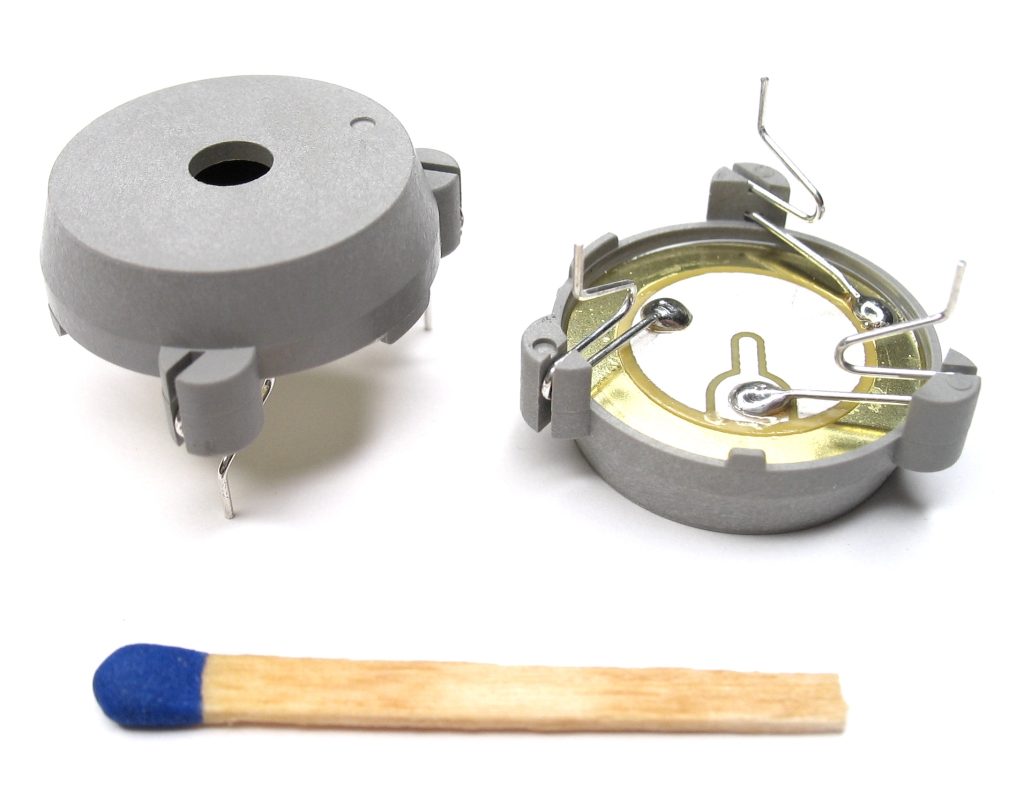

F/SU 21-02

Dimension
Ø25 x 16 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥85 dB(A) at 30 cm
Oscillator Frequency
3600 ±500 Hz
Operating Temperature
-20 to +60 °C

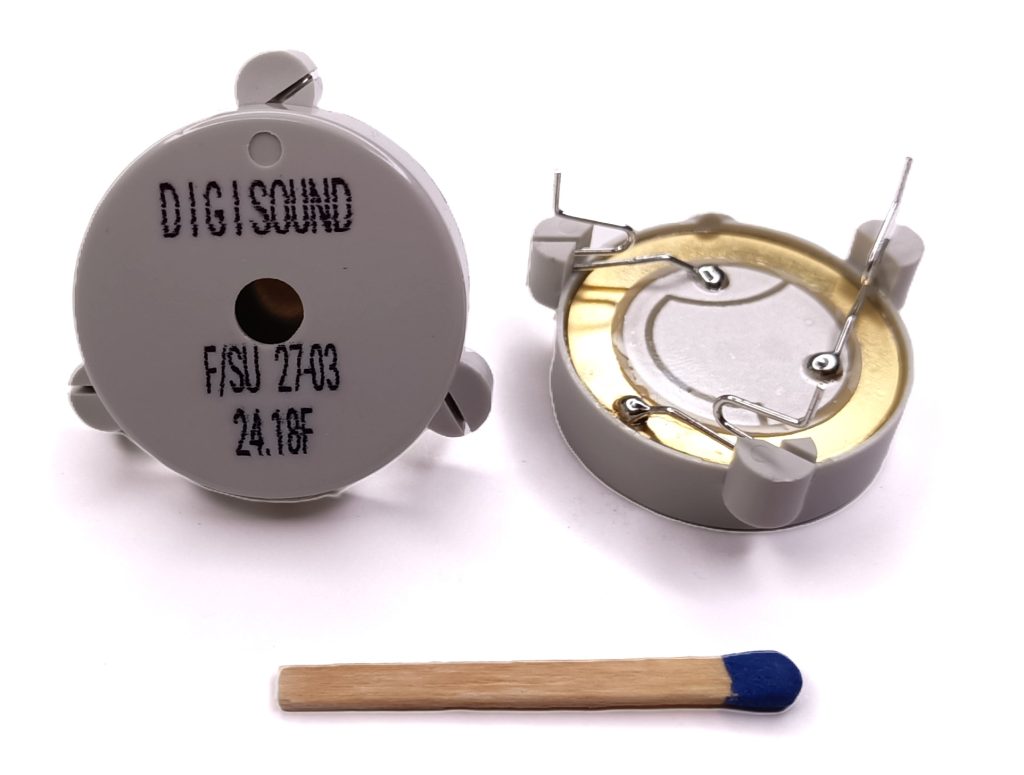

F/SU 27-03

Dimension
Ø28.2 x 13.5 mm
Rated Voltage
12 Vpp
Operating Voltage
3 - 24 Vpp
Sound Pressure Level
≥95 dB(A) at 10 cm
Resonance Frequency (F0)
3000 ±500 Hz
Operating Temperature
-20 to +80 °C

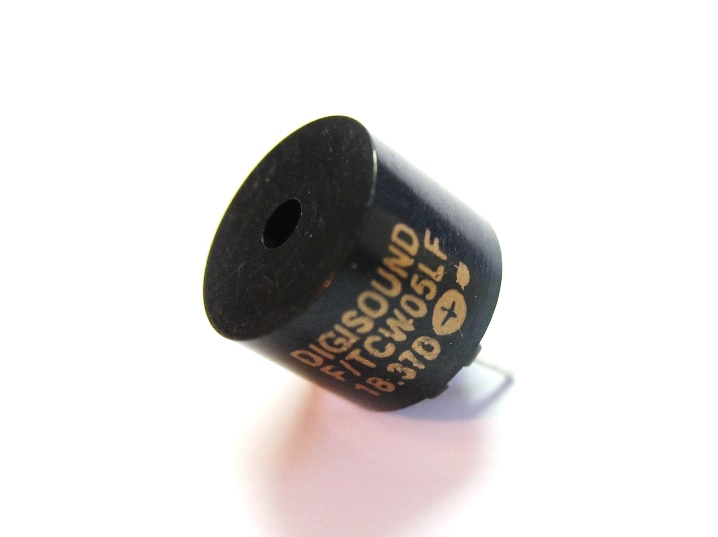

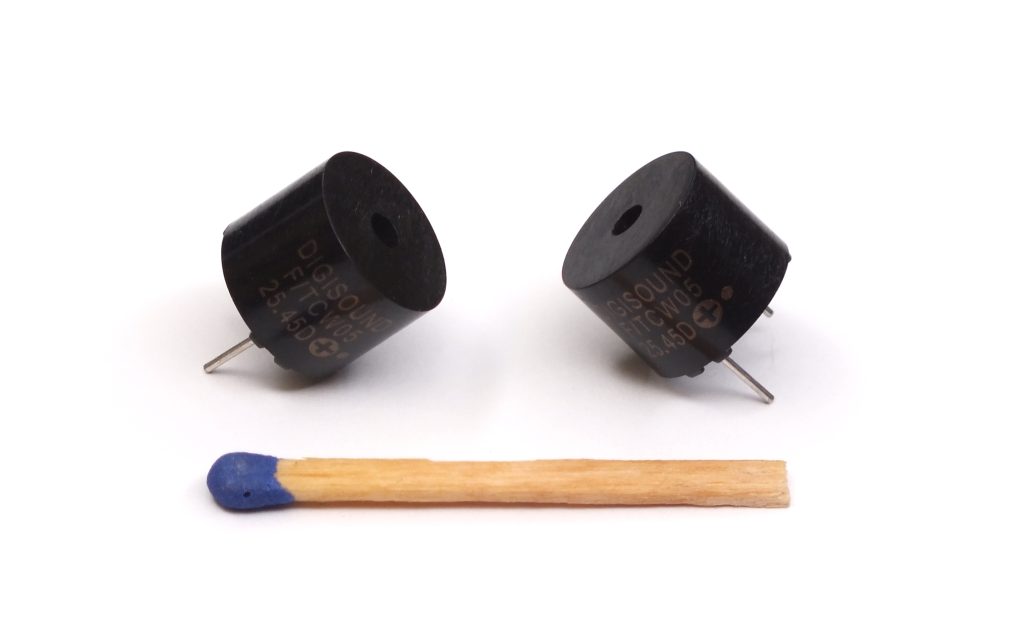

F/TCW 05 w/o LABEL

Dimension
Ø11.8 x 9.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 7 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

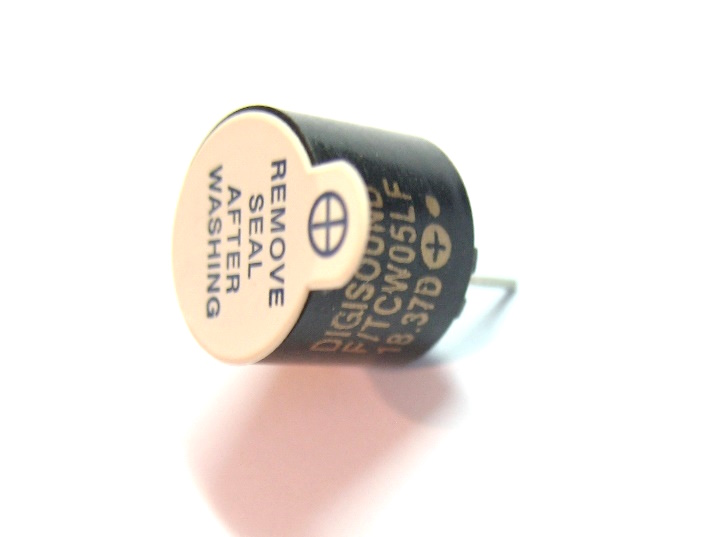

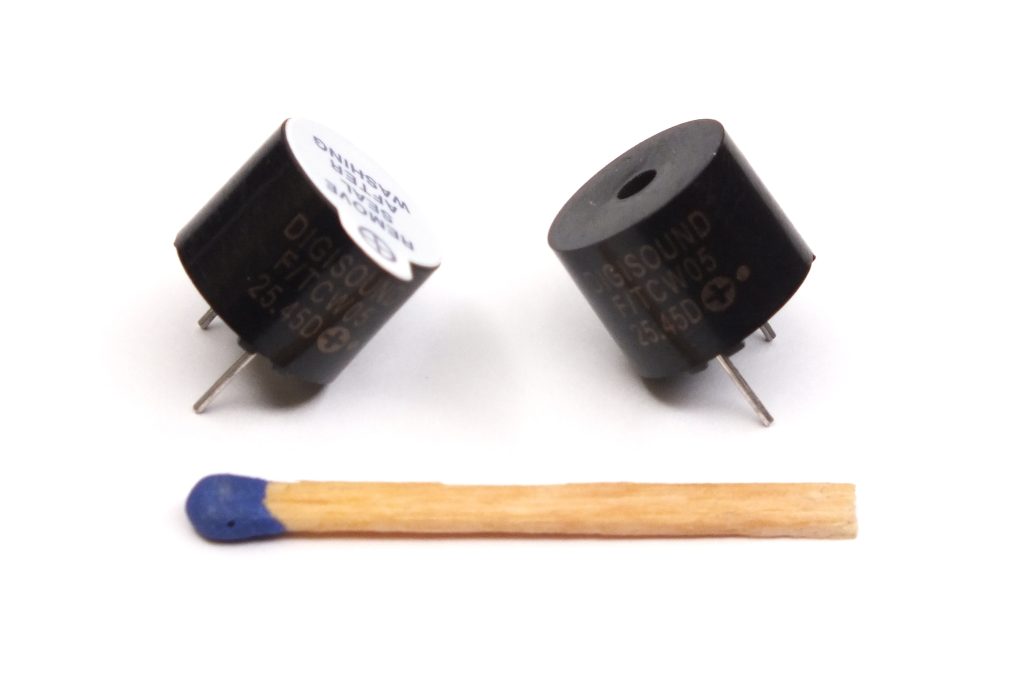

F/TCW 05 WITH LABEL

Dimension
Ø11.8 x 9.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 7 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

F/TCW 12 WITH LABEL

Dimension
Ø12 x 9.5 mm
Rated Voltage
12 VDC
Operating Voltage
7 - 15 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

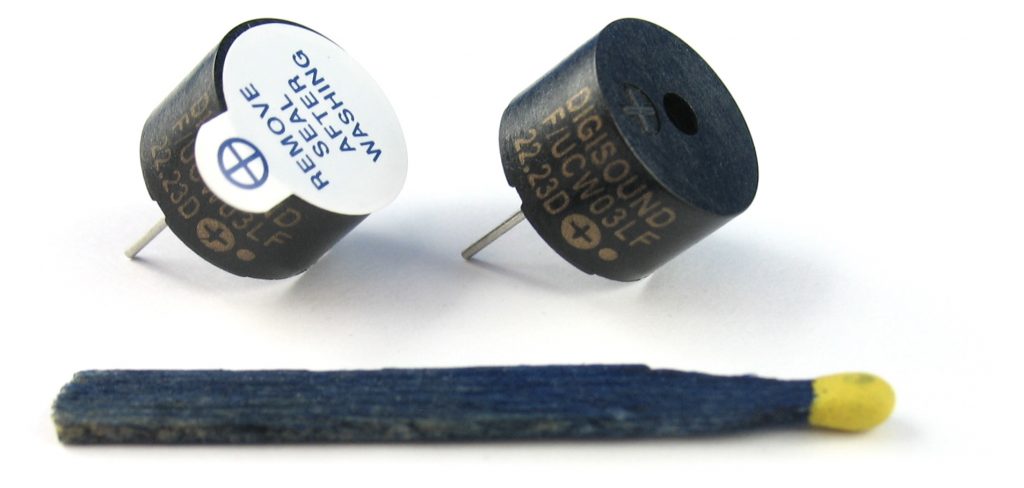

F/UCW 03 WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
3 VDC
Operating Voltage
2 - 5 VDC
Sound Pressure Level
≥83 dB(A) at 10 cm
Oscillator Frequency
2400 ±300 Hz
Operating Temperature
-40 to +85 °C

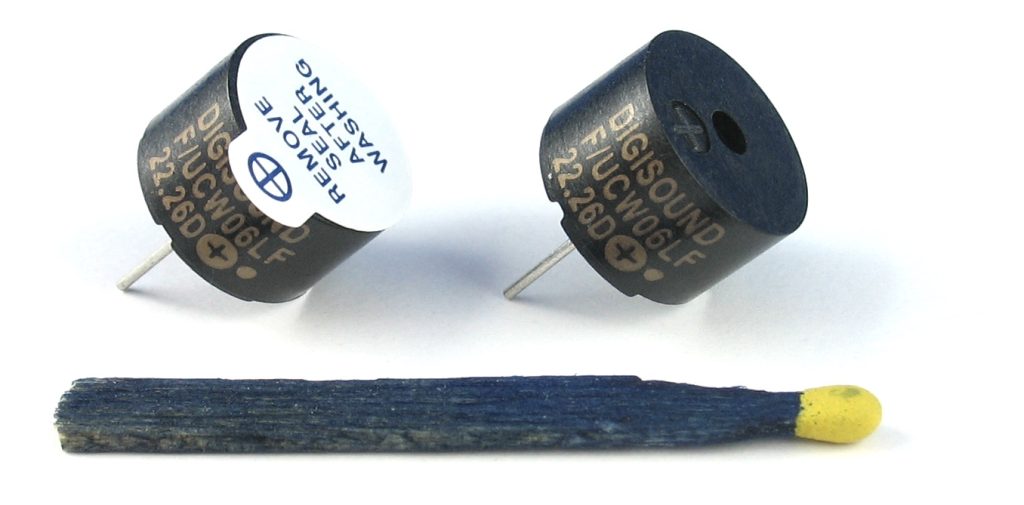

F/UCW 06 WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

F/UCW 12 WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
9 - 15 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

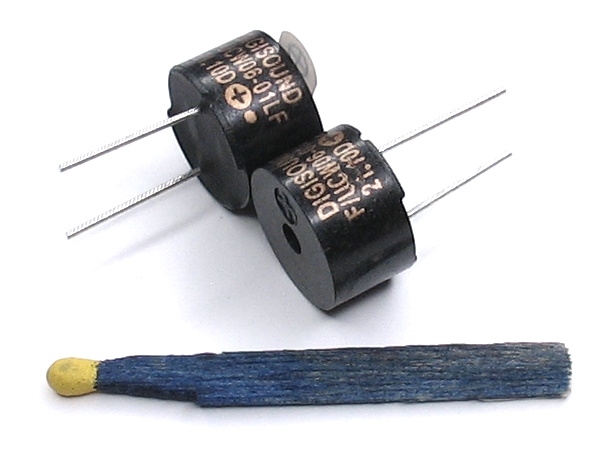

F/UCW06-01

Dimension
Ø12 x 7.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

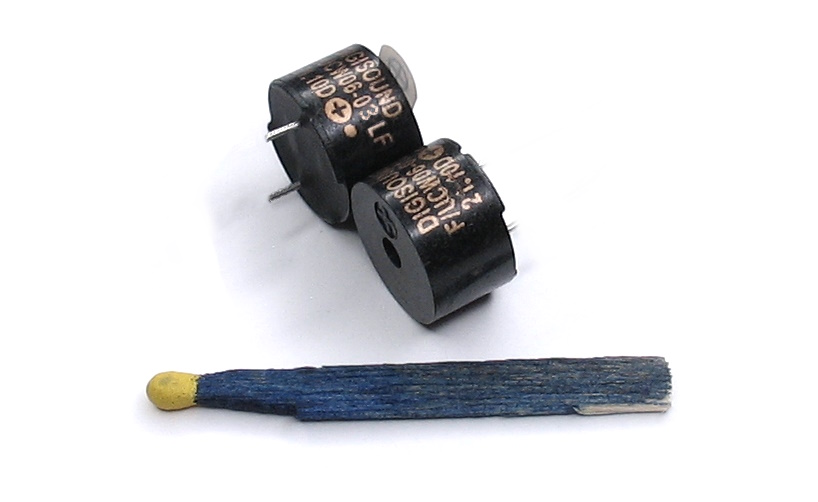

F/UCW06-03WITH LABEL

Dimension
Ø12 x 7.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 6.5 VDC
Sound Pressure Level
≥85 dB(A) at 10 cm
Oscillator Frequency
2300 ±300 Hz
Operating Temperature
-40 to +85 °C

F/WE 24P

Dimension
Ø24 x 16 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 20 VDC
Sound Pressure Level
≥100 dB(A) at 10 cm
Tone
Continuous Tone
Oscillator Frequency
3500 ±500 Hz
Operating Temperature
-40 to +85 °C

F/YWB 24 BLACK

Dimension
26 x 26 x 19.7 mm
Rated Voltage
24 VDC
Operating Voltage
20 - 28 VDC
Sound Pressure Level
≥ 95 dB at 0.1 m
Tone
Continous
Oscillator Frequency
400 ±100 Hz
Operating Temperature
-30 - +70 °C

Web content in constant progress. For further products please contact us.

...

Information and specifications are subject to change. Site updates may be carried out with delay.

© 2025 DIGISOUND-Electronic GmbH

Externe Weiterleitung

Sie werden zu der folgenden externen Website weitergeleitet: https://www.linkedin.com/company/digisound-electronic-gmbh

WordPress Cookie Plugin von Real Cookie Banner
