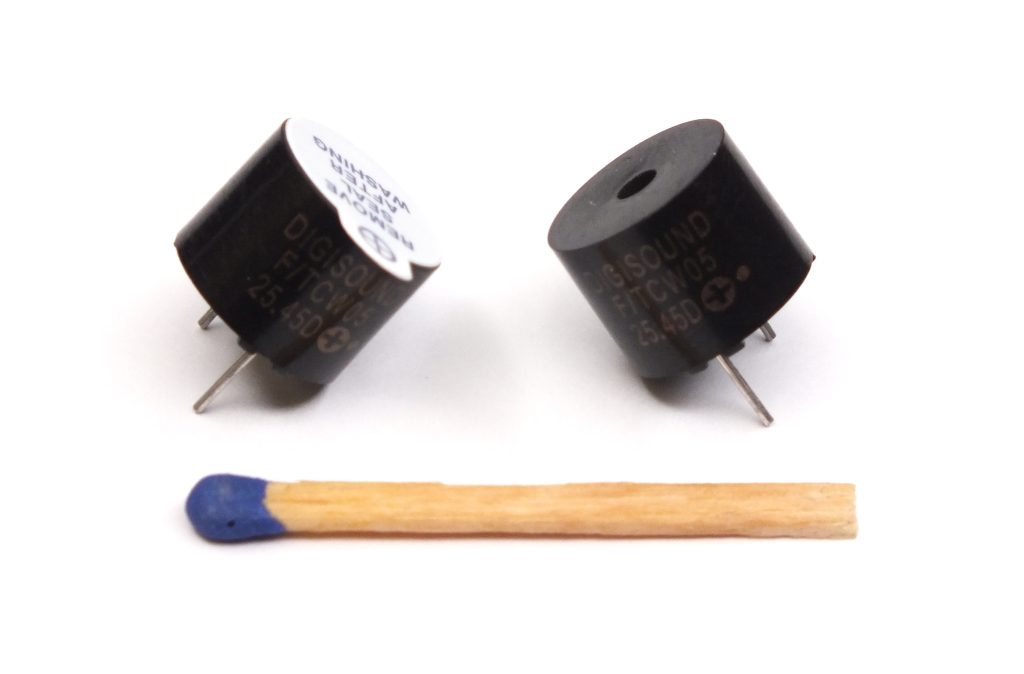

F/TCW 05 WITH LABEL

Technical Drawing

F/TCW 05 WITH LABEL

Dimension
Ø11.8 x 9.5 mm
Rated Voltage
5 VDC
Operating Voltage
3 - 7 VDC
Sound Pressure Level
≥88 dB(A) at 10 cm
Operating Temperature
-40 to +85 °C
Oscillator Frequency
2300 ±300 Hz
Pin Pitch
7,6
Information and specifications are subject to change. Site updates may be carried out with delay.
