F/DGX 12P WITH LABEL

Technical Drawing

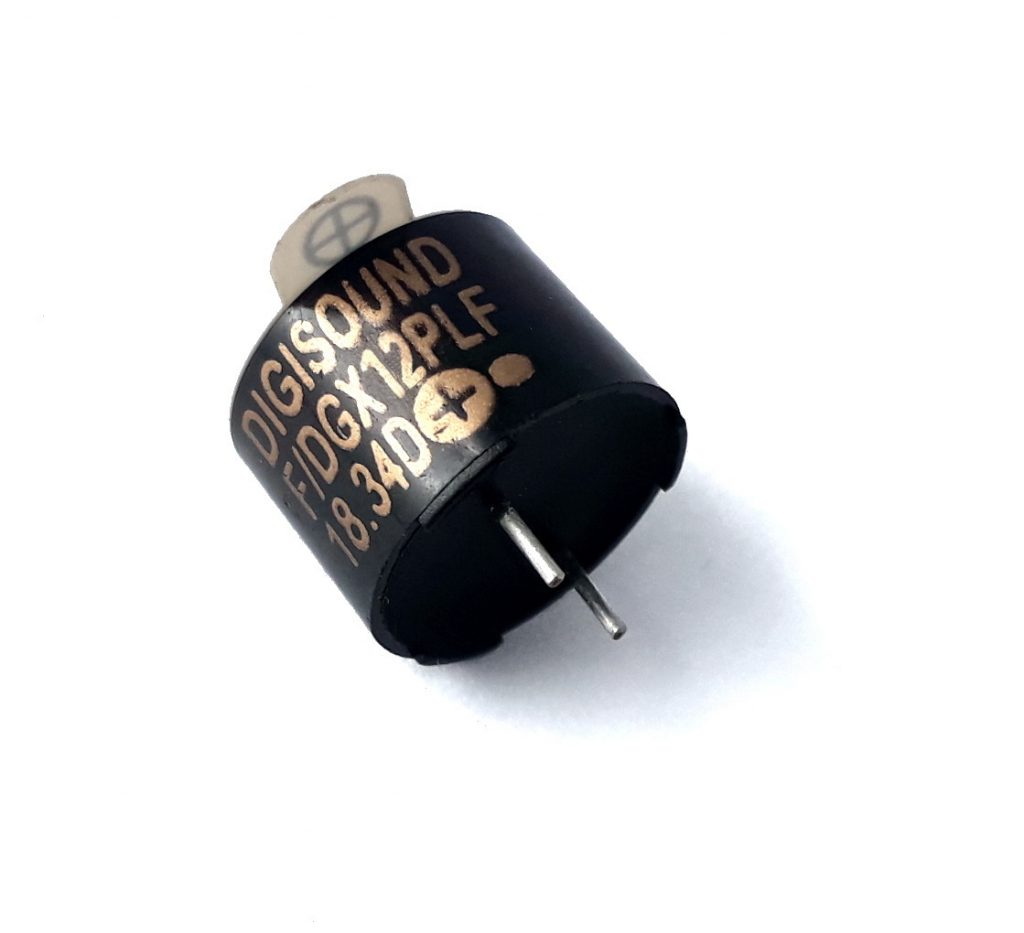

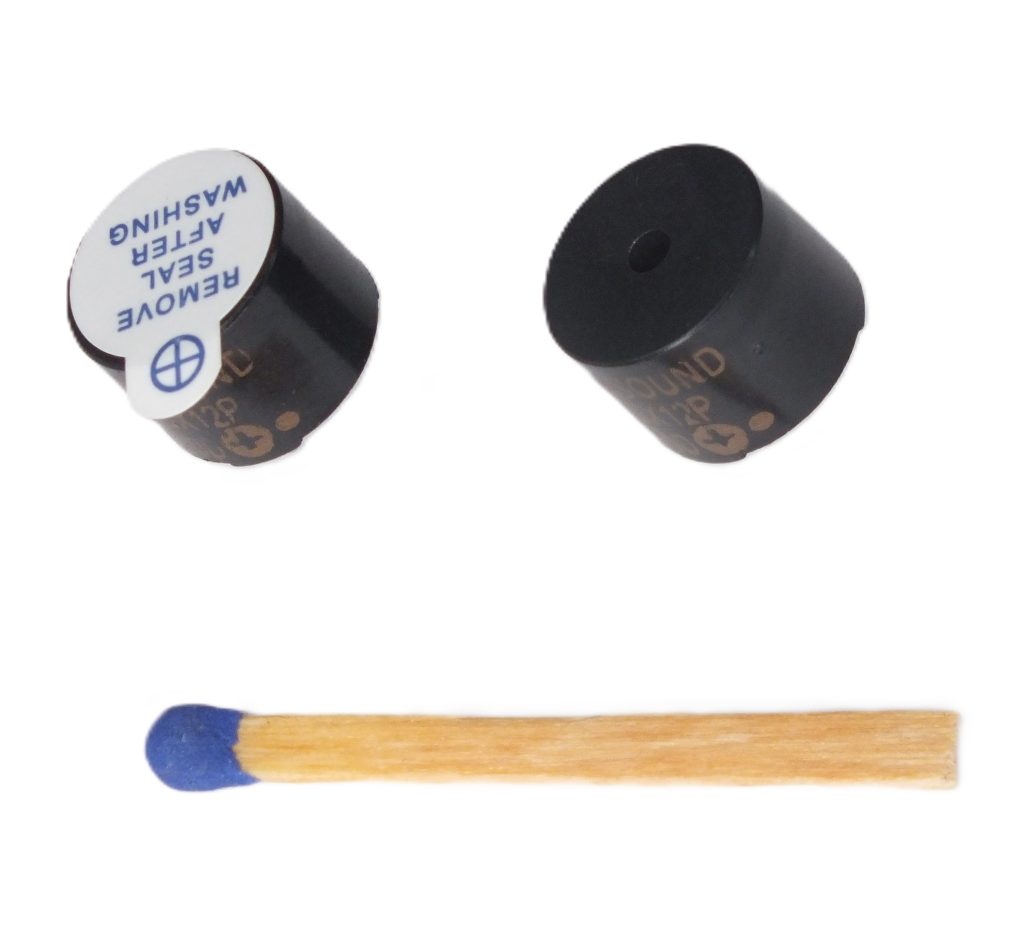

F/DGX 12P WITH LABEL

Dimension
Ø12 x 9 mm
Rated Voltage
12 Vo-p
Operating Voltage
7 - 16 Vo-p
Sound Pressure Level
≥90 dB(A) at 10 cm
Operating Temperature
-20 to +70 °C
Pin Pitch
6,5
Resistance
140 ±12 Ω
Resonance Frequency (F0)
2400 Hz
Information and specifications are subject to change. Site updates may be carried out with delay.
