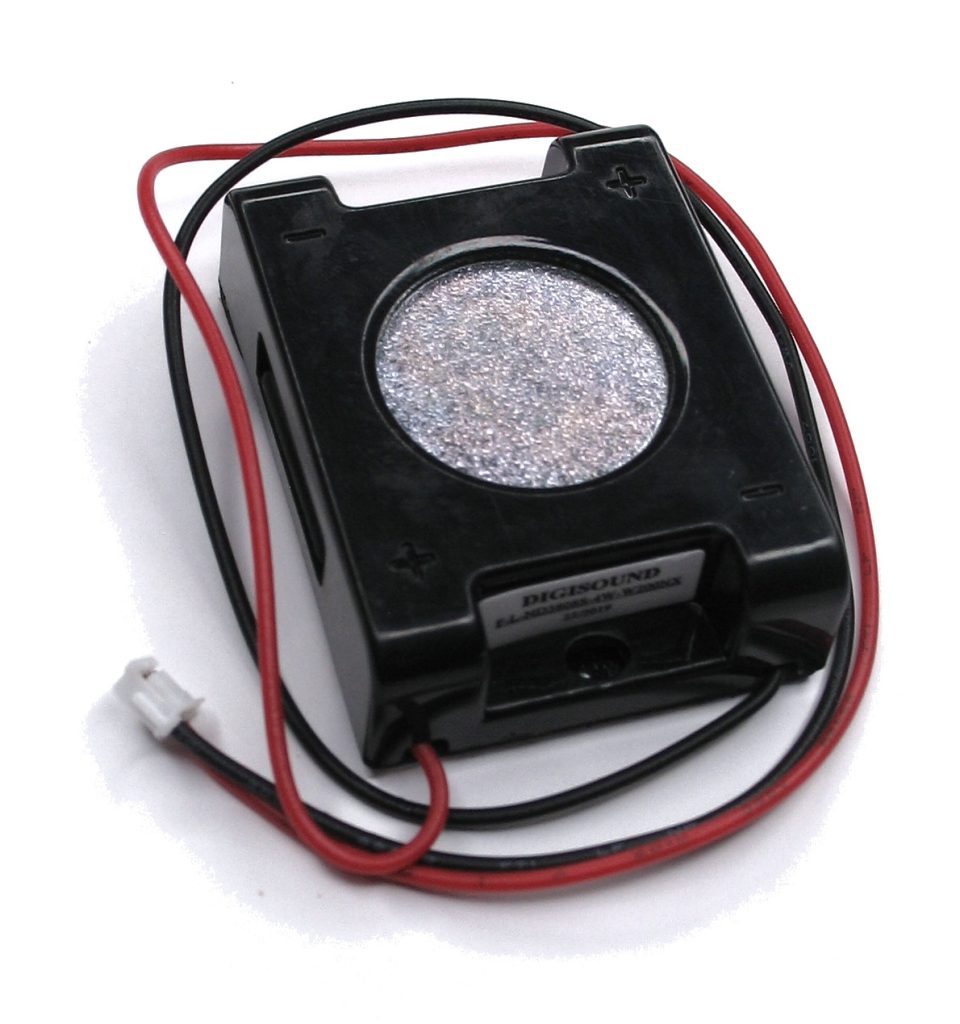

Exciter

F-L-ND3808S-4WW200NX

Dimension
42 x 32 x 13 mm

Sound Pressure Level
≥80 dB(A) at 0.1 W/ 0.1 m/ 1 kHz

Operating Temperature
-25 to +80 °C

Resonance Frequency (F0)
144 - 216 Hz Without baffle

Nominal Input Power
4 W

Max. Input Power
5 W (1 min on, 2 min off) cycling for 10 times

Impedance
8 ±15% Ω at 1 kHz

Frequency Range
F0 - 8 kHz
