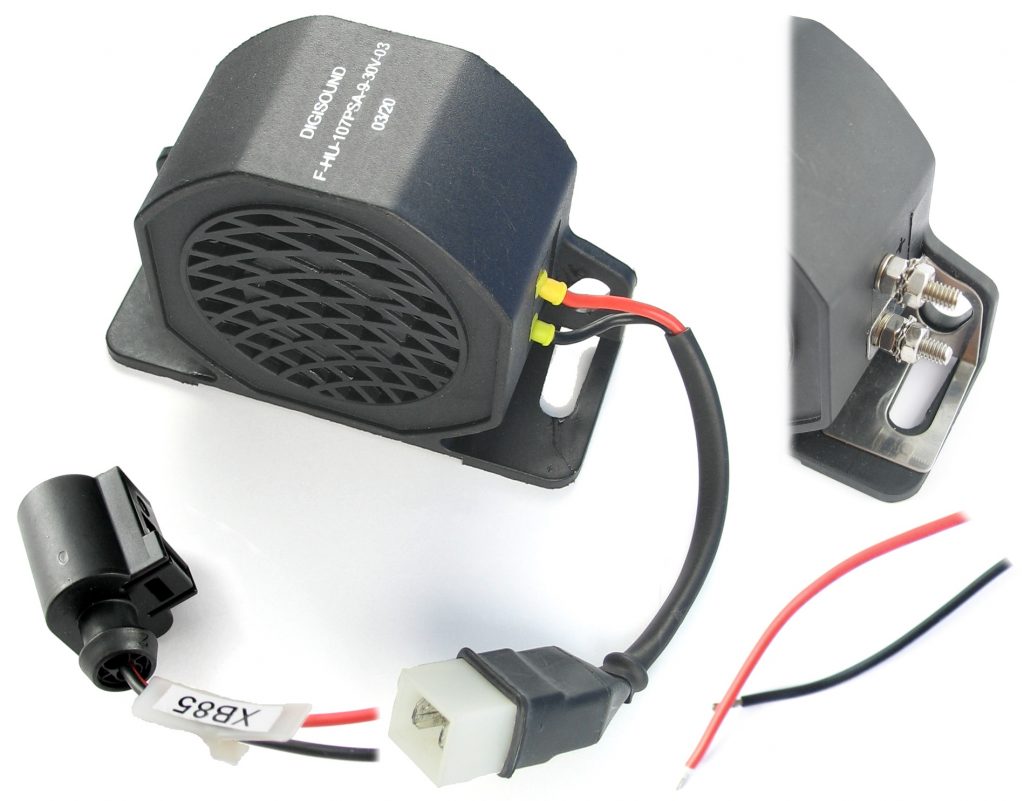

F-HU107PSA9-30V Series

Technical Drawing

F-HU107PSA9-30V Series

Dimension
34 x 100.9 x 68.4 mm
Rated Voltage
12/24 VDC
Operating Voltage
9 - 30 VDC
Sound Pressure Level
87 - 107 dB(A) ±3 at 1.2 m)
Tone
Pulse
Operating Temperature
-40 to +60 °C
IP Rating
IP66
Resonance Frequency (F0)
1250 ±300 Hz
Remark
Connector according to customer specification
Information and specifications are subject to change. Site updates may be carried out with delay.
