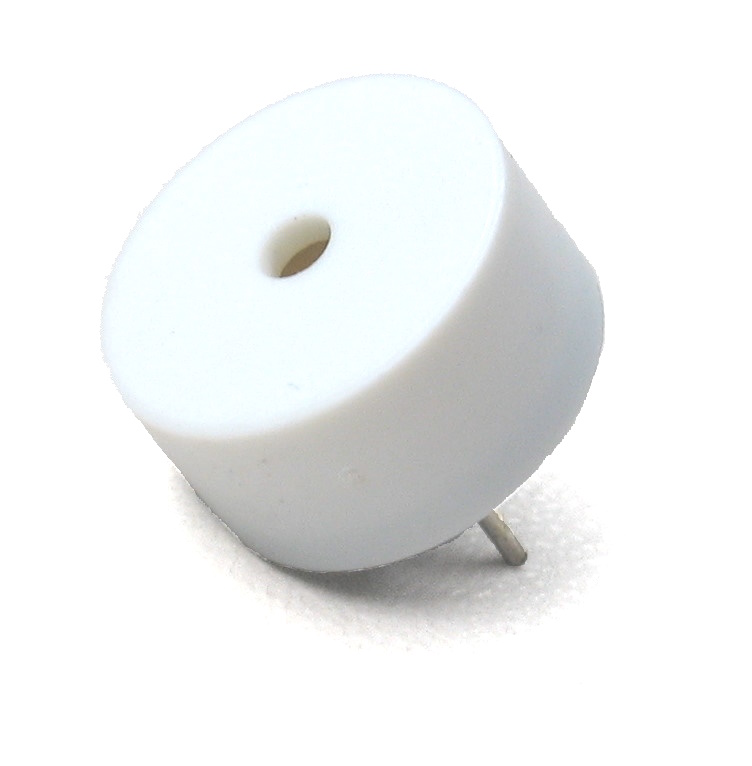

Piezo-THT-Buzzer without oscillator
Back
F/EM12P
Technical Drawing
F/EM12P
Dimension
Ø13.8 x 6.8 mm
Rated Voltage
5 Vpp
Sound Pressure Level
≥85 dB(A) at 10 cm
Operating Temperature
-20 to +70 °C
Pin Pitch
7,6
Resonance Frequency (F0)
4096 ±500 Hz
Max. Input Voltage
25 Vpp
Information and specifications are subject to change. Site updates may be carried out with delay.
