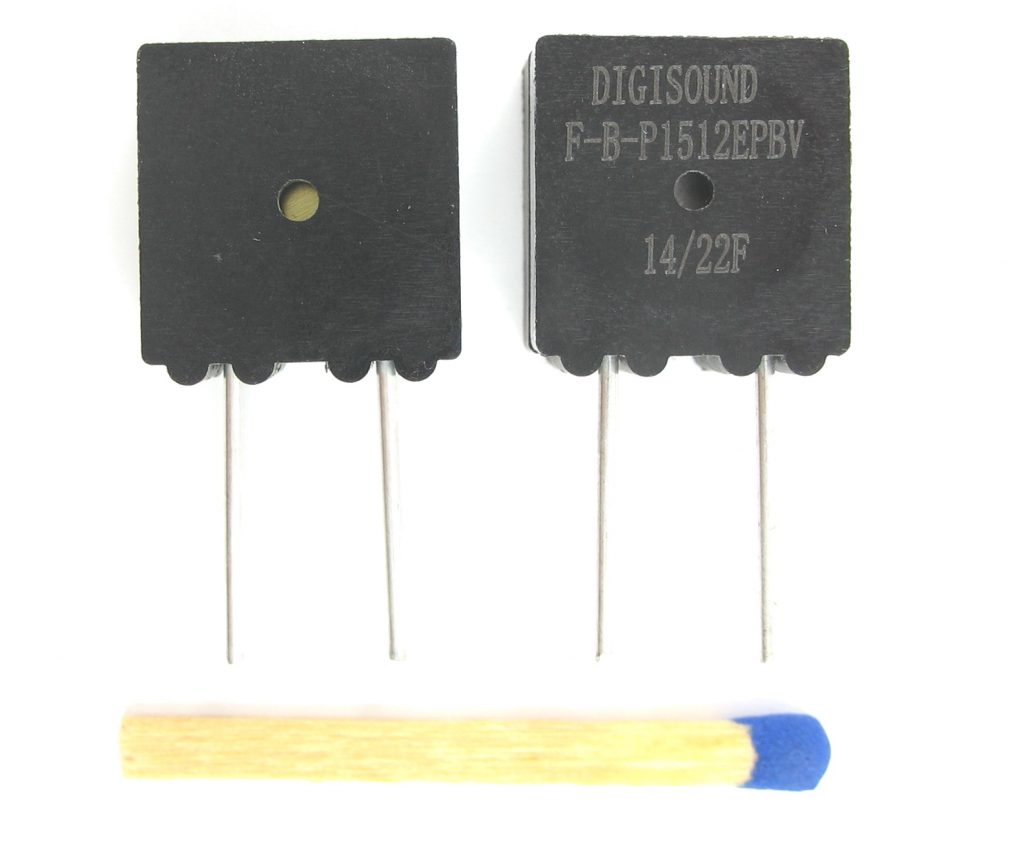

F-B-P1512EPBV

Technical Drawing

F-B-P1512EPBV

Dimension
15 x 15 x 8.5 mm
Rated Voltage
12 Vpp
Sound Pressure Level
≥70 dB(A) at 10 cm
Operating Temperature
-20 to +70 °C
Pin Pitch
7,6
Resonance Frequency (F0)
400 Hz
Max. Input Voltage
25 Vpp
Information and specifications are subject to change. Site updates may be carried out with delay.
