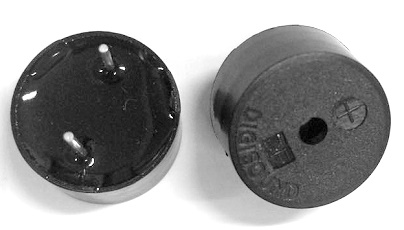

F-B-P1412IPL

Technical Drawing

F-B-P1412IPL

Dimension
Ø13.8 x 7.5 mm
Rated Voltage
12 VDC
Operating Voltage
3 - 16 VDC
Sound Pressure Level
≥90 dB(A) at 10 cm
Tone
Continuous Tone
Operating Temperature
-40 to +85 °C
Oscillator Frequency
4000 ±500 Hz
Pin Pitch
7,6
Remark
Replacement for F/CM 12PT
Information and specifications are subject to change. Site updates may be carried out with delay.
